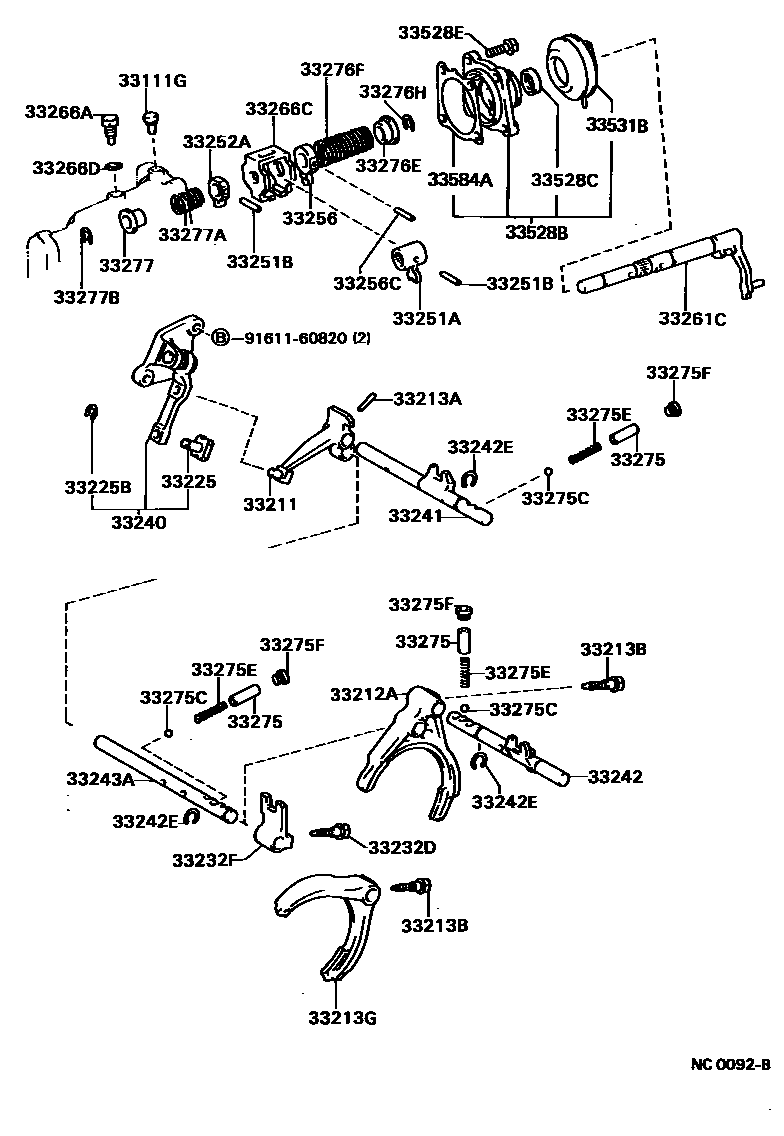

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33212AFORK, GEAR SHIFT, NO.1
sub33210-32H00
sub33210-32021
sub33210-32022
sub33210-32023
sub33212-10012
sub33212-10013
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
NO.3 FORK
NO.1 & NO.2 FORK
33225SHOE, SHIFT ARM
33225BRING, E(FOR SHIFT ARM SHOE)
33232DBOLT (FOR SHIFT HEAD SET)
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261CSHAFT, SHIFT & SELECT LEVER
33266ABOLT (FOR SHIFT INTERLOCK PLATE)
33266CPLATE, SHIFT INTERLOCK
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
33275CBALL (FOR SHIFT DETENT)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
sub33277-17010
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9161160820
main91611-60820
40 parts on this diagram · 5 diagrams in section
