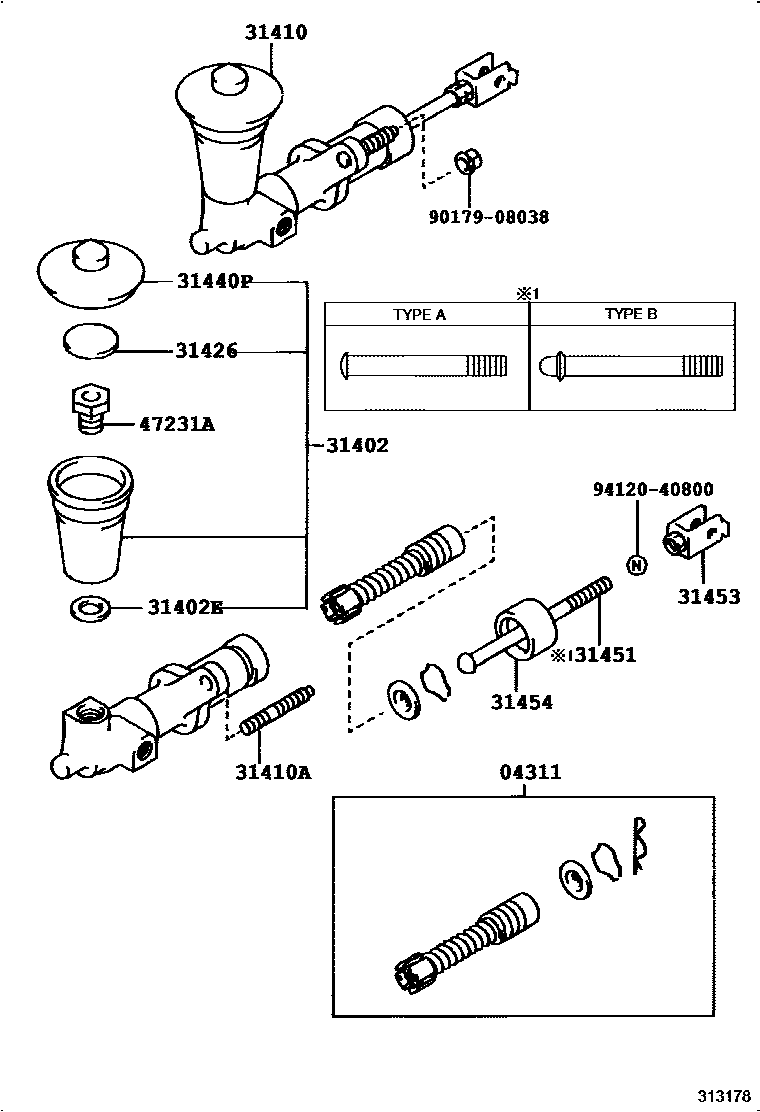

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12060iAE9#,CE90,EE90..(3D,4D,5D)..MTM198905-199205

sub04311-12080

main04311-22022iAE91..MTM..CBR;AE91..5F..FXZI;AE92,95,CE9#,EE9#..MTM198710-198806

sub04311-22050

main04311-22022iEE98..4F;AE9#,CE9#,EE90,96,97..MTM198705-198710

sub04311-22050

main04311-32030iAE9#,CE9#,EE9#..MTM198806-198905

main04311-32030iAE91,CE96,97,EE96,97,98..MTM..(CBR,DSL)198905-198908

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12020iAE9#,CE9#,EE9#..MTM198705-198908

main31402-12030iAE9#,EE90..(3D,4D,5D)..MTM198905-199205

main31402-12060iCE90..5F198905-199109

31402ERING(FOR CLUTCH MASTER CYLINDER RESERVOIR)

main90562-18151iAE91,CE96,97,EE96,97,98..MTM..(CBR,DSL)198705-198908

31410CYLINDER ASSY, CLUTCH MASTER

main31410-12190iAE91,92,EE9#..MTM198705-198806

sub31410-16023

main31410-12191iAE91,EE96,97,98..MTM..CBR198806-198908

sub31410-16023

main31410-12210iAE95,CE9#..5F198705-198806

sub31410-16023

main31410-12211iAE95,CE9#..5F198806-198908

sub31410-20441

main31410-12240iAE91,EE90..(3D,4D,5D)..MTM198905-199205

sub31410-12302

main31410-12290iCE90..5F198905-199109

sub31410-12312

main31410-12320iAE92,95..5F198905-199205

sub31410-12312

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iAE9#,CE9#,EE9#..MTM198705-199205

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAE9#,CE9#,EE9#..MTM198705-199205

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iAE9#,CE9#,EE9#..MTM198705-199205

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-12050iAE91,92,EE9#..MTM198806-198905

main31451-12050iAE91,EE96,97,98..MTM..CBR198905-198908

main31451-12070iAE95,CE9#..5F198806-198908

main31451-22070iAE95,CE9#..5F198705-198806

main31451-30120iAE91,92,EE9#..MTM198705-198806

main31451-35070iAE91,EE9#..MTM198905-199205

main31451-35080iAE92,95,CE90..5F198905-199205

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-12011iCE9#..5F198905-199109

sub31404-35030

main31404-12020iAE92,95..5F198905-199205

main31404-16011iAE95,CE9#..5F198705-198904

sub31404-16012

main31404-16012iAE95,CE9#..5F198904-198908

sub31404-22020

main31453-10020iAE91,EE9#..MTM198705-199205

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iAE9#..MTM199204-199205

main31454-24010iAE9#,CE9#,EE9#..MTM198705-199204

47231ABOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-20010iAE9#,CE9#,EE9#..MTM198705-198908

9017908038

main90179-08038

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
