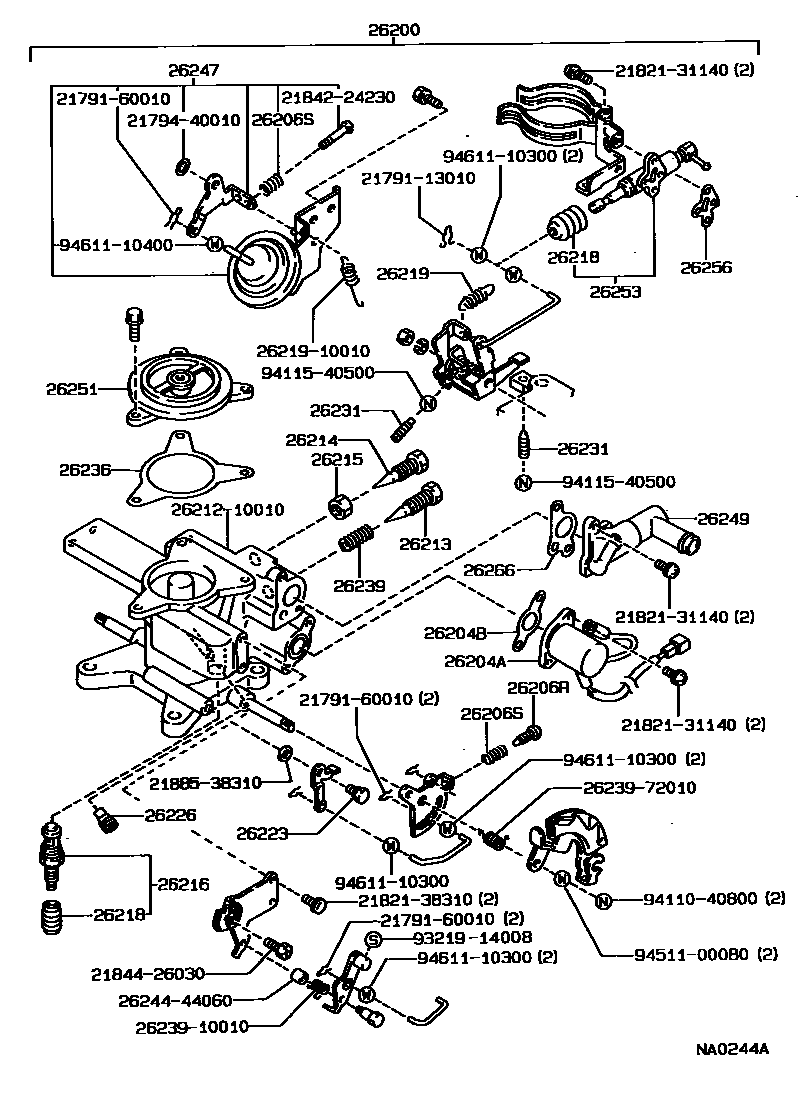

LPG CARBURETOR
26200CARBURETOR ASSY, LPG
26204AVALVE, THROTTLE SOLENOID(FOR LPG)
sub26208-41050
26204BGASKET, SOLENOID VALVE(FOR LPG)
26206RSCREW, THROTTLE ADJUST(FOR LPG)
26206SSPRING, IDLE ADJUST SCREW(FOR LPG)
26214SCREW, POWER ADJUST
26215NUT, POWER ADJUST
26218BOOT(FOR POWER VALVE)
26219SPRING, POWER VALVE
26223SCREW, SET(FOR POWER VALVE CAM)
26226JET, POWER
26231SCREW(FOR LPG CARBURETOR)
26236GASKET, AIR HORN
26239SPRING
26247DIAPHRAGM
26249UNION, FUEL HOSE(FOR LPG)
26251HORN, AIR
26253VALVE, CHANGE(FOR SLOW)
26256GASKET, CHANGE VALVE
26266GASKET, FUEL INLET UNION
2179113010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-13010
2179160010RING, SNAP, NO.1(FOR CARBURETOR LINK)
main21791-60010
2179440010RING, RETAINER, NO.1(FOR THROTTLE SHAFT)
main21794-40010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
2184224230SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
main21842-24230
2184426030SCREW, CHOKE LEVER
main21844-26030
2188538310
main21885-38310
2621210010
main26212-10010
2621910010SPRING, POWER VALVE
main26219-10010
2623910010SPRING
main26239-10010
2623972010SPRING
main26239-72010
2624444060COLLAR(FOR LPG CARBURETOR)
main26244-44060
9321914008
main93219-14008
9411040800
main94110-40800
9411540500
main94115-40500
9451100080
main94511-00080
9461110300
main94611-10300
9461110400
main94611-10400
41 parts on this diagram · 2 diagrams in section
