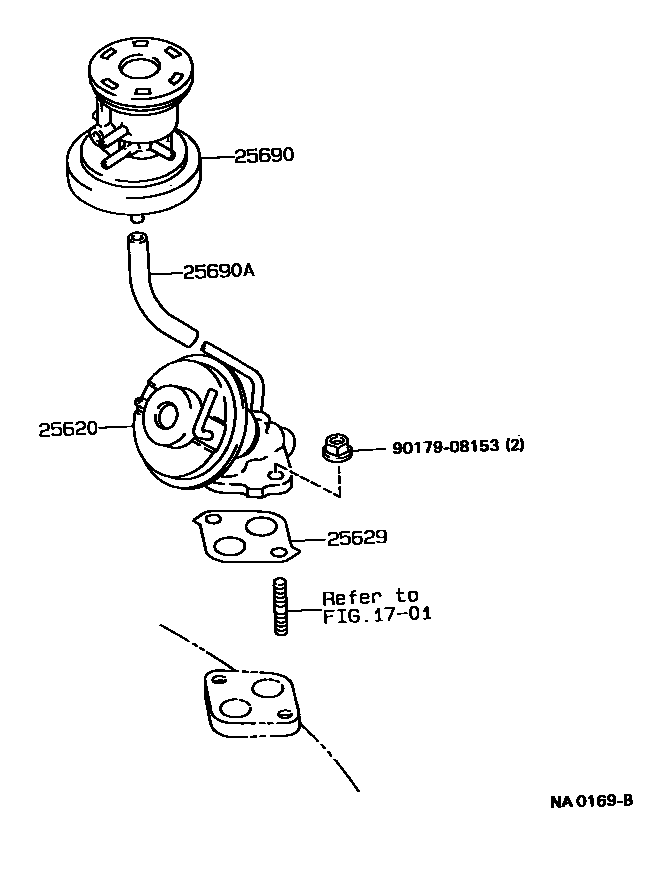

EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1

1701

25620VALVE ASSY, EGR

main25620-11050i2E..EE96¥20,100198708-198908

main25620-11070i3E..EE98..MTM¥20,100198708-198908

main25620-11110i3E..EE98..3FC¥19,700198710-198908

main25620-15320i4AF,5AF..AE91,95¥20,100198705-198908

main25620-15340i5AFE..AE91¥19,500198905-199205

main25620-16150i4AFE..AE95..4FC¥20,100198905-199106

main25620-64040i1C..CE90,97..4FC¥20,100198705-199106

25629GASKET, EGR VALVE ADAPTER

main25627-16020i4AF,5AF..AE91,95¥350198812-199205

main25627-16030i4AFE..AE95..4FC¥370198905-198912

sub25627-16031¥350

main25627-16031i4AFE..AE95..4FC¥350198912-199106

main25629-15020i4AF,5AF..AE91,95¥350198705-198812

sub25627-16020¥350

25690MODULATOR ASSY, EGR VACUUM

main25870-11020i2E,3E..EE96,98¥7,500198708-198908

main25870-15200i5AF..AE91¥11,800198705-198908

main25870-15230i5AFE..AE91¥7,500198905-199205

main25870-16050i4AF..AE95¥7,600198710-198711

main25870-16180i4AFE..AE95..4FC¥7,500198905-199106

main25870-16200i4AF..AE95¥7,600198711-198905

25690AHOSE(FOR EGR VACUUM MODULATOR)

main25695-16030i4AFE..AE95..4FC¥1,160198905-199106

main25695-16050i5AFE..AE91¥740198905-199205

main90445-11017i4AF,5AF..AE91,95¥260198705-198908

main90445-11080i2E,3E..EE96,98¥1,670198708-198908

9017908153

main90179-08153¥90

6 parts on this diagram · 5 diagrams in section
