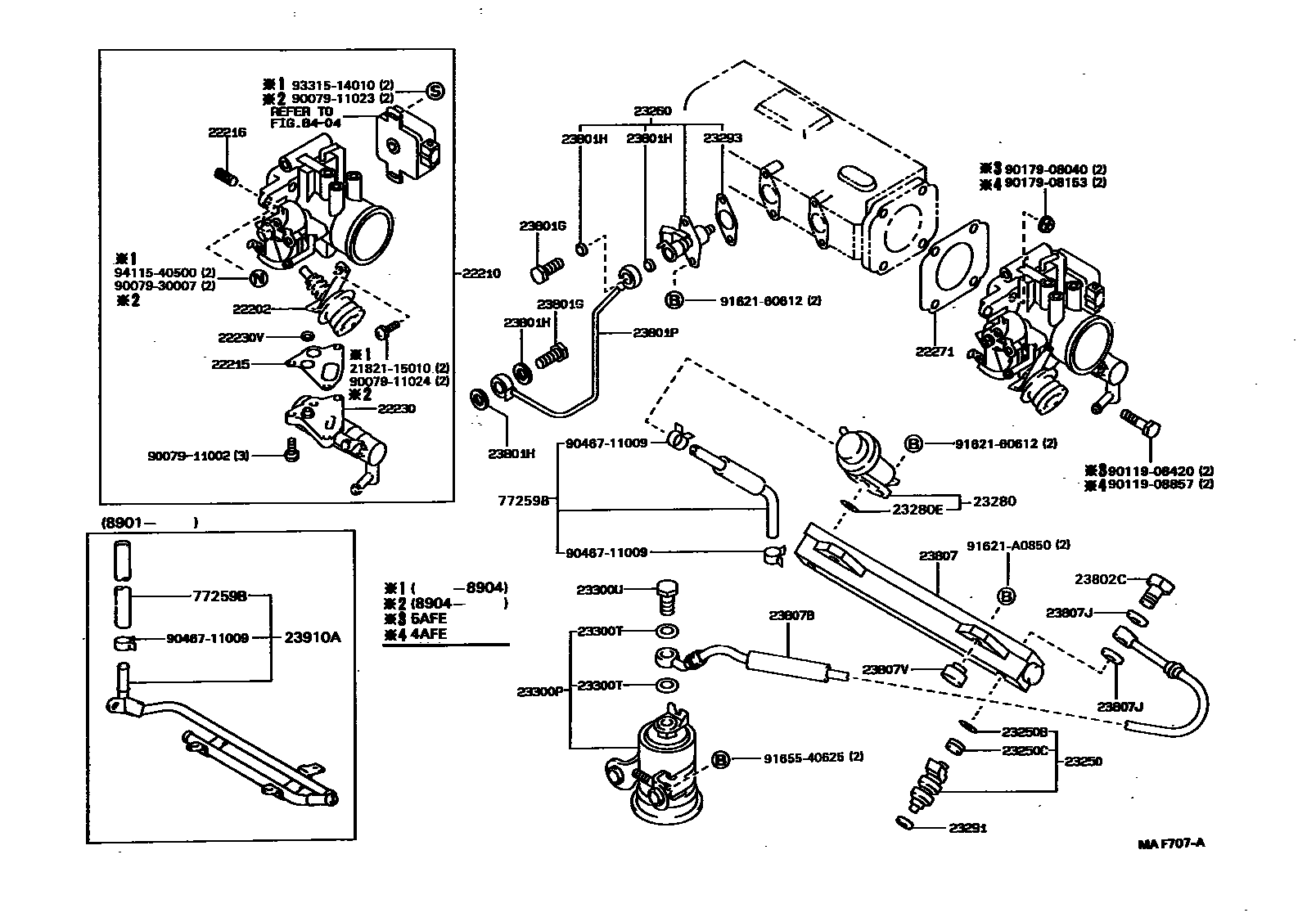

FUEL INJECTION SYSTEM

0001 1 0003 1 0004 1 0005 1

22202DASH POT SUB-ASSY

main22202-15010i5AFE..AE91..5F198705-199106

main22202-15020i5AFE..AE91..4FC198705-199106

main22202-15030i5AFE,5AFHE..AE91..MTM198905-199205

main22202-15040i5AFE,5AFHE..AE91..ATM198905-199205

22210BODY ASSY, THROTTLE

main22210-15010i5AFE..AE91..5F198705-198905

main22210-15020i5AFE..AE91..4FC198705-198905

main22210-15030i5AFE..AE91..MTM198905-199205

main22210-15040i5AFE..AE91..ATM198905-199205

main22210-15050i5AFHE..AE91..5F198905-199205

main22210-15060i5AFHE..AE91..4FC198905-199205

main22210-16190i4AGE..AE92198705-198905

main22210-16250i4AFE..AE95..5F198905-199106

main22210-16260i4AFE..AE95..4FC198905-199106

main22210-16450i4AGE..AE92198905-198911

main22210-16560i4AGE..AE92198911-199205

sub22210-16450

22215GASKET, THROTTLE BODY COVER

main22215-15010i5AFE..AE91198705-199004

sub22215-15011

main22215-15011i4AFE..AE95199004-199106

22216SCREW, DASH POT ADJUSTING

main22216-74010i4AFE,5AFHE,5AFE..AE91,95198705-199205

22230VALVE ASSY, AUXILIARY AIR

main22230-15010i5AFE..AE91..5F198705-198905

main22230-15020i5AFE..AE91..4FC198705-198905

main22230-16110i4AGE..AE92198705-198905

main22230-16120i4AFE..AE95..5F198905-199106

main22230-16130i4AFE..AE95..4FC198905-199106

main22230-16220i4AGE..AE92198905-198909

sub22230-16230

main22230-16230i4AGE..AE92198909-199205

22230VRING, O(FOR AUXILIARY AIR VALVE)

main96711-19009i4AGE,5AFE..AE91,92198705-199205

22271GASKET, THROTTLE BODY

main22271-15010i4AFE,5AFHE,5AFE..AE91,95198705-198912

sub22271-15011

main22271-15011i4AFE,5AF#..AE91,95198912-199205

main22271-16020i4AGE..AE92198705-199205

23250INJECTOR ASSY, FUEL

main23209-15010i5AFE,5AFHE..AE91198705-199205

main23209-16070i4AGE..AE92198705-198905

main23209-16100i4AFE..AE95198905-199106

main23209-16110i4AGE..AE92198905-199205

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i4A#,5AFE,5AFHE..AE9#198705-199205

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i4AGE,5AFE..AE91,92198705-199205

23260INJECTOR ASSY, COLD START FUEL

main23260-19085i5AFE..AE91198705-198905

sub23260-19086

main23260-19095i4AGE..AE92198705-198905

main23260-19105i4AFE..AE95198905-198912

sub23260-19106

main23260-19106i4AFE..AE95198912-199106

main23260-19115i4AGE..AE92198905-199205

23280REGULATOR ASSY, FUEL PRESSURE

main23280-15010i5AFE..AE91198705-198901

sub23280-16120

main23280-16080i4AGE..AE92198705-199205

main23280-16120i4AFE,5AFHE,5AFE..AE91,95198901-199205

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i4AGE,4AFE,5AFE,5AFHE..AE9#198705-199205

23291INSULATOR, INJECTOR VIBRATION

main23291-16020i4AGE..AE92198905-199205

main23291-41010i4AGE,5AFE..AE91,92198705-199205

23293GASKET, COLD START INJECTOR

main23293-16010i4AGE..AE92198705-199201

sub23293-16020

main23293-16020i4AGE..AE92199201-199205

main23293-62020i4AFE..AE95198912-199106

main23293-74010i4AFE..AE95198705-198912

sub23293-42010

23300PFILTER, FUEL(FOR EFI)

main23300-19145i4AGE,4AFE,5AFE,5AFHE..AE9#198705-199205

23300TGASKET(FOR FUEL FILTER)

main90430-12005i4AGE,4AFE,5AFE,5AFHE..AE9#198705-199107

main90430-12026i4AGE,5AF#..AE9#199107-199205

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i4AGE,4AFE,5AFE,5AFHE..AE9#198705-199205

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-08003i4AGE,5AFE..AE91,92198705-199205

23801HGASKET(FOR FUEL PIPE)

main90430-08005i4A#..AE92,95198705-199106

main90430-08012i4AGE..AE92199009-199205

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-15050i5AFE..AE91198705-198905

main23801-16030i4AFE..AE95198905-199106

main23901-16070i4AGE..AE92198705-199205

main23902-16070i4AGE..AE92198803-198905

main23902-16080i4AGE..AE92198705-198803

main23902-16170i4AGE..AE92198905-198912

main23902-16180i4AGE..AE92198912-199205

23802CBOLT, UNION(FOR FUEL PIPE NO.2)

main90401-12097i4AFE,5AFHE,5AFE..AE91,95198705-199205

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-15010i5AFE..AE91198705-198904

sub23807-15011

main23807-16050i4AGE..AE92198705-198905

sub23807-16060

main23807-16070i5AFE..AE91198904-199106

sub23807-15011

main23807-16090i4AGE..AE92198905-199205

sub23807-16091

main23814-15030i5AFE,5AFHE..AE91198905-199205

sub23814-15031

23807BHOSE, FUEL DELIVERY PIPE

main23271-15200i5AFE..AE91198705-198803

sub23271-16080

main23271-15250i5AFE,5AFHE..AE91198905-199205

main23271-16080i4AFE..AE95198803-199106

23807JGASKET, PIPE FUEL DELIVARY INLET

main90201-12109i4AGE,5AFE..AE91,92198705-199109

main90430-12026i4AGE,5AF#..AE9#199009-199205

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90561-08009i4AGE..AE92198705-199205

main90561-08021i4AFE,5AFHE,5AFE..AE91,95198705-199205

23910ATUBE SUB-ASSY, FUEL

main23901-16100i5AFE..AE91198901-199201

sub23901-16101

77259BHOSE, FUEL

main77259-12110iAE91..EFI198705-198901

main95333-06020iAE91..EFI198901-199106

sub95337-06020

8404

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

9007911002

main90079-11002

9007911023

main90079-11023

9007911024

main90079-11024

9007930007

main90079-30007

9011908420

main90119-08420

9011908857

main90119-08857

9017908040

main90179-08040

9017908153

main90179-08153

9046711009

main90467-11009

9162160612

main91621-60612

91621A0850

main91621-A0850

9165540625

main91655-40625

9331514010

main93315-14010

9411540500

main94115-40500

44 parts on this diagram · 4 diagrams in section
