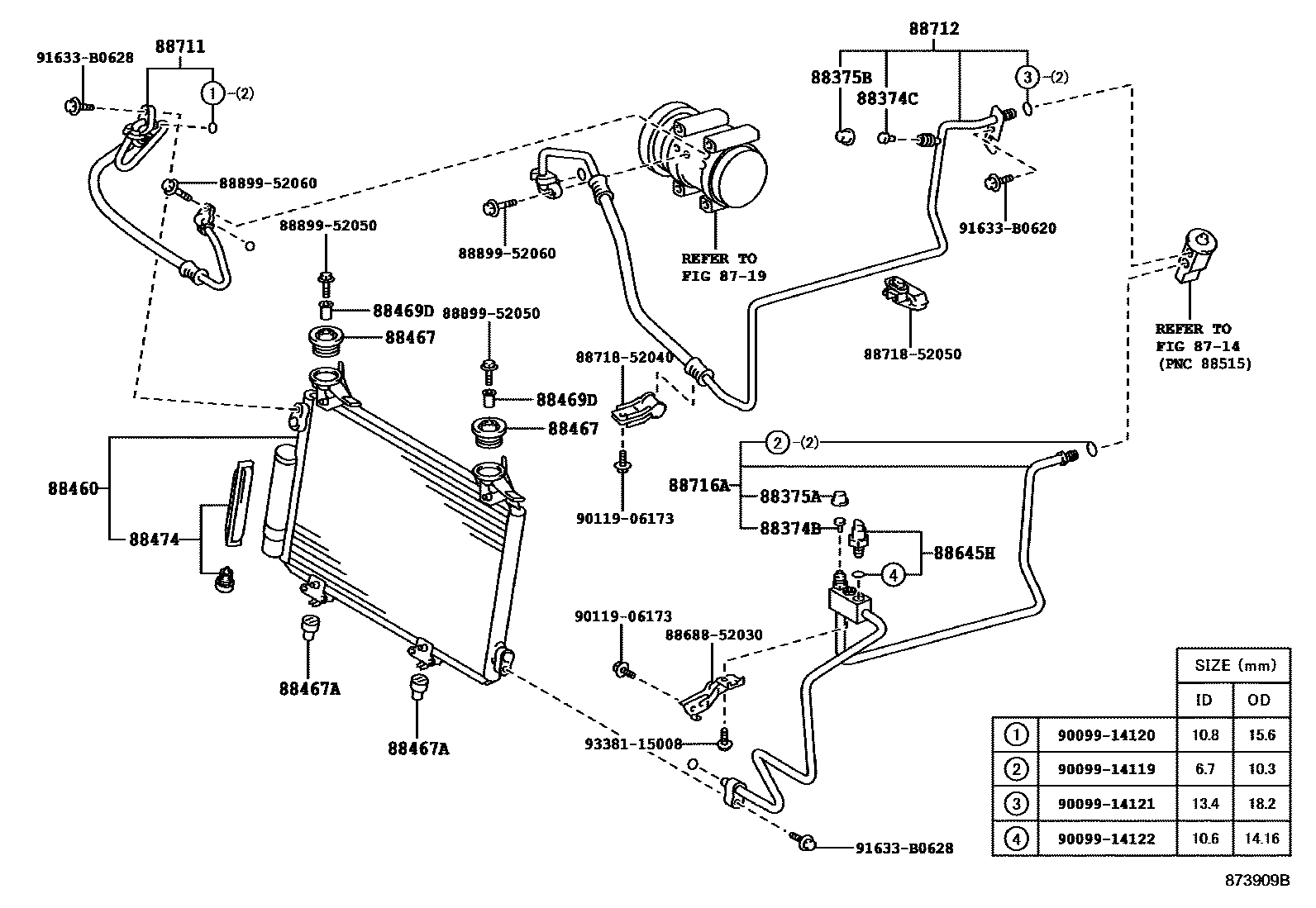

HEATING & AIR CONDITIONING - COOLER PIPING

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iNCP19200001

88374CVALVE, SERVICE, NO.2

main88374-30010iNCP19200001

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iNCP19200001

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNCP19200001

88460CONDENSER ASSY, COOLER

main88460-52010iNCP19200001

88467CUSHION, COOLER CONDENSER, NO.1

main88467-52010iNCP19200001

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-52020iNCP19200001

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iNCP19200001

88474DRYER, COOLER

main88474-47010iNCP19200001

88645HSWITCH, PRESSURE NO.1

main88645-60030iNCP19200001

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-52020iNCP19200001-200008

sub88711-52021

main88711-52021iNCP19200008

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-52030iNCP19200001

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-52040iNCP19200001

8868852030BRACKET, COOLER DIAPHRAGM

main88688-52030

8871852040PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52040

8871852050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-52050

8889952050COVER, EVAPORATOR

main88899-52050

8889952060COVER, EVAPORATOR

main88899-52060

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9011906173

main90119-06173

91633B0620

main91633-B0620

91633B0628

main91633-B0628

9338115008

main93381-15008

28 parts on this diagram · 1 diagram in section
