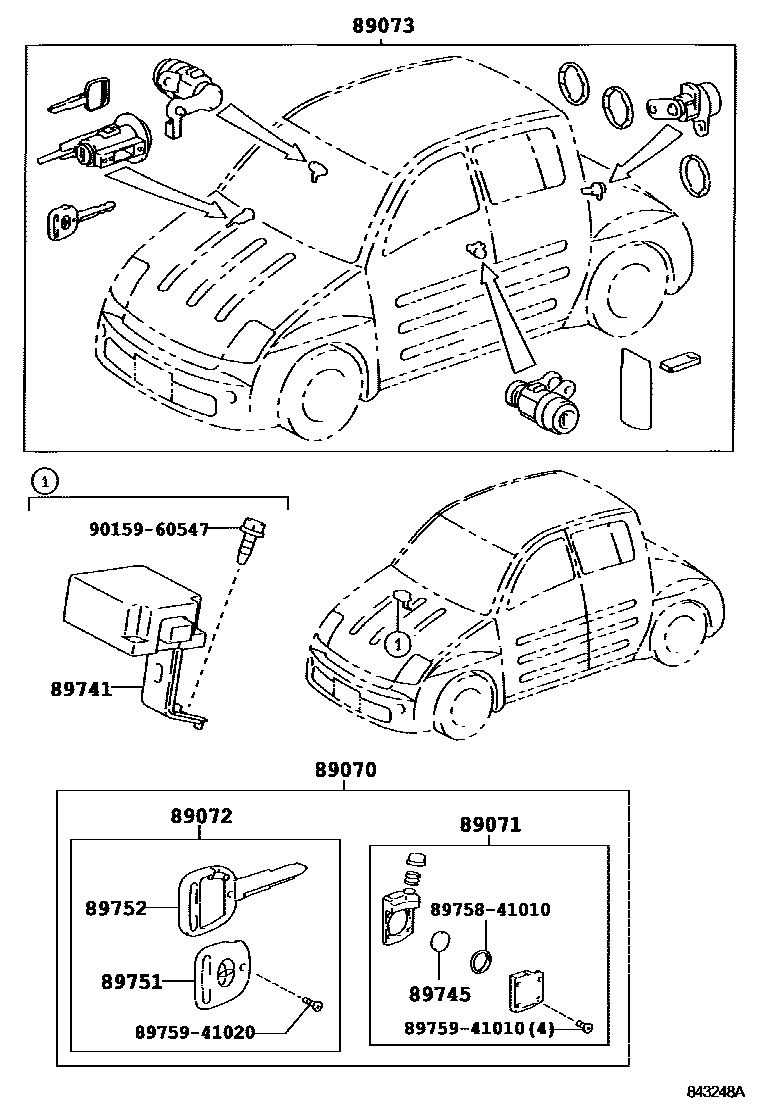

WIRELESS DOOR LOCK

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-52220iNCP19200001

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-52010iNCP19200001

89072HOUSING SET, DOOR CONTROL TRANSMITTER

main89072-52220iNCP19200001

sub04873-52020

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-52340iNCP19200001

89741RECEIVER, DOOR CONTROL

main89741-52010iNCP19200001

89745BATTERY, TRANSMITTER

main89745-41010iNCP19200001

89751COVER, TRANSMITTER HOUSING

main89751-52260iNCP19200001

89752CASE, TRANSMITTER HOUSING

main89752-52250iNCP19200001

8975841010PACKING, DOOR CONTROL TRANSMITTER

main89758-41010

8975941010SCREW, DOOR CONTROL TRANSMITTER

main89759-41010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9015960547

main90159-60547

12 parts on this diagram · 1 diagram in section
