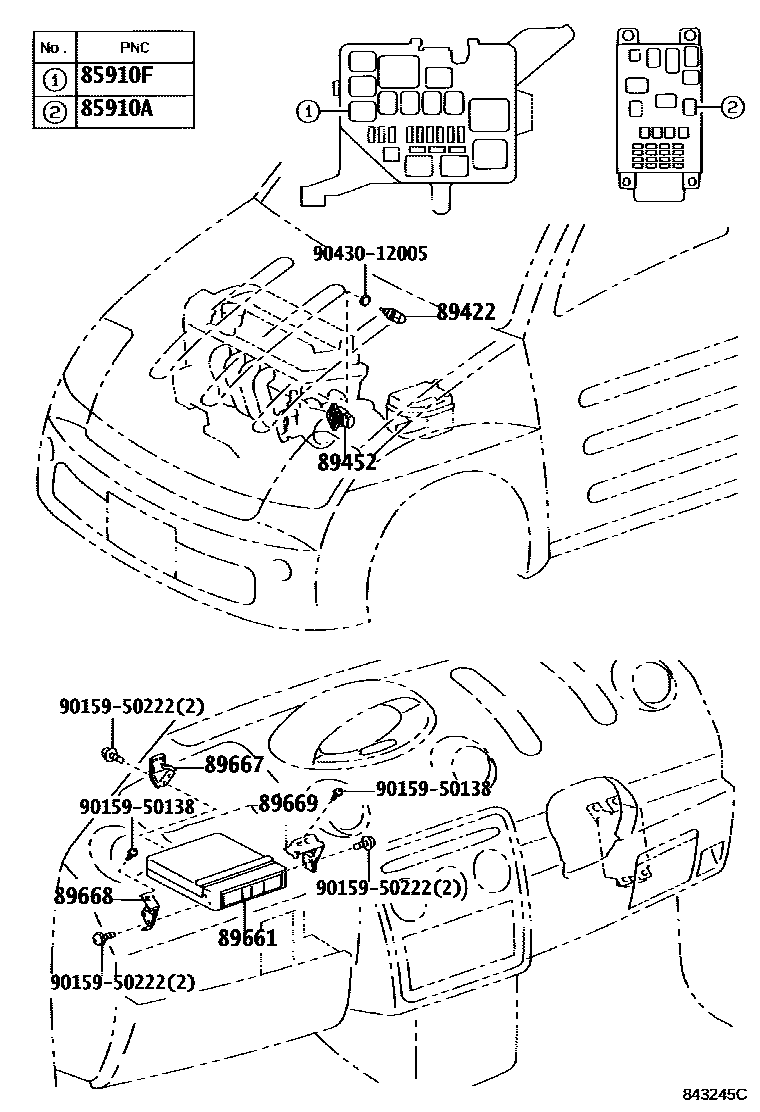

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNCP19200001

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iNCP19200001

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP19200001

main89422-22030iNCP19200001

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP19200001

89661COMPUTER, ENGINE CONTROL

main89661-52360iNCP19200001-200008

main89661-52361iNCP19200008

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52010iNCP19200001

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52010iNCP19200001

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52010iNCP19200001

9015950138

main90159-50138

9015950222

main90159-50222

9043012005

main90430-12005

11 parts on this diagram · 1 diagram in section
