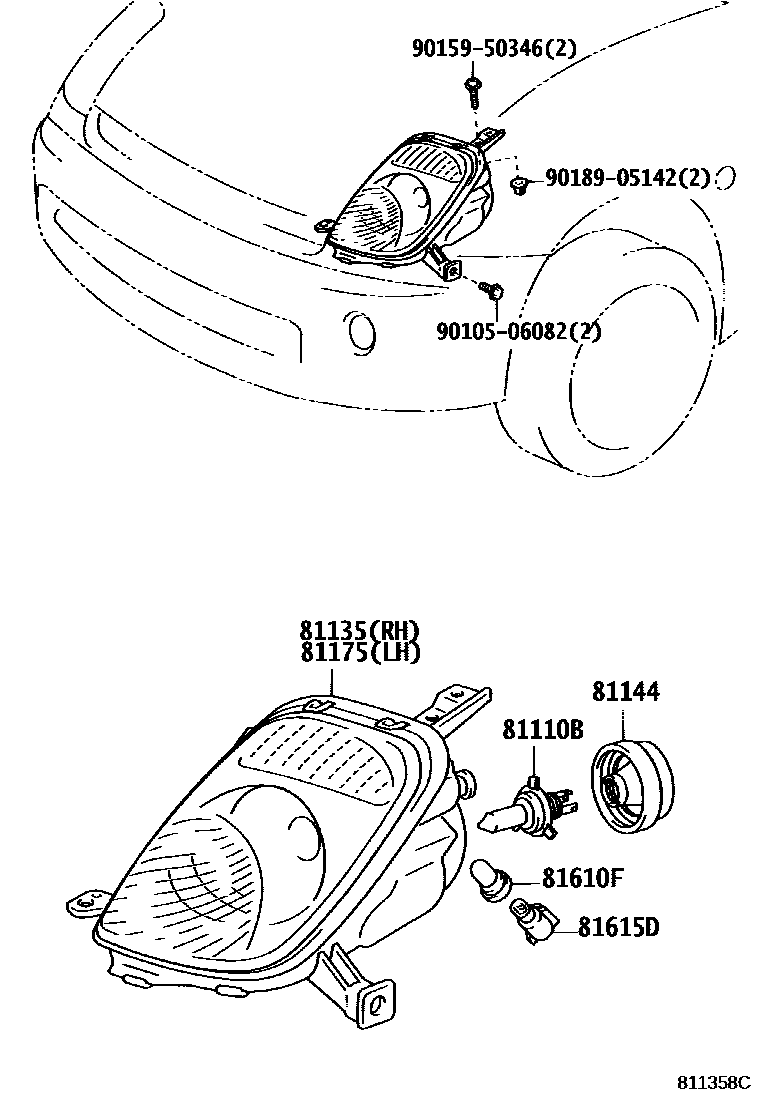

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-22004iNCP19200001

sub90981-13055

81135UNIT ASSY, HEADLAMP, RH

main81130-52200iNCP19200001

81144COVER, HEADLAMP, NO.1

main90075-65002iNCP19200001

81175UNIT ASSY, HEADLAMP, LH

main81170-52200iNCP19200001

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iNCP19200001

81615DSOCKET, CLEARANCE LAMP

main99159-10228iNCP19200001

9010506082

main90105-06082

9015950346

main90159-50346

9018905142

main90189-05142

9 parts on this diagram · 1 diagram in section
