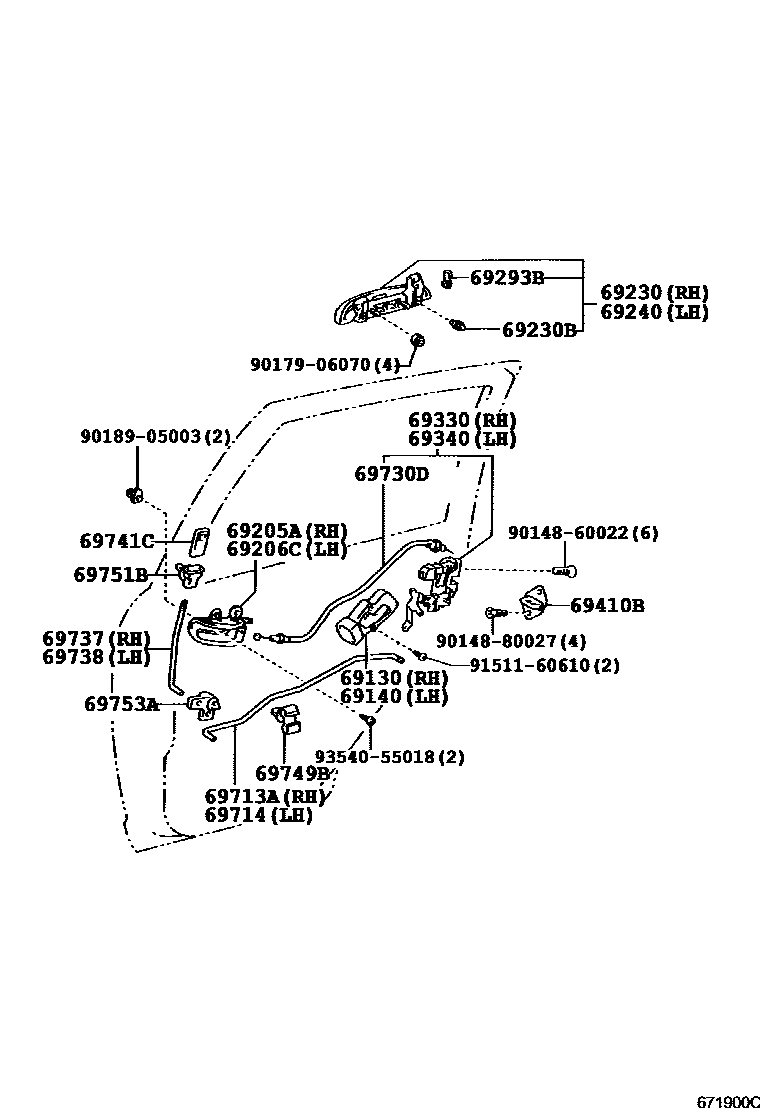

REAR DOOR LOCK & HANDLE
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
sub69210-52040
sub69210-52040
sub69210-52040
sub69210-52040
sub69210-52040
sub69210-52040
sub69210-52040
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
sub69220-52040
sub69220-52040
sub69220-52040
sub69220-52040
sub69220-52040
sub69220-52040
sub69220-52040
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69737LINK, REAR DOOR INSIDE LOCKING, RH
69738LINK, REAR DOOR INSIDE LOCKING, LH
69741CKNOB, REAR DOOR LOCK CONTROL
69749BCLAMP, REAR DOOR LOCK LINK
69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)
69753ABELLCRANK, DOOR LOCK CONTROL
9014860022
main90148-60022
9014880027
main90148-80027
9017906070
main90179-06070
9018905003
main90189-05003
9151160610
main91511-60610
9354055018
main93540-55018
26 parts on this diagram · 1 diagram in section
