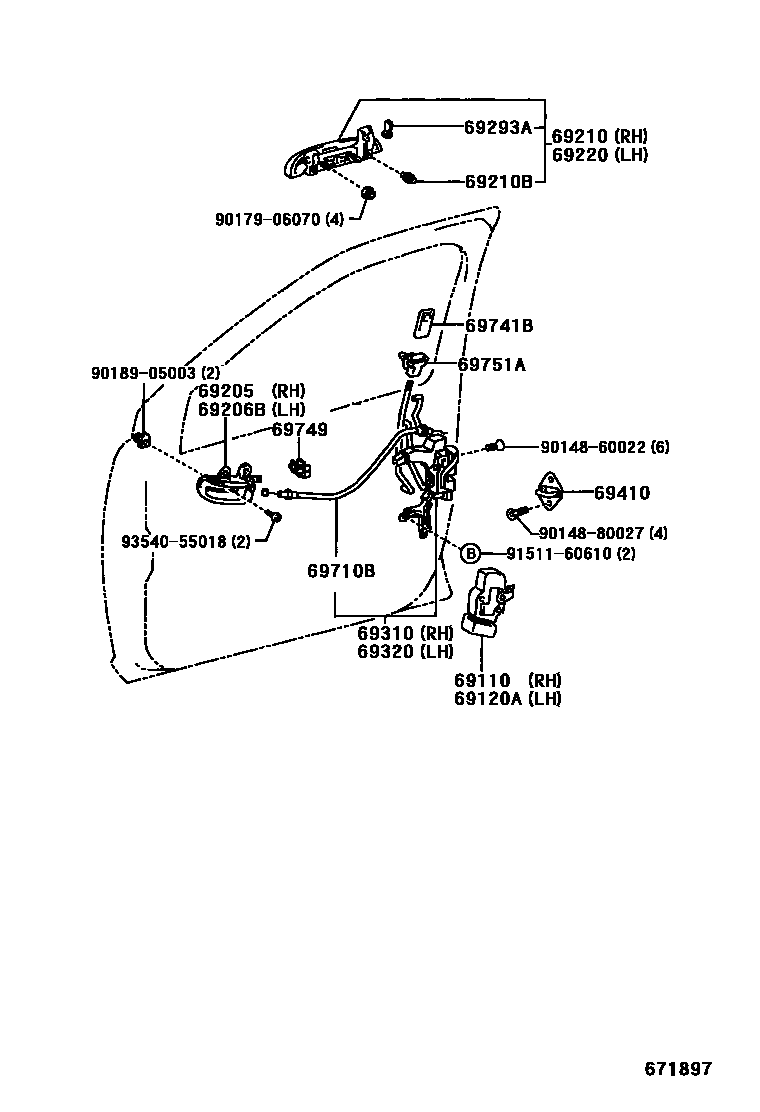

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-52020iNCP19200001

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-52020iNCP19200001

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-52010-C0iNCP19200008-200108

BLACK,TRIM2#

sub69205-52010

main69205-52010-E0iNCP19200001

TERRCOTTA,TRIM4#

sub69205-52010

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-52010-C0iNCP19200008-200108

BLACK,TRIM2#

sub69206-52010

main69206-52010-E0iNCP19200001

TERRCOTTA,TRIM4#

sub69206-52010

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-52040-A0iNCP19200012-200101

sub69210-52040

main69210-52040-A0iNCP19200001

SUPER WHITE 2,040

sub69210-52040

main69210-52040-A1iNCP19200110-200112

sub69210-52040

main69210-52040-A1iNCP19200101

VANILLA WHITE,067

sub69210-52040

main69210-52040-A2iNCP19200101

COOL WHITE,069

sub69210-52040

main69210-52040-A4iNCP19200108-200112

sub69210-52040

main69210-52040-B1iNCP19200001

SILVER ME.,1C0

sub69210-52040

main69210-52040-C1iNCP19200001

BLACK,202

sub69210-52040

main69210-52040-D2iNCP19200110-200112

sub69210-52040

main69210-52040-D2iNCP19200002-200008

PALE ROSE ME. OP,3N7

sub69210-52040

main69210-52040-D3iNCP19200008

BORDAEUX MC.,3P2

sub69210-52040

main69210-52040-D3iNCP19200110-200112

sub69210-52040

main69210-52040-D4iNCP19200108-200109

sub69210-52040

main69210-52040-F2iNCP19200008

GOLD ME.,581

sub69210-52040

main69210-52040-G2iNCP19200002-200008

YELLOW GREEN ME. OP,6Q9

sub69210-52040

main69210-52040-G3iNCP19200008

DK.GREEN MC.,6Q7

sub69210-52040

main69210-52040-J1iNCP19200002-200008

BLUE ME.,8N0

sub69210-52040

main69210-52040-J2iNCP19200108-200109

sub69210-52040

main69210-52040-K0iNCP19200101

LAVENDER,947

sub69210-52040

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04028iNCP19200001

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-52040-A0iNCP19200001

SUPER WHITE 2,040

sub69220-52040

main69220-52040-A0iNCP19200012-200101

sub69220-52040

main69220-52040-A1iNCP19200110-200112

sub69220-52040

main69220-52040-A1iNCP19200101

VANILLA WHITE,067

sub69220-52040

main69220-52040-A2iNCP19200101

COOL WHITE,069

sub69220-52040

main69220-52040-A4iNCP19200108-200112

sub69220-52040

main69220-52040-B1iNCP19200001

SILVER ME.,1C0

sub69220-52040

main69220-52040-C1iNCP19200001

BLACK,202

sub69220-52040

main69220-52040-D2iNCP19200110-200112

sub69220-52040

main69220-52040-D2iNCP19200002-200008

PALE ROSE ME. OP,3N7

sub69220-52040

main69220-52040-D3iNCP19200110-200112

sub69220-52040

main69220-52040-D3iNCP19200008

BORDAEUX MC.,3P2

sub69220-52040

main69220-52040-D4iNCP19200108-200109

sub69220-52040

main69220-52040-F2iNCP19200008

GOLD ME.,581

sub69220-52040

main69220-52040-G2iNCP19200002-200008

YELLOW GREEN ME. OP,6Q9

sub69220-52040

main69220-52040-G3iNCP19200008

DK.GREEN MC.,6Q7

sub69220-52040

main69220-52040-J1iNCP19200002-200008

BLUE ME.,8N0

sub69220-52040

main69220-52040-J2iNCP19200108-200109

sub69220-52040

main69220-52040-K0iNCP19200101

LAVENDER,947

sub69220-52040

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-10010iNCP19200001

main69293-10020iNCP19200001

69310LOCK ASSY, FRONT DOOR, RH

main69310-52190iNCP19200001

69320LOCK ASSY, FRONT DOOR, LH

main69320-52220iNCP19200001

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-47010iNCP19200001

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-52050iNCP19200001

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-52010iNCP19200001

69749CLAMP, FRONT DOOR LOCK LINK

main69749-32040iNCP19200001

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-95J00-C0iNCP19200001-200008

BLACK,TRIM4#

sub69751-95J00

main69751-95J00-C0iNCP19200008-200108

BLACK,TRIM2#,4#

sub69751-95J00

9014860022

main90148-60022

9014880027

main90148-80027

9017906070

main90179-06070

9018905003

main90189-05003

9151160610

main91511-60610

9354055018

main93540-55018

21 parts on this diagram · 1 diagram in section
