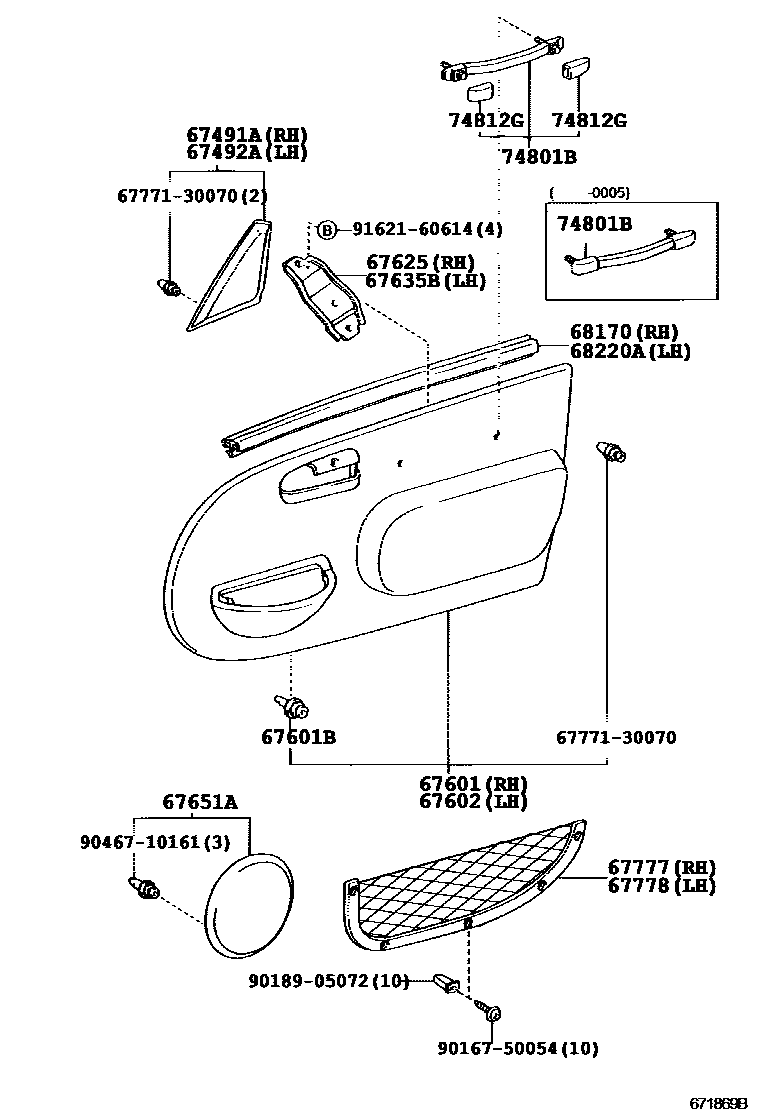

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-52050iNCP19200001

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-52050iNCP19200001

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-52830-C0iNCP19200008-200108

BLACK,TRIM2#

main67610-52830-E0iNCP19200001

TERRCOTTA,TRIM4#

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-10161iNCP19200001

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-52820-C0iNCP19200008-200108

BLACK,TRIM2#

main67620-52820-E0iNCP19200001

TERRCOTTA,TRIM4#

67625BRACKET, FRONT DOOR TRIM, RH

main67625-52040iNCP19200001

67635BBRACKET, DOOR TRIM, NO.1 LH

main67635-52010iNCP19200001

67651AGRILLE, SPEAKER DOOR

main67651-52010-C0iNCP19200008-200108

BLACK,TRIM2#

main67651-52010-E0iNCP19200001

TERRCOTTA,TRIM4#

67777POCKET, FRONT DOOR TRIM, RH

main67770-52010-C1iNCP19200008-200108

BLACK,TRIM2#

main67770-52010-E1iNCP19200001

TERRCOTTA,TRIM4#

67778POCKET, FRONT DOOR TRIM, LH

main67780-52010-C1iNCP19200008-200108

BLACK,TRIM2#

main67780-52010-E1iNCP19200001

TERRCOTTA,TRIM4#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-52010iNCP19200001

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-52010iNCP19200001

74801BHANDLE SUB-ASSY, DOOR PULL

main74801-52010-E0iNCP19200001-200005

TAN,TRIM4#

sub74801-52011

main74801-52011-B0iNCP19200008-200108

MD.GRAY,TRIM2#

main74801-52011-E0iNCP19200005

TAN,TRIM4#

74812GCOVER, DOOR PULL HANDLE

main74812-52011iNCP19200005

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9016750054

main90167-50054

9018905072

main90189-05072

9046710161

main90467-10161

9162160614

main91621-60614

19 parts on this diagram · 2 diagrams in section
