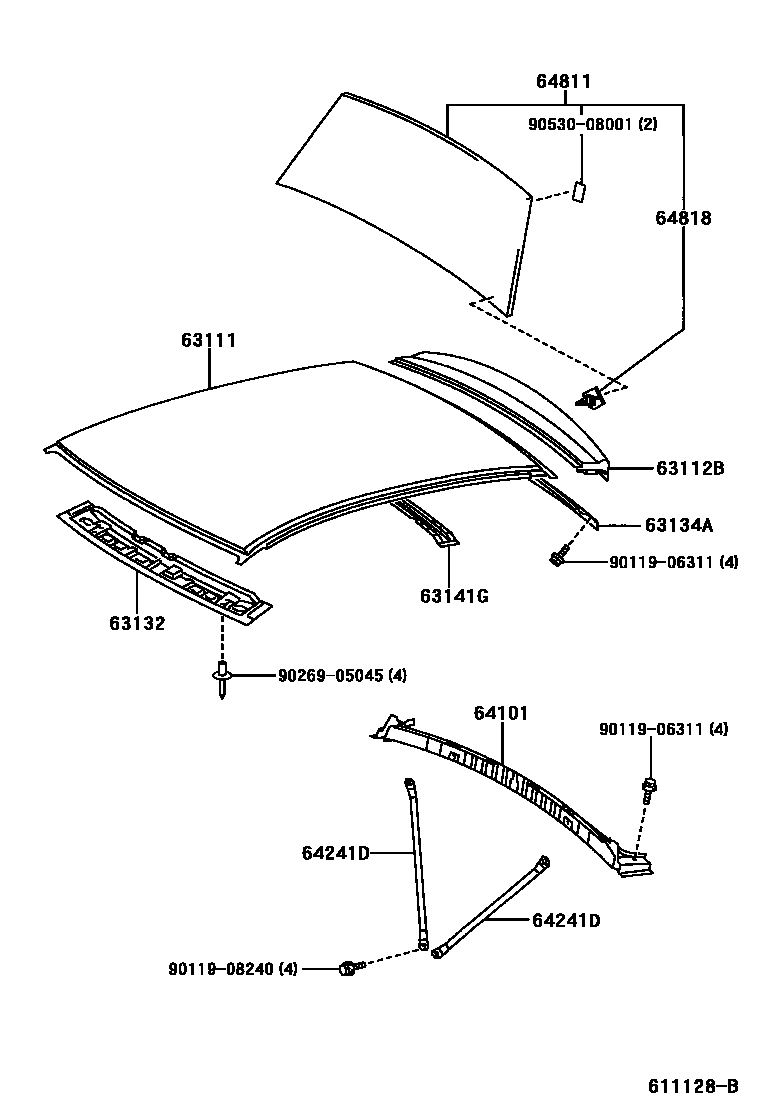

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1������ ����

63111PANEL, ROOF

main63111-52140iNCP19200001

main63111-52150iNCP19200001

63112BPANEL, ROOF, REAR

main63112-52010iNCP19200001

main63112-52020iNCP19200008

63132PANEL, WINDSHIELD HEADER, INNER

main63132-52040iNCP19200001

63134AFRAME, BACK DOOR OPENING, UPPER

main63134-52040iNCP19200001

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-52040iNCP19200001

64101PANEL SUB-ASSY, UPPER BACK

main64101-52050iNCP19200001

64241DPANEL, ROOM PARTITION

main64241-52030×2iNCP19200001

64811GLASS, BACK WINDOW

main64801-52090iNCP19200001

64818SPACER, BACK WINDOW GLASS

main64818-52020×2iNCP19200001

9011906311

main90119-06311

9011908240

main90119-08240

9026905045

main90269-05045

9053008001

main90530-08001

13 parts on this diagram · 2 diagrams in section
