SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
53822BBRACKET, FRONT FENDER, REAR LH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61131BSEAL, FRONT FENDER
61132PILLAR, FRONT BODY, UPPER OUTER LH
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
61142CEXTENSION, FRONT PILLAR, UPPER INNER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61171ABRACKET, ANTENNA POLE MOUNTING
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61311PILLAR, REAR RH
61312PILLAR, REAR LH
61356CHANNEL, ROOF DRIP SIDE, FRONT RH
61366ACHANNEL, ROOF DRIP SIDE, FRONT LH
61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH
61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH
61511PILLAR, QUARTER LOCK, RH
61512PILLAR, QUARTER LOCK, LH
61513DPANEL, REAR UPPER SIDE, INNER FRONT RH
61514BPANEL, REAR UPPER SIDE, INNER FRONT LH
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625AEXTENSION SUB-ASSY, QUARTER PANEL, RH
61626AEXTENSION SUB-ASSY, QUARTER PANEL, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61663BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER CENTER RH
61664BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER CENTER LH
61675CREINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR RH
61676CREINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR LH
61679DSEAL, QUARTER WHEEL HOUSE
61687GBRACKET, REAR SEATBACK SIDE MOUNTING, NO.1 RH
61688EBRACKET, REAR SEATBACK SIDE MOUNTING, NO.1 RH
61693DBRACKET, REAR WHEEL OPENING, NO.1
61694DBRACKET, REAR WHEEL OPENING, NO.2
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
64117CPANEL, BACK CORNER, OUTER REAR RH
64118DPANEL, BACK CORNER, OUTER REAR LH
64312BRACKET, PACKAGE TRAY, RH
64313BRACKET, PACKAGE TRAY, LH
9011906311
main90119-06311
9014860033
main90148-60033
9026904024
main90269-04024
9026904048
main90269-04048
9026905045
main90269-05045
9054106058
main90541-06058
91511B0812
main91511-B0812
9162140614
main91621-40614
91631G0614
main91631-G0614

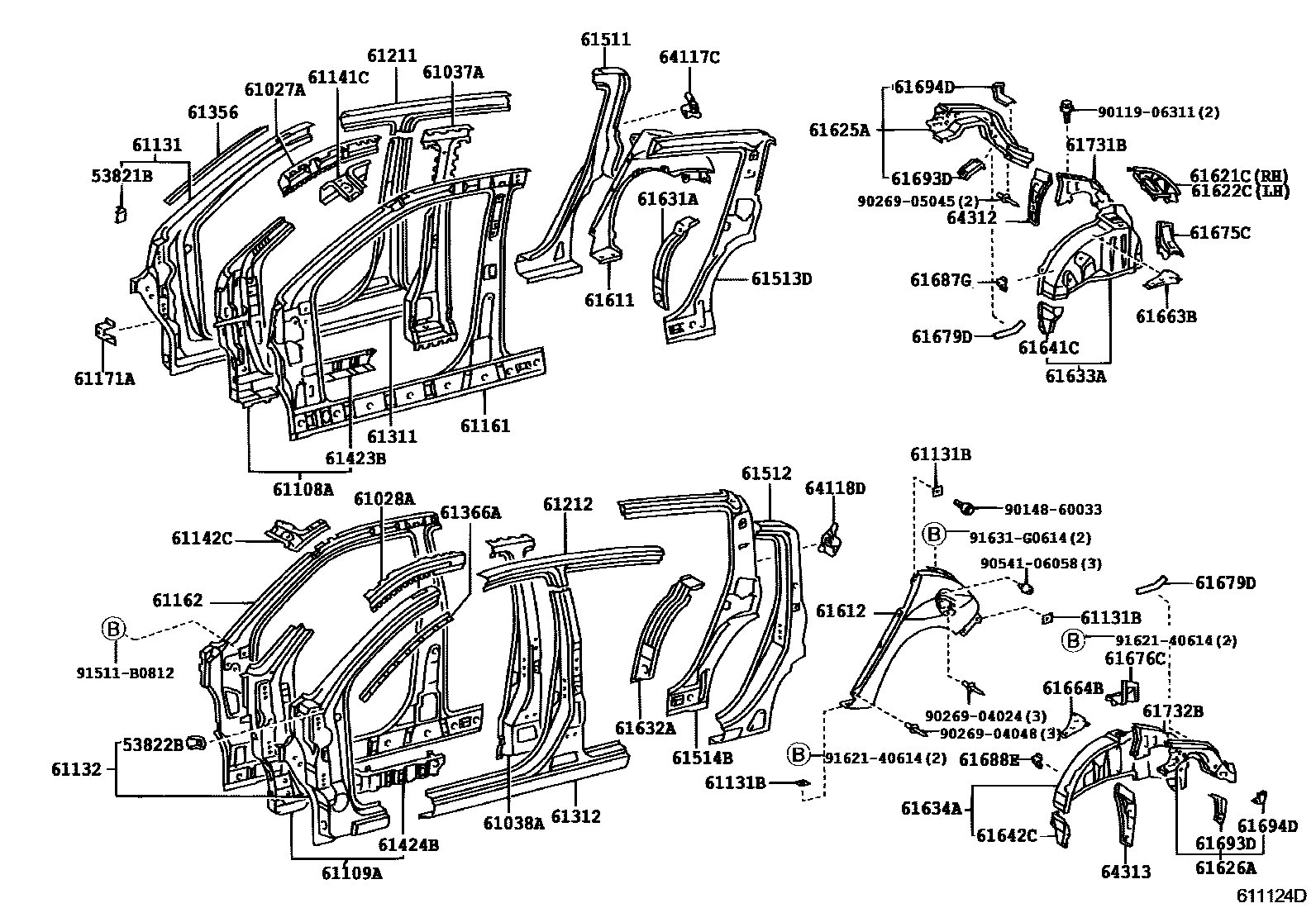

64 parts on this diagram · 2 diagrams in section
