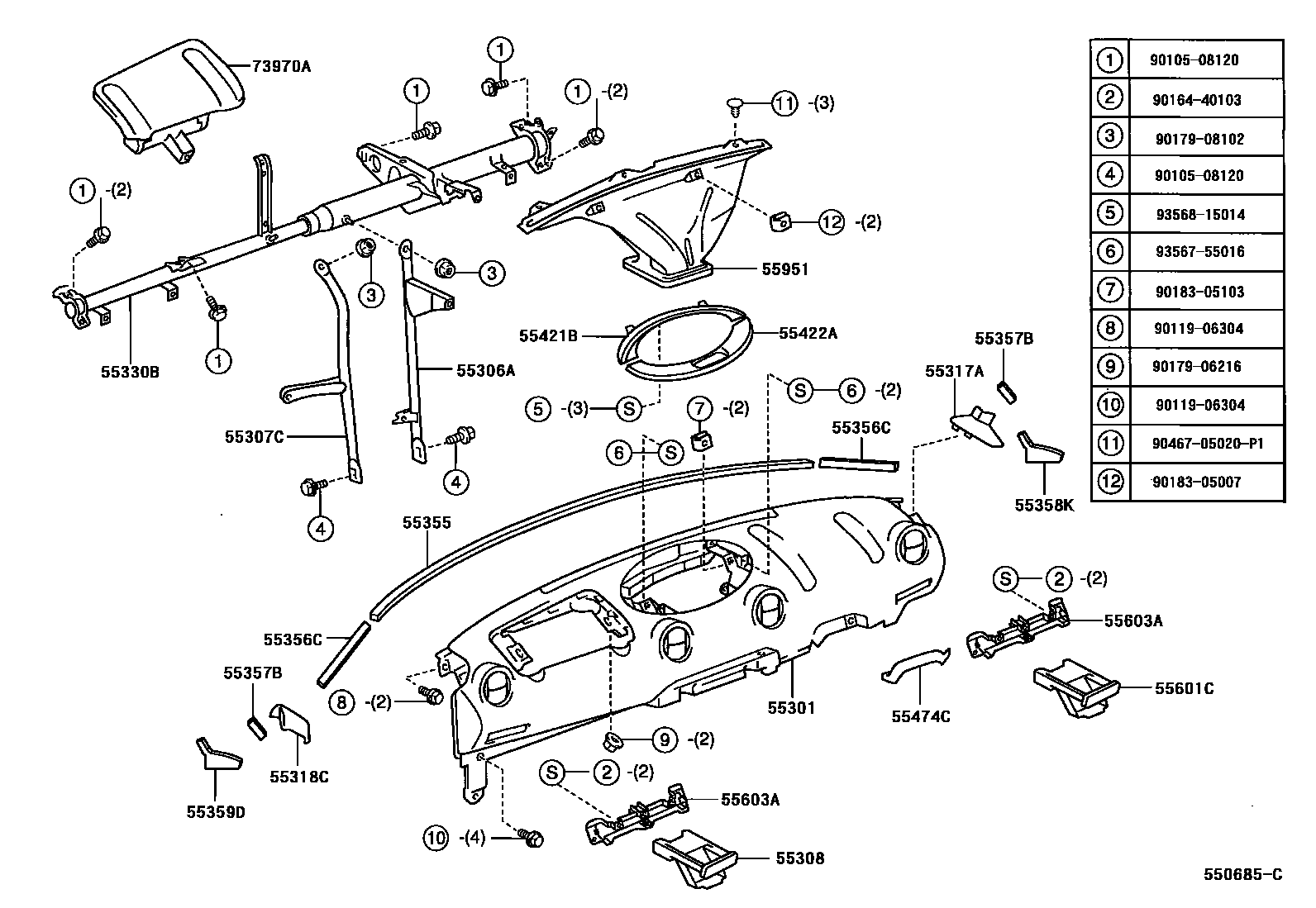

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
BLACK,TRIM2#
TERRCOTTA,TRIM4#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308TRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM2#
TERRCOTTA,TRIM4#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM2#
TERRCOTTA,TRIM4#
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
sub55356-52070
55358KCUSHION, INSTRUMENT PANEL, NO.4
55359DCUSHION, INSTRUMENT PANEL, NO.5
55421BPANEL, INSTRUMENT CLUSTER FINISH, UPPER
BLACK,TRIM2#
TERRCOTTA,TRIM4#
55422APANEL, INSTRUMENT CLUSTER FINISH, LOWER
55474CGARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55601CTRAY SUB-ASSY, INSTRUMENT PANEL UNDER
55951NOZZLE, DEFROSTER, FRONT
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
9010508120
main90105-08120
9011906304
main90119-06304
9016440103
main90164-40103
9017906216
main90179-06216
9017908102
main90179-08102
9018305007
main90183-05007
9018305103
main90183-05103
9046705020P1
main90467-05020P1
9356755016
main93567-55016
9356815014
main93568-15014
29 parts on this diagram · 2 diagrams in section
