FLOOR SIDE MEMBER

51963FHOOK, TRANSPORT

main51963-52010iNCP19200001

51964FHOOK, TRANSPORT, LH

main51963-52010iNCP19200001

52141FARM, FRONT BUMPER, RH

main52141-52010iNCP19200001

52142GARM, FRONT BUMPER, LH

main52142-52010iNCP19200001

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-52010iNCP19200001

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57044-52010iNCP19200001

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-52010iNCP19200001

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-52901iNCP19200001-200005

main57101-52904iNCP19200005

sub57101-52908

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-52902iNCP19200001

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-52010iNCP19200001

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57105-52010iNCP19200001

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-52010iNCP19200001

sub57107-52020

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-52010iNCP19200001

sub57108-52020

57111MEMBER, FRONT SIDE, RH

main57111-52010iNCP19200001

57112MEMBER, FRONT SIDE, LH

main57112-52010iNCP19200001

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-52010iNCP19200001

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-52010iNCP19200001

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-52010iNCP19200001

sub57117-52020

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-52010iNCP19200001

57145AREINFORCEMENT, FRONT SIDE MEMBER, REAR RH

main57145-52011iNCP19200001

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57145-52011iNCP19200001

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-52010iNCP19200001

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-52010iNCP19200001

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-52010iNCP19200001-200006

main57155-52011iNCP19200006

sub57155-52012

57191PLATE, FRONT SIDE MEMBER, OUTER REAR RH

main57191-52900iNCP19200001

57192PLATE, FRONT SIDE MEMBER, OUTER REAR LH

main57192-52011iNCP19200001

57197BOX, TORQUE, FRONT RH

main57077-52020iNCP19200001

57198BOX, TORQUE, FRONT LH

main57078-52020iNCP19200001

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040iNCP19200001

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040iNCP19200001

57411AMEMBER, FLOOR SIDE, INNER RH

main57401-52050iNCP19200001

sub57401-52021

57412AMEMBER, FLOOR SIDE, INNER LH

main57402-52050iNCP19200001

sub57402-52021

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-52011iNCP19200001

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-52011iNCP19200001

57451BMEMBER, FRONT FLOOR CROSS, RH

main57451-52010iNCP19200001-200005

main57451-52011iNCP19200005

57452MEMBER, FRONT FLOOR CROSS, LH

main57452-52010iNCP19200001-200005

main57452-52011iNCP19200005-200107

main57452-52012iNCP19200107

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52900iNCP19200001-200009

main57601-52909iNCP19200009

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52900iNCP19200001

sub57602-52906

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52010iNCP19200001

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52030iNCP19200001

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57801-52010iNCP19200001

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57802-52010iNCP19200001

57661BMEMBER, REAR FLOOR CROSS, FRONT

main57661-52010iNCP19200001

57771PLATE, REAR SPRING, RH

main51301-52010iNCP19200001-200010

main51301-52020iNCP19200010

57772PLATE, REAR SPRING, LH

main51302-52010iNCP19200001-200010

main51302-52020iNCP19200010

5329247010SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-47010

9033325001

main90333-25001

9033335002

main90333-35002

9095001006

main90950-01006

9095001259

main90950-01259

9095001539

main90950-01539

9095001753

main90950-01753

9095001759

main90950-01759

9095001882

main90950-01882

9095006108

main90950-06108

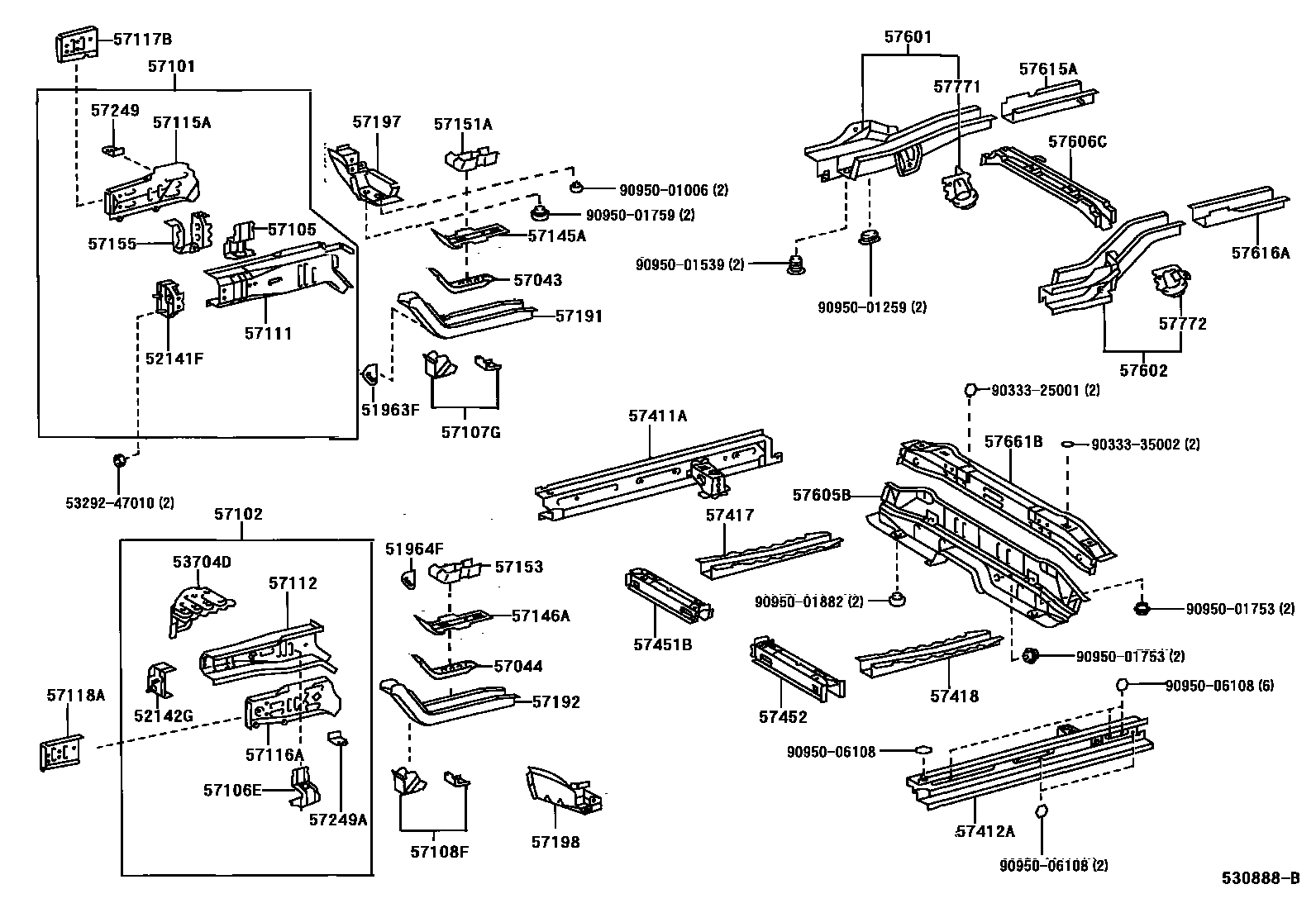

55 parts on this diagram · 1 diagram in section
