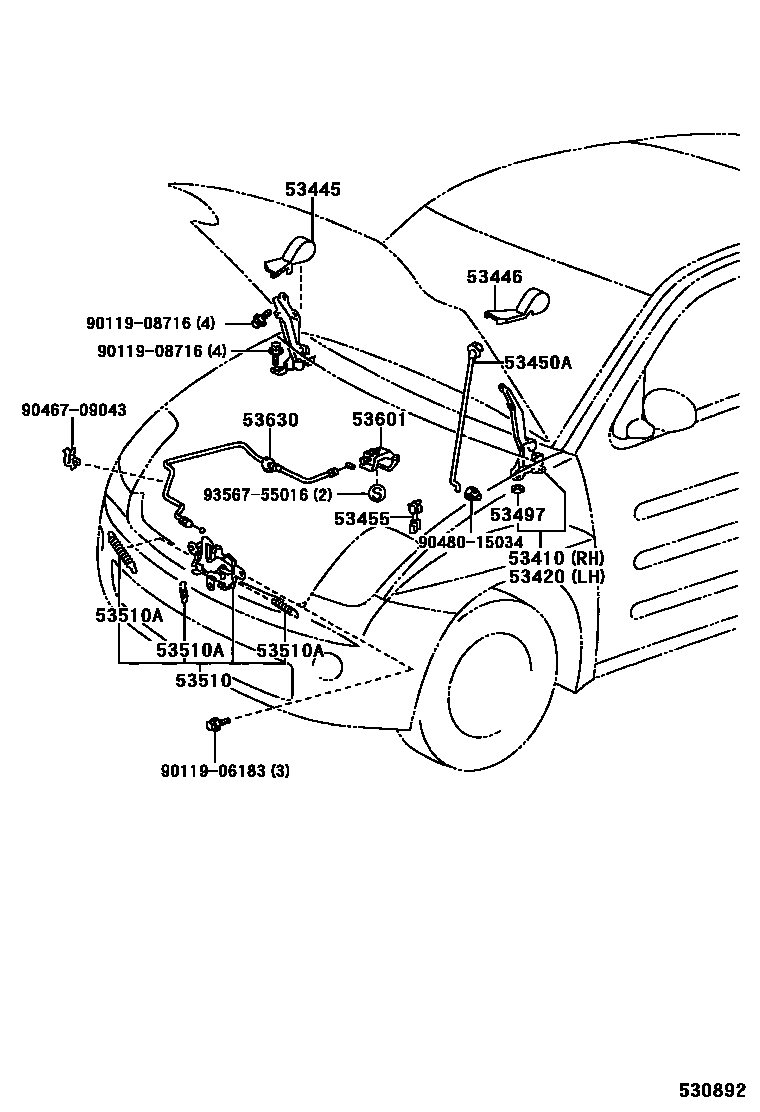

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-52070iNCP19200001

53420HINGE ASSY, HOOD, LH

main53420-52070iNCP19200001

53445COVER, HOOD HINGE, RH

main53445-52010iNCP19200001

53446COVER, HOOD HINGE, LH

main53446-52010iNCP19200001

53450ASUPPORT ASSY, HOOD, LH

main53440-52040iNCP19200001

53455CLAMP, HOOD SUPPORT ROD

main53455-52010iNCP19200001

53497PAD, HOOD HINGE, NO.1

main53497-10020×4iNCP19200001

main53497-12050×4iNCP19200001

main53497-12070iNCP19200001

53510LOCK ASSY, HOOD

main53510-52090iNCP19200001

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iNCP19200001

main90506-12063iNCP19200001

main90506-18067iNCP19200001

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52020-C0iNCP19200001-200008

BLACK,TRIM4#

sub53601-24030

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-52020iNCP19200001

9011906183

main90119-06183

9011908716

main90119-08716

9046709043

main90467-09043

9048015034

main90480-15034

9356755016

main93567-55016

16 parts on this diagram · 1 diagram in section
