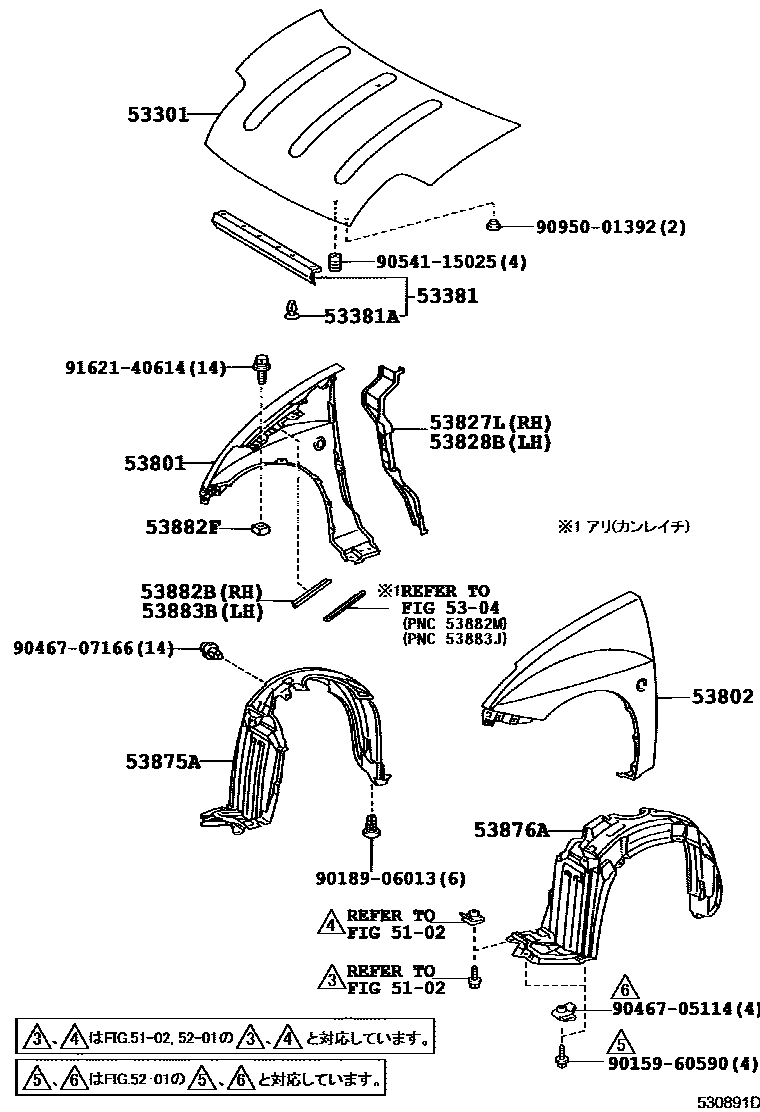

HOOD & FRONT FENDER

5102

5304

53301HOOD SUB-ASSY

main53301-52090iNCP19200001

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-52010iNCP19200001

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iNCP19200001

53801FENDER SUB-ASSY, FRONT RH

main53811-52100iNCP19200001

53802FENDER SUB-ASSY, FRONT LH

main53812-52090iNCP19200001

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52050iNCP19200001

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52050iNCP19200001

53875ALINER, FRONT FENDER, RH

main53875-52050iNCP19200001

53876ALINER, FRONT FENDER, LH

main53876-52050iNCP19200001

53882BSEAL, FRONT FENDER, RH

main53882-52070iNCP19200001

53882FSEAL, FRONT FENDER

main53882-16030iNCP19200001

53883BSEAL, FRONT FENDER, LH

main53882-52070iNCP19200001

9015960590

main90159-60590

9018906013

main90189-06013

9046705114

main90467-05114

9046707166

main90467-07166

9054115025

main90541-15025

9095001392

main90950-01392

9162140614

main91621-40614

21 parts on this diagram · 1 diagram in section
