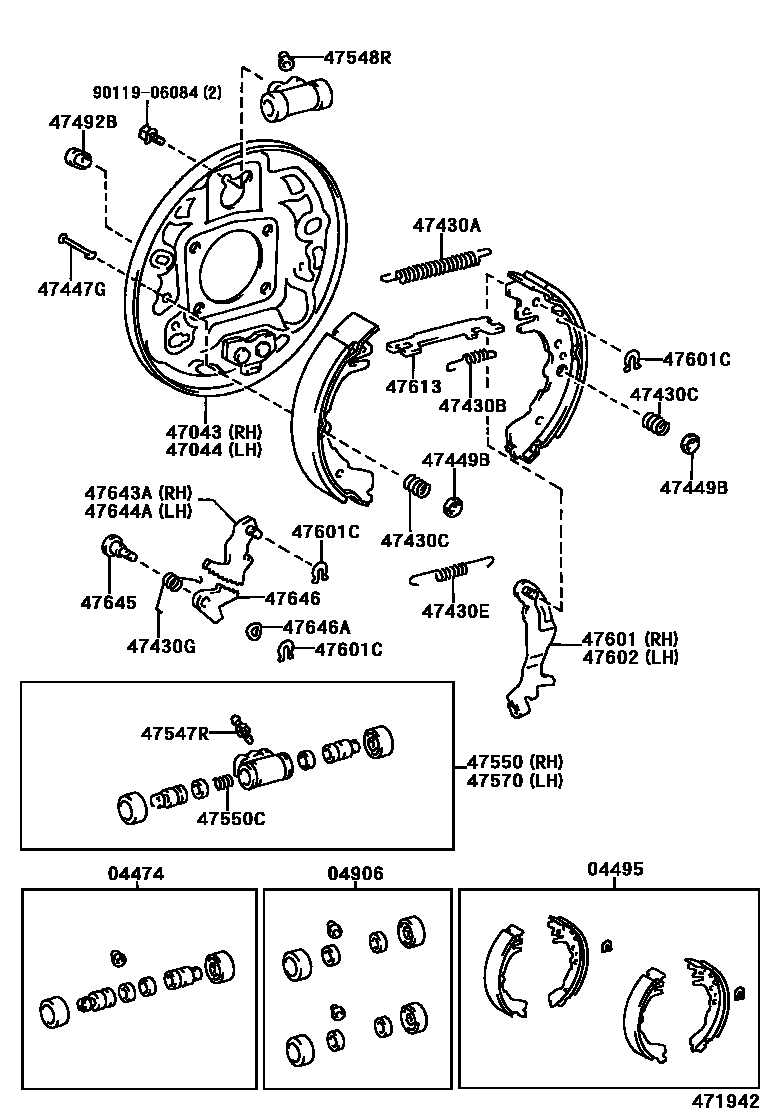

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52010×2iNCP19200001

04495SHOE KIT, REAR BRAKE

main04495-52010iNCP19200001

04906CUP KIT, REAR WHEEL CYLINDER

main04906-52010iNCP19200001

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52020iNCP19200001

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52020iNCP19200001

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18081×2iNCP19200001

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14075iNCP19200001

main90506-14076iNCP19200001

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-16166×4iNCP19200001

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-16068×2iNCP19200001

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90949-03085iNCP19200001

main90949-03086iNCP19200001

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-10020×4iNCP19200001

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-20011×4iNCP19200001

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47491-20020×2iNCP19200001

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010×2iNCP19200001

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2iNCP19200001

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-52011iNCP19200001

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014×2iNCP19200103

main90501-07006×2iNCP19200001-200103

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-52011iNCP19200001

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-52010iNCP19200001

47601CWASHER, C(FOR REAR BRAKE)

main90213-04001×6iNCP19200001

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-52010iNCP19200001

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-52010×2iNCP19200001

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-52010iNCP19200001

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-52010iNCP19200001

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-52010×2iNCP19200001

47646LATCH, AUTOMATIC ADJUST(FOR REAR BRAKE)

main47646-52010iNCP19200001

main47646-52020iNCP19200001

47646AWASHER, PLATE(FOR REAR BRAKE AUTOMATIC ADJUST LATCH)

main90206-06008×2iNCP19200001

9011906084

main90119-06084

28 parts on this diagram · 1 diagram in section
