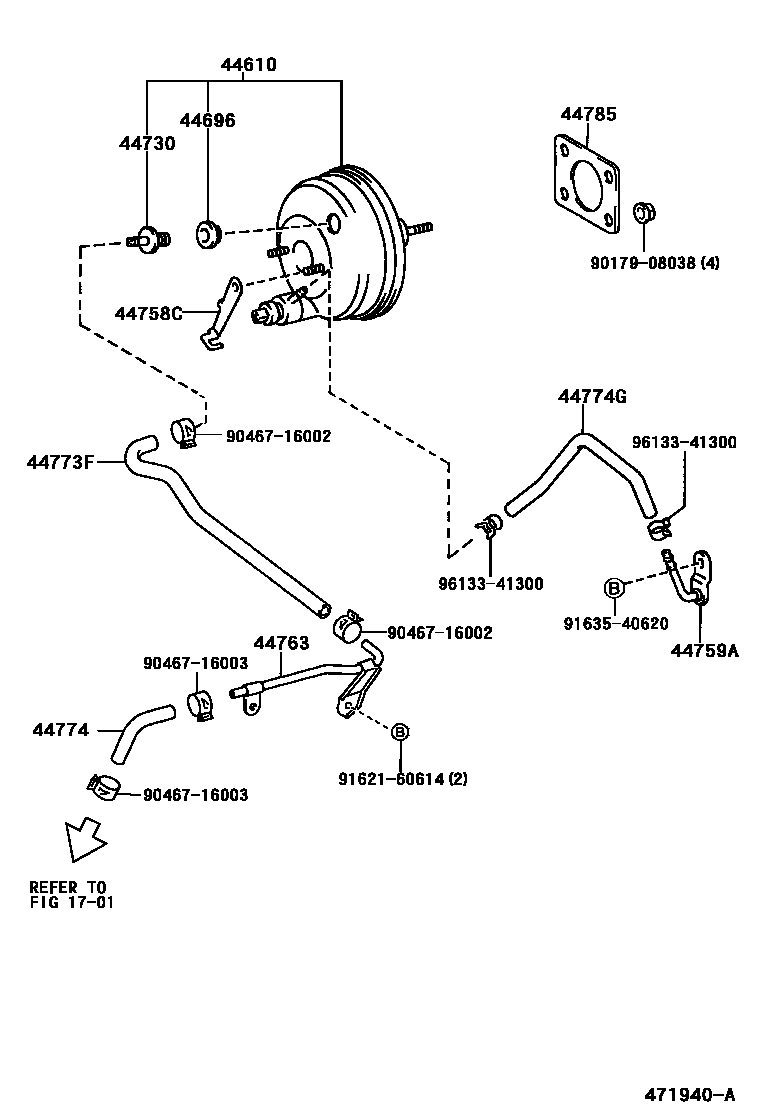

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-52010iNCP19200001-200108

sub44610-52011

main44610-52011iNCP19200108

44696GROMMET, CHECK VALVE

main90480-24439iNCP19200001

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCP19200001

44758CBRACKET, SOLENOID VALVE COVER

main44758-52010iNCP19200001

44759AUNION, BRAKE BOOSTER AIR HOSE

main44759-52010iNCP19200001

44763TUBE, BOOSTER VACUUM

main44763-52010iNCP19200001

44773FHOSE, UNION TO CHECK VALVE

main44773-52020iNCP19200001

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCP19200001

44774GHOSE, UNION TO SOLENOID

main44774-52010iNCP19200001

44785GASKET, BRAKE BOOSTER

main44785-16020iNCP19200001

9017908038

main90179-08038

9046716002

main90467-16002

9046716003

main90467-16003

9162160614

main91621-60614

9163540620

main91635-40620

9613341300

main96133-41300

17 parts on this diagram · 1 diagram in section
