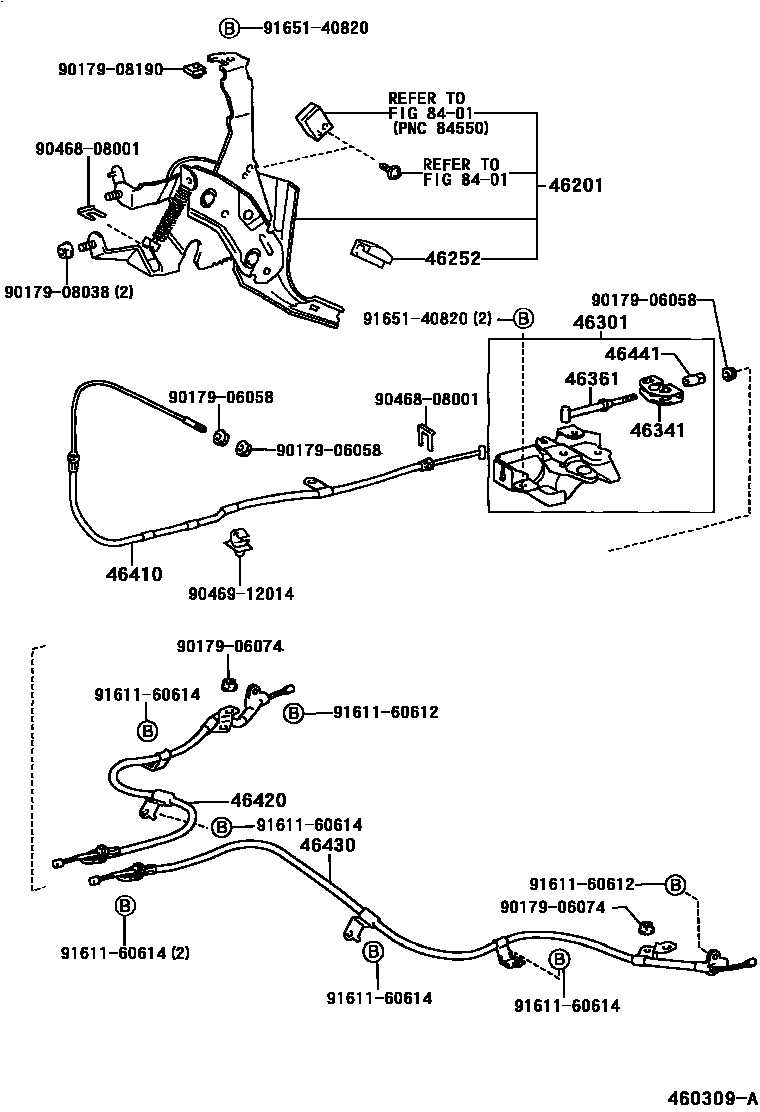

PARKING BRAKE & CABLE

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-52020iNCP19200001

46252PAD, PARKING PEDAL

main46252-52010iNCP19200001

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-52010iNCP19200001

46341EQUALIZER, PARKING BRAKE

main46341-52010iNCP19200001

46361ROD, PARKING BRAKE PULL

main46361-52020iNCP19200001

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-52010iNCP19200001

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-52090iNCP19200001

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-52090iNCP19200001

46441NUT, WIRE ADJUSTING, NO.1

main46441-52010iNCP19200001

8401

9017906058

main90179-06058

9017906074

main90179-06074

9017908038

main90179-08038

9017908190

main90179-08190

9046808001

main90468-08001

9046912014

main90469-12014

9161160612

main91611-60612

9161160614

main91611-60614

9165140820

main91651-40820

19 parts on this diagram · 1 diagram in section
