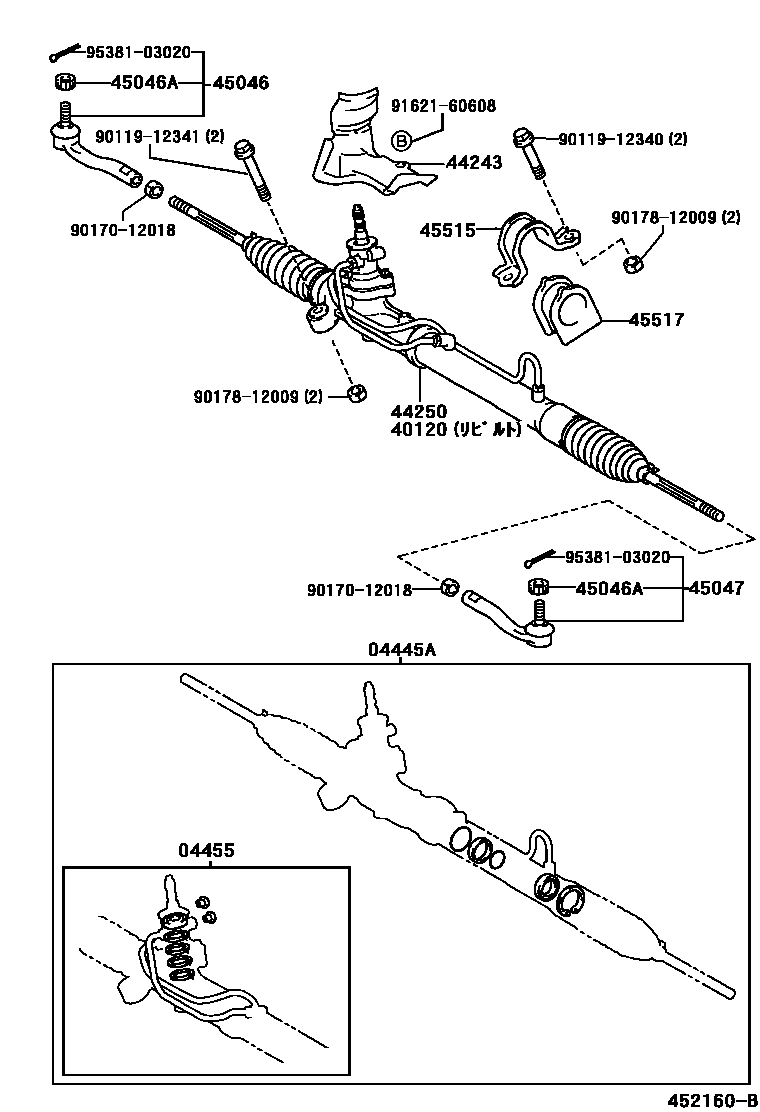

FRONT STEERING GEAR & LINK

0001 1 0002 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-52020iNCP19200001-200112

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-52010iNCP19200001-200112

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-52100iNCP19200001-200112

44243INSULATOR, POWER STEERING RACK HOUSING HEAT

main44243-52030iNCP19200001-200109

main44243-52031iNCP19200109

sub44243-52032

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-52100iNCP19200001-200112

sub44200-52130

45046END SUB-ASSY, TIE ROD, RH

main45046-59026iNCP19200001-200112

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNCP19200001

45047END SUB-ASSY, TIE ROD, LH

main45047-59026iNCP19200001-200112

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-52010iNCP19200001

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-52010iNCP19200001

9011912340

main90119-12340

9011912341

main90119-12341

9017012018

main90170-12018

9017812009

main90178-12009

9162160608

main91621-60608

9538103020

main95381-03020

16 parts on this diagram · 2 diagrams in section
