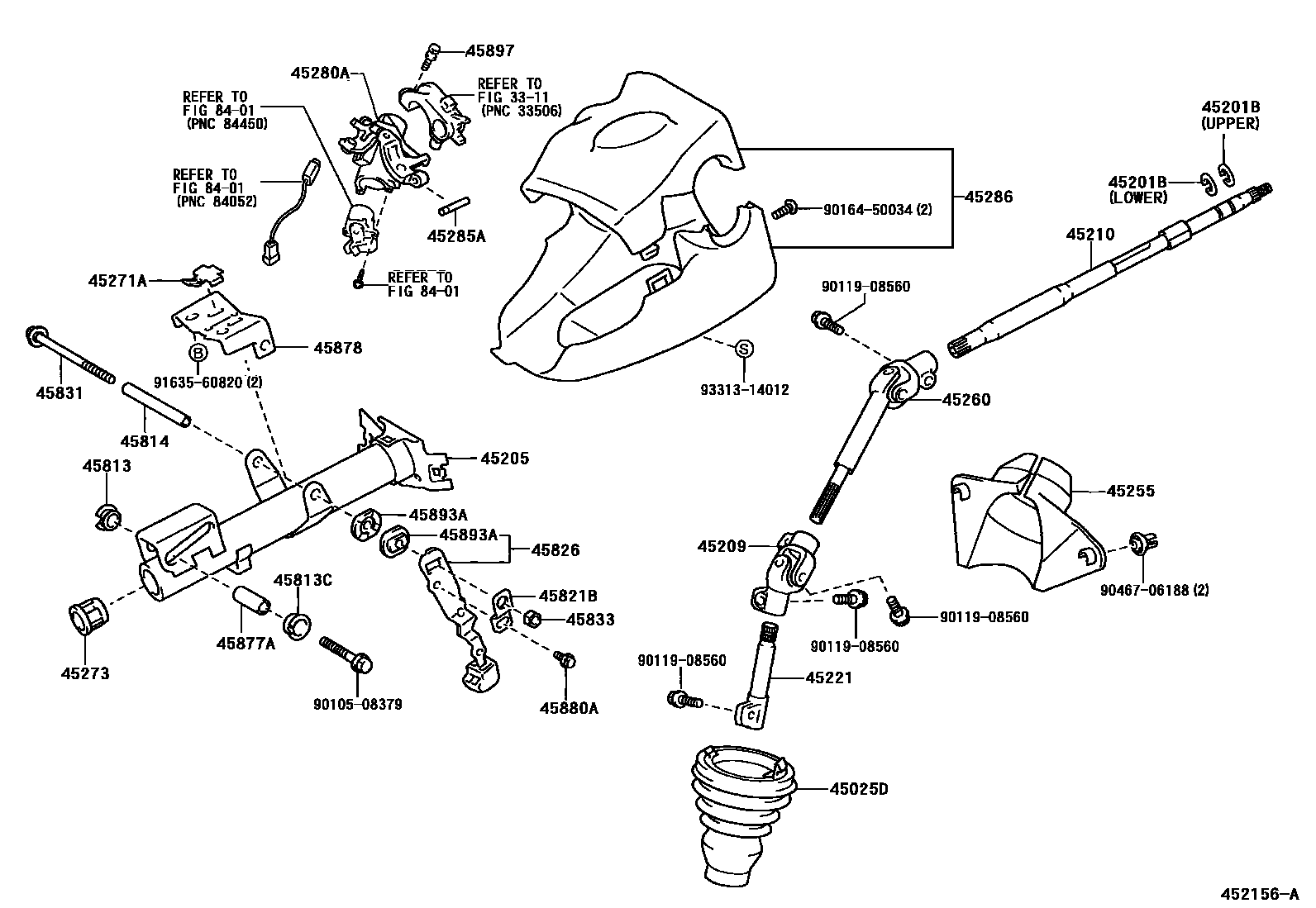

STEERING COLUMN & SHAFT
3311
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
sub45025-52011
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45205TUBE SUB-ASSY, STEERING COLUMN
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45221SHAFT, STEERING INTERMEDIATE
45255PLATE, STEERING COLUMN HOLE COVER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271ACLAMP, STEERING COLUMN, UPPER NO.2
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45285APIN, STEERING LOCK
45286COVER, STEERING COLUMN
BLACK,TRIM4#
BLACK,TRIM2#,4#
45813COLLAR, TILT STEERING SUPPORT, NO.1
45813CCOLLAR, TILT STEERING SUPPORT, NO.1
45814COLLAR, TILT STEERING SUPPORT, NO.2
45821BREINFORCE, TILT STEERING SUPPORT, NO.1
45826LEVER, STEERING TILT
45831BOLT, TILT LEVER LOCK, NO.1
45833NUT, TILT STEERING ADJUSTING, NO.1
45877ASPACER, STEERING COLUMN BRACKET
45878BRACKET, STEERING COLUMN UPPER SUPPORT
45880ABOLT(FOR STEERING TILT LEVER)
45893ASTOPPER, TILT STEERING PAWL
45897BOLT, STEERING LOCK SET
8401
9010508379
main90105-08379
9011908560
main90119-08560
9016450034
main90164-50034
9046706188
main90467-06188
9163560820
main91635-60820
9331314012
main93313-14012
33 parts on this diagram · 1 diagram in section
