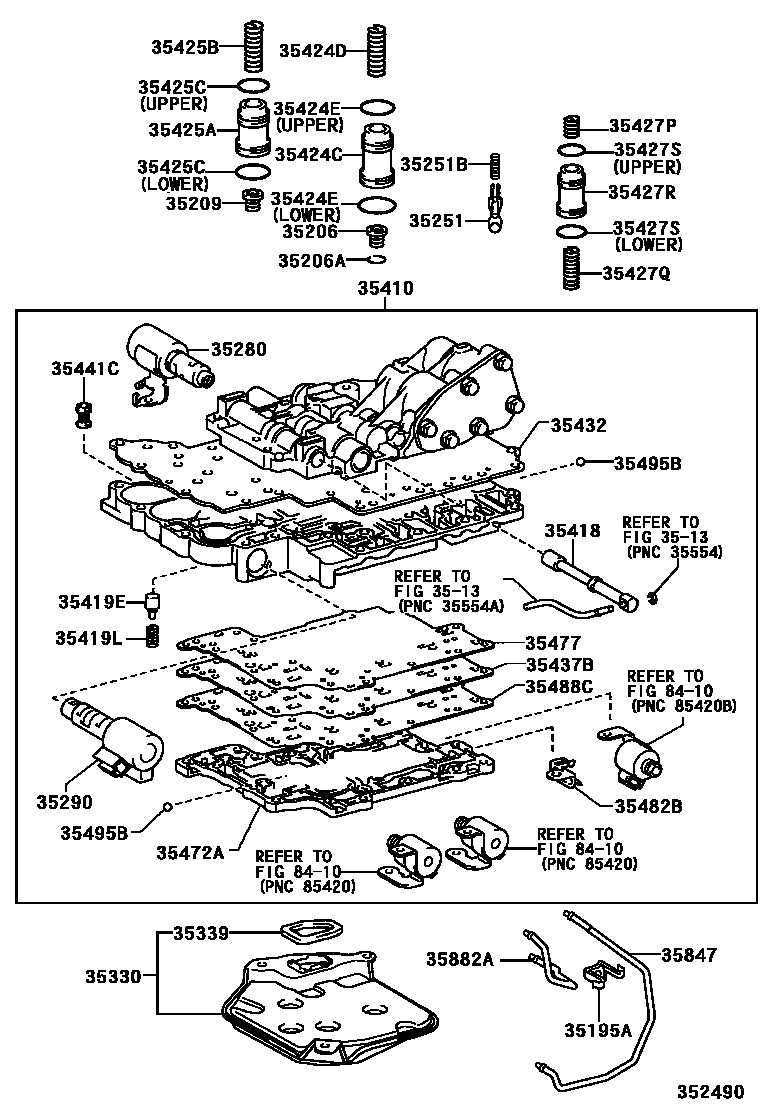

VALVE BODY & OIL STRAINER (ATM)

0001 1U441E 0002 1U441E 0003 1U441E 0004 1U441E

3513

35195ACLAMP, TRANSAXLE APPLY TUBE, NO.1

main35195-52010iNCP19200001

35206SPRING SUB-ASSY, C-1 ACCUMULATOR

main35206-52010iNCP19200001

sub90905-01083

35206ARING, HOLE SNAP (FOR C-1 ACCUMULATOR SPRING)

main90521-22004iNCP19200001

35209SPRING SUB-ASSY, C-2 ACCUMULATOR

main35209-52010iNCP19200001

35251BODY, CHECK BALL

main35251-30020iNCP19200001

35251BSPRING, COMPRESSION(FOR CHECK BALL BODY)

main90501-03005iNCP19200001

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-52010iNCP19200001

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-52010iNCP19200001

35330STRAINER ASSY, VALVE BODY OIL

main35330-52010iNCP19200001

35339GASKET, OIL STRAINER

main35339-52010iNCP19200001

35410BODY ASSY, TRANSMISSION VALVE

main35410-52020iNCP19200001

35418VALVE, MANUAL

main35418-52010iNCP19200001

35419EVALVE, CHECK, NO.3

main35419-52010iNCP19200001

sub35419-52050

35419LSPRING, COMPRESSION (FOR CHECK VALVE NO.3)

main90501-08187iNCP19200001

35424CPISTON, C-1 ACCUMULATOR

main35424-52010iNCP19200001

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-22046iNCP19200001

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-21011iNCP19200001

main90301-29012iNCP19200001

35425APISTON, C-2 ACCUMULATOR

main35425-52010iNCP19200001

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22042iNCP19200001

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-21011iNCP19200001

main90301-29012iNCP19200001

35427PSPRING, COMPRESSION, NO.1(FOR B-1 ACCUMULATOR PISTON)

main90501-16165iNCP19200001

35427QSPRING COMPRESSION, NO.2(FOR B1 ACCUMULATOR PISTON)

main90501-21029iNCP19200001

35427RPISTON B-1 ACCUMULATOR

main35427-52010iNCP19200001

35427SRING, O(FOR B-1 ACCUMULATOR PISTON)

main90301-19016iNCP19200001

main90301-29012iNCP19200001

35432PLATE, VALVE BODY, NO.1

main35432-52020iNCP19200001

35437BPLATE, VALVE BODY COVER

main35437-52010iNCP19200001

35441CSTRAINER, SOLENOID OIL

main35441-12020iNCP19200001

35472ACOVER, LOWER VALVE BODY

main35472-52010iNCP19200001

35477GASKET, VALVE BODY COVER

main35477-52011iNCP19200001

35482BCLAMP, TEMPERATURE SENSOR

main35482-52010iNCP19200001

35488CGASKET, VALVE BODY COVER, NO.2

main35488-52020iNCP19200001

35495BBALL, CHECK, NO.1

main35495-22020×9iNCP19200001

35847TUBE, TRANSMISSION LUBE APPLY

main35847-52010iNCP19200001

35882ATUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-52010iNCP19200001

8410

36 parts on this diagram · 4 diagrams in section
