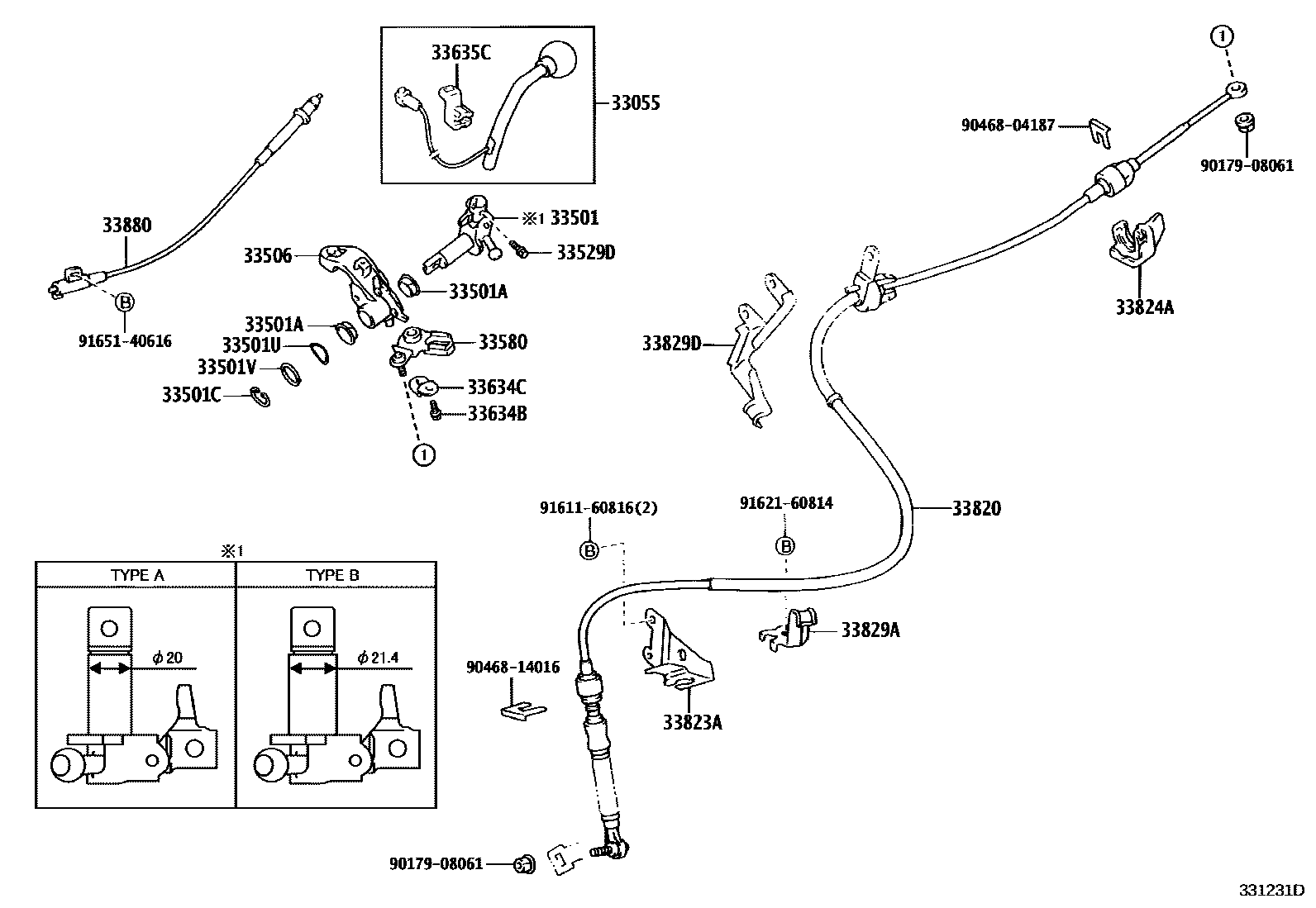

CONTROL SHAFT & CROSSSHAFT

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-52041-B0iNCP19200008-200108

MD.GRAY,TRIM2#

main33055-52041-E0iNCP19200001

TAN,TRIM4#

33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)

main33501-52011iNCP19200001-200110

sub33501-52H00

main33501-52012iNCP19200110

33501ABUSH (FOR COLUMN SHIFT CONTROL SHAFT)

main90386-20007×2iNCP19200001-200110

main90386-21002×2iNCP19200110

33501CRING (FOR CONTROL SHAFT)

main96150-02000iNCP19200001

33501UWASHER, WAVE(FOR COLUMN SHIFT CONTROL SHIFT)

main90206-21002iNCP19200001

33501VSPACER(FOR COLUMN SHIFT CONTROL SHIFT)

main90560-22005iNCP19200110

main90564-21001iNCP19200001-200110

subSZ910-11017

33506RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR COLUMN SHIFT)

main33506-52021iNCP19200001-200110

sub33501-52H00

main33506-52022iNCP19200110

33529DBOLT, SHIFT LEVER

main33529-32010iNCP19200001

33580BELLCRANK ASSY, SHIFTING (FOR COLUMN SHIFT)

main33580-52010iNCP19200001

33634BBOLT(FOR WIRE PROTECTOR)

main33529-52010iNCP19200001

33634CBRACKET, SHIFT LEVER HARNESS CONNECTOR

main33634-32010iNCP19200001

33635CGUIDE, WIRE

main33635-52010iNCP19200001

33820CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)

main33820-52061iNCP19200001

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33823-52020iNCP19200001

33824ACOVER, TRANSMISSION CONTROL CABLE

main33824-52010iNCP19200001

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-52020iNCP19200001

33829DBRACKET, TRANSMISSION CONTROL CABLE

main33829-52040iNCP19200001

33880CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)

main33880-52030iNCP19200001

9017908061

main90179-08061

9046804187

main90468-04187

9046814016

main90468-14016

9161160816

main91611-60816

9162160814

main91621-60814

9165140616

main91651-40616

24 parts on this diagram · 1 diagram in section
