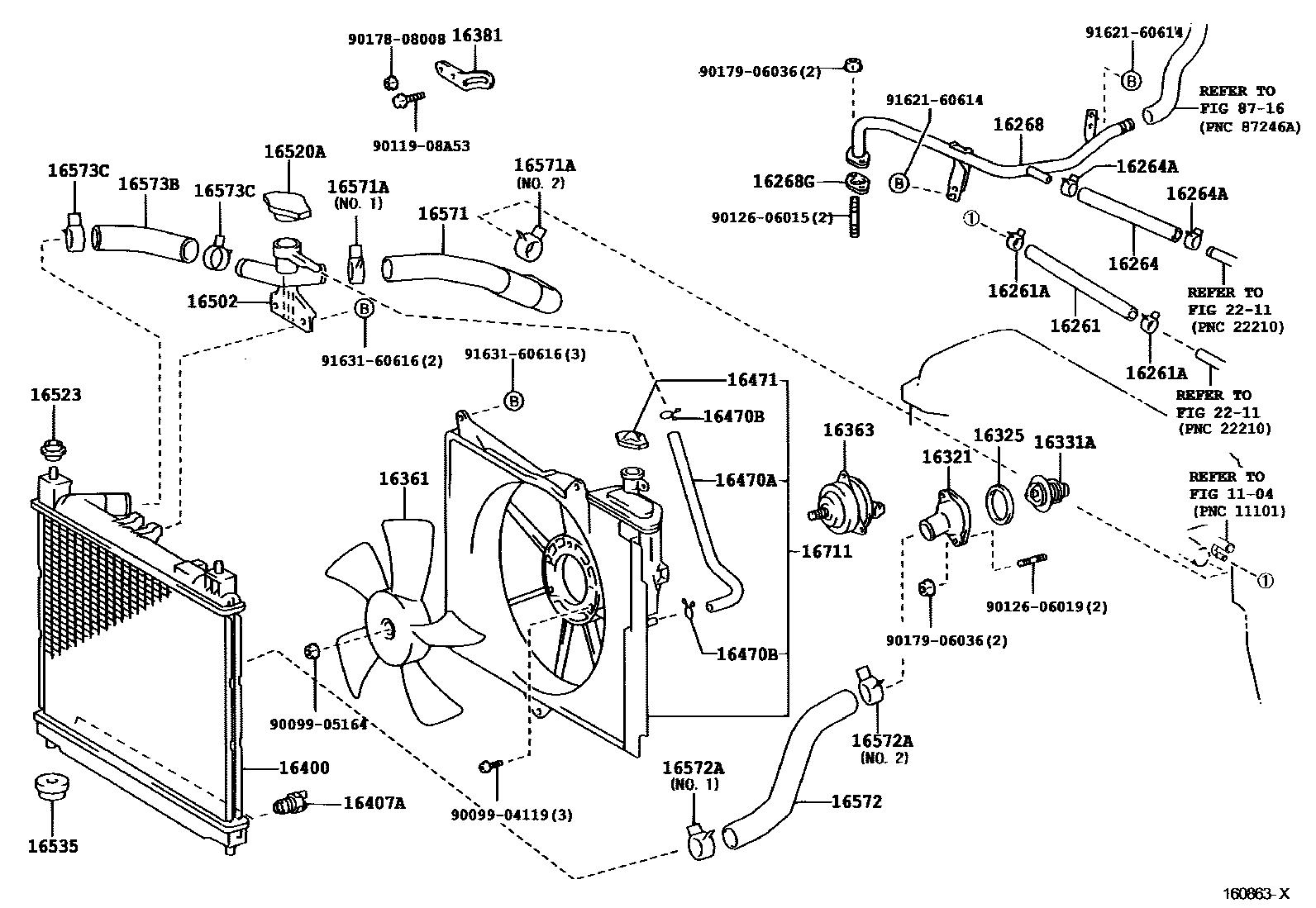

RADIATOR & WATER OUTLET
1104
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16268PIPE, WATER BY-PASS, NO.1
sub16268-21022
16268GGASKET(FOR WATER BY-PASS PIPE)
sub16258-21021
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
16331ATHERMOSTAT
16363MOTOR, COOLING FAN
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
sub16400-21071
16407ACOCK SUB-ASSY, RADIATOR DRAIN
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16502FILLER SUB-ASSY, WATER
16520ACAP SUB-ASSY, WATER FILLER
sub16401-31520
16523CUSHION, SUB-RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571HOSE, RADIATOR, INLET
16572HOSE, RADIATOR, OUTLET
16573BHOSE, RADIATOR, NO.3
16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3
16711SHROUD, FAN
2211
8716
9009904119
main90099-04119
9009905164
main90099-05164
9011908A53
main90119-08A53
9012606015
main90126-06015
9012606019
main90126-06019
9017808008
main90178-08008
9017906036
main90179-06036
9162160614
main91621-60614
9163160616
main91631-60616
40 parts on this diagram · 2 diagrams in section
