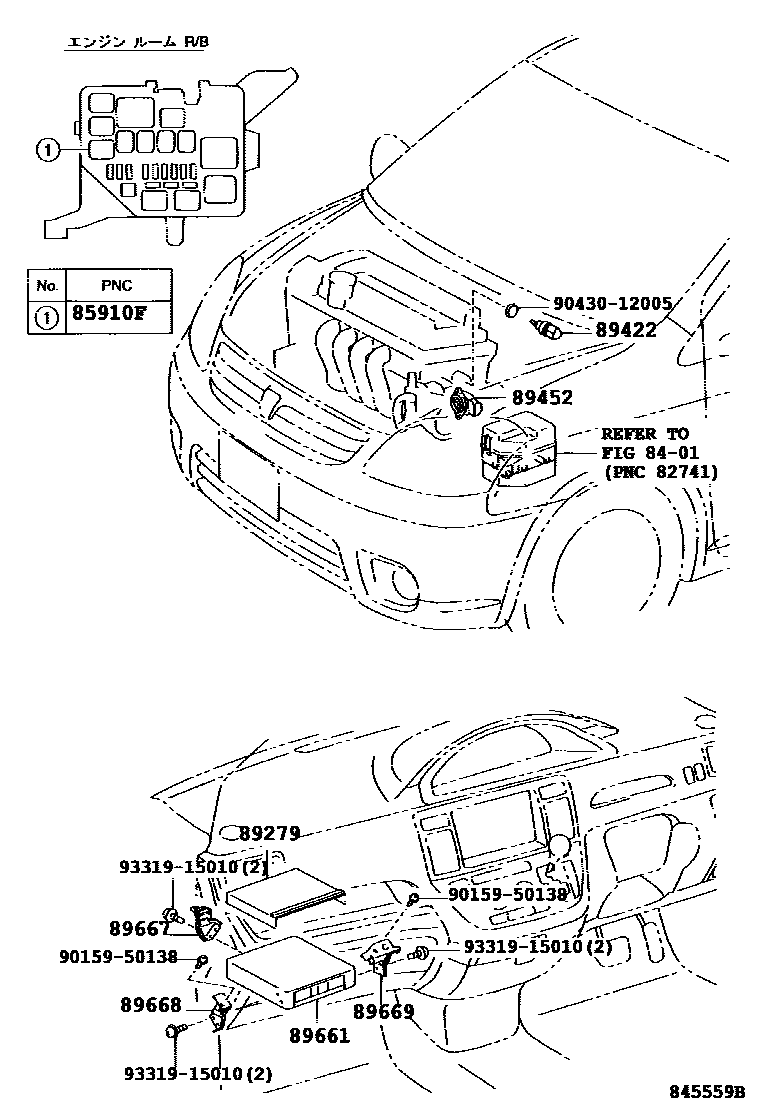

ELECTRONIC FUEL INJECTION SYSTEM

8401

85910FRELAY, COMPUTER (FOR EFI)

main90987-02027iNCZ2#200304-201104

89279COVER, ENGINE CONTROL COMPUTER

main89279-52100iNCZ2#200304

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCZ2#200304-201008

main89422-22030iNCZ2#200304-201008

main89422-33030iNCZ2#201008-201104

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCZ2#200304-201104

89661COMPUTER, ENGINE CONTROL

main89661-46030iNCZ20200304-200712

sub89661-46031

main89661-46031iNCZ20200801-201008

main89661-46040iNCZ25200304-200712

sub89661-46041

main89661-46041iNCZ25200801-201008

main89661-46050iNCZ20201008

main89661-46060iNCZ25201008

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52130iNCZ2#200304

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52140iNCZ2#200304

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52090iNCZ2#200304

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
