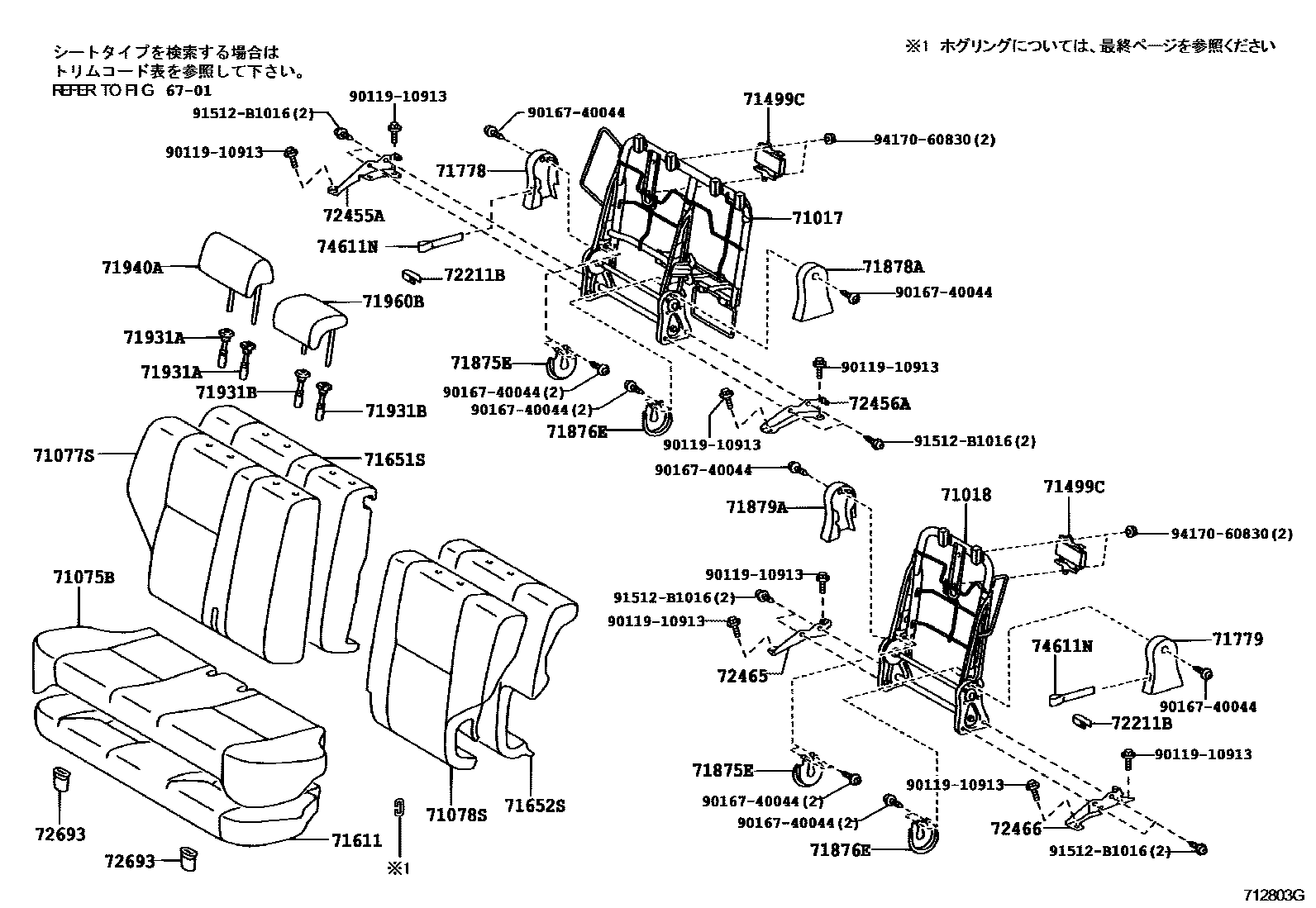

REAR SEAT & SEAT TRACK

0001 1 0002 1����� �-� 0003 1 0004 1�������

6701

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-46040iNCZ20¥22,400200304

main71017-46060iNCZ25¥15,900200304

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-46040iNCZ20¥20,600200304

main71018-46060iNCZ25¥19,400200304

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-46230-B0iNCZ20200304-200612

MEDIUM GRAY,TRIM1#

sub71075-46231¥39,900

main71075-46230-E0iNCZ20200304-200612

IVORY,TRIM4#

sub71075-46231¥39,900

main71075-46250-B0iNCZ25200304-200612

MEDIUM GRAY,TRIM1#

sub71075-46251¥39,900

main71075-46250-E0iNCZ25200304-200612

IVORY,TRIM4#

sub71075-46251¥39,900

main71075-46320-E0iNCZ20200612-201008

IVORY,TRIM4#

sub71075-46321¥39,800

main71075-46321-E0iNCZ20201008-201104

IVORY,TRIM4#

main71075-46330-E0iNCZ25200612-201008

IVORY,TRIM4#

sub71075-46331¥39,800

main71075-46331-E0iNCZ25201008-201104

IVORY,TRIM4#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-46140-B0iNCZ20200304-200612

MEDIUM GRAY,TRIM1#

sub71077-46141¥37,800

main71077-46140-E1iNCZ20200304-200612

IVORY,TRIM4#

sub71077-46141¥37,800

main71077-46170-B0iNCZ25200304-200307

MEDIUM GRAY,TRIM1#

main71077-46170-E1iNCZ25200304-200307

IVORY,TRIM4#

main71077-46171-B0iNCZ25200307-200612

MEDIUM GRAY,TRIM1#

sub71077-46172¥27,300

main71077-46171-E1iNCZ25200307-200612

IVORY,TRIM4#

sub71077-46172¥27,300

main71077-46230-E0iNCZ20200612-201008

IVORY,TRIM4#

sub71077-46231¥37,600

main71077-46231-E0iNCZ20201008-201104

IVORY,TRIM4#

main71077-46260-E0iNCZ25200612-201008

IVORY,TRIM4#

sub71077-46261¥27,100

main71077-46261-E0iNCZ25201008-201104

IVORY,TRIM4#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-46160-B0iNCZ20200304-200612

MEDIUM GRAY,TRIM1#

sub71078-46161¥27,300

main71078-46160-E1iNCZ20200304-200612

IVORY,TRIM4#

sub71078-46161¥27,300

main71078-46210-B0iNCZ25200304-200307

MEDIUM GRAY,TRIM1#

main71078-46210-E1iNCZ25200304-200307

IVORY,TRIM4#

main71078-46211-B0iNCZ25200307-200612

MEDIUM GRAY,TRIM1#

sub71078-46212¥37,800

main71078-46211-E1iNCZ25200307-200612

IVORY,TRIM4#

sub71078-46212¥37,800

main71078-46260-E0iNCZ20200612-201008

IVORY,TRIM4#

sub71078-46261¥27,100

main71078-46261-E0iNCZ20201008-201104

IVORY,TRIM4#

main71078-46290-E0iNCZ25200612-201008

IVORY,TRIM4#

sub71078-46291¥37,600

main71078-46291-E0iNCZ25201008-201104

IVORY,TRIM4#

71499CDAMPER, REAR SEAT CUSHION SPRING

main71499-46010iNCZ20¥4,400200304

71611PAD, REAR SEAT CUSHION

main71503-46030iNCZ20¥38,900200304-200503

sub71503-46031¥38,900

main71503-46031iNCZ20¥38,900200504-201104

main71503-46040iNCZ25¥40,800200304-201104

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-46040iNCZ20¥18,200200304

main71651-46050iNCZ25¥11,600200304

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-46040iNCZ20¥11,600200304

main71652-46060iNCZ25¥16,100200304

71778COVER, REAR SEAT SIDE HINGE MALE, RH

main71778-46010-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main71778-46010-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

71779COVER, REAR SEAT SIDE HINGE MALE, LH

main71779-46030-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main71779-46030-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

71875ECOVER, RECLINING ADJUSTER INSIDE, RH

main71875-28060iNCZ20¥710200304

71876ECOVER, RECLINING ADJUSTER INSIDE, LH

main71876-28060iNCZ20¥710200304

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-46010-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main71878-46010-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

71879ACOVER, REAR SEAT RECLINING, INNER LH

main71879-46010-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main71879-46010-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

71931ASUPPORT, REAR SEAT HEADREST

main71956-47010-B8iNCZ2#200304-201104

sub71956-02040¥1,030

sub71956-47010¥1,020

main71956-47010-E1iNCZ2#200304-201104

sub71956-02040¥1,030

sub71956-47010¥1,020

main71970-47010-B7iNCZ2#200304-201104

sub71970-02040¥1,160

sub71970-47010¥1,260

main71970-47010-E1iNCZ2#200304-201104

sub71970-02040¥1,160

sub71970-47010¥1,260

71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST

main71956-47010-B8iNCZ2#200304-201104

sub71956-02040¥1,030

sub71956-47010¥1,020

main71956-47010-E1iNCZ2#200304-201104

sub71956-02040¥1,030

sub71956-47010¥1,020

main71970-47010-B7iNCZ2#200304-201104

sub71970-02040¥1,160

sub71970-47010¥1,260

main71970-47010-E1iNCZ2#200304-201104

sub71970-02040¥1,160

sub71970-47010¥1,260

71940AHEADREST ASSY, REAR SEAT

main71940-46080-B2iNCZ2#200304-201008

MEDIUM GRAY,TRIM1#

sub71940-46081¥27,600

main71940-46080-E1iNCZ2#200304-201008

IVORY,TRIM4#

sub71940-46081¥27,600

main71940-46081-E1iNCZ2#201008-201104

IVORY,TRIM4#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-46010-B2iNCZ2#200304-201008

MEDIUM GRAY,TRIM1#

sub71960-46011¥22,100

main71960-46010-E1iNCZ2#200304-201008

IVORY,TRIM4#

sub71960-46011¥22,100

main71960-46011-E1iNCZ2#201008-201104

IVORY,TRIM4#

72211BHANDLE, SEAT TRACK ADJUSTING

main72211-13020-B0iNCZ20200304-201104

SHADOW GRAY,TRIM1#

sub72211-13020¥360

main72211-13020-E0iNCZ20200304-201104

FAWN,TRIM4#

sub72211-13020¥360

72455ABRACKET, SEAT FRAME SET, NO.1

main72455-46010iNCZ20¥2,160200304

72456ABRACKET, SEAT FRAME SET, NO.2

main72456-46010iNCZ20¥2,030200304

72465BRACKET, SEAT FRAME SET, NO.3

main72465-46010iNCZ20¥2,030200304

72466BRACKET, SEAT FRAME SET, NO.4

main72466-46010iNCZ20¥2,160200304

72693HOOK, REAR SEAT CUSHION LOCK

main72693-10040iNCZ2#¥260200304

main72693-10040iNCZ2#¥260200304

main72693-10040iNCZ2#¥260200304

main72693-10040iNCZ2#¥260200304

main72693-10040iNCZ2#¥260200304

main72693-10040iNCZ2#¥260200304

main72693-10040iNCZ2#¥260200304

74611NSTRAP, ASSIST GRIP

main74611-46010-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main74611-46010-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

9011910913

main90119-10913¥110

9016740044

main90167-40044¥70

91512B1016

main91512-B1016¥130

9417060830

main94170-60830¥110

31 parts on this diagram · 4 diagrams in section
