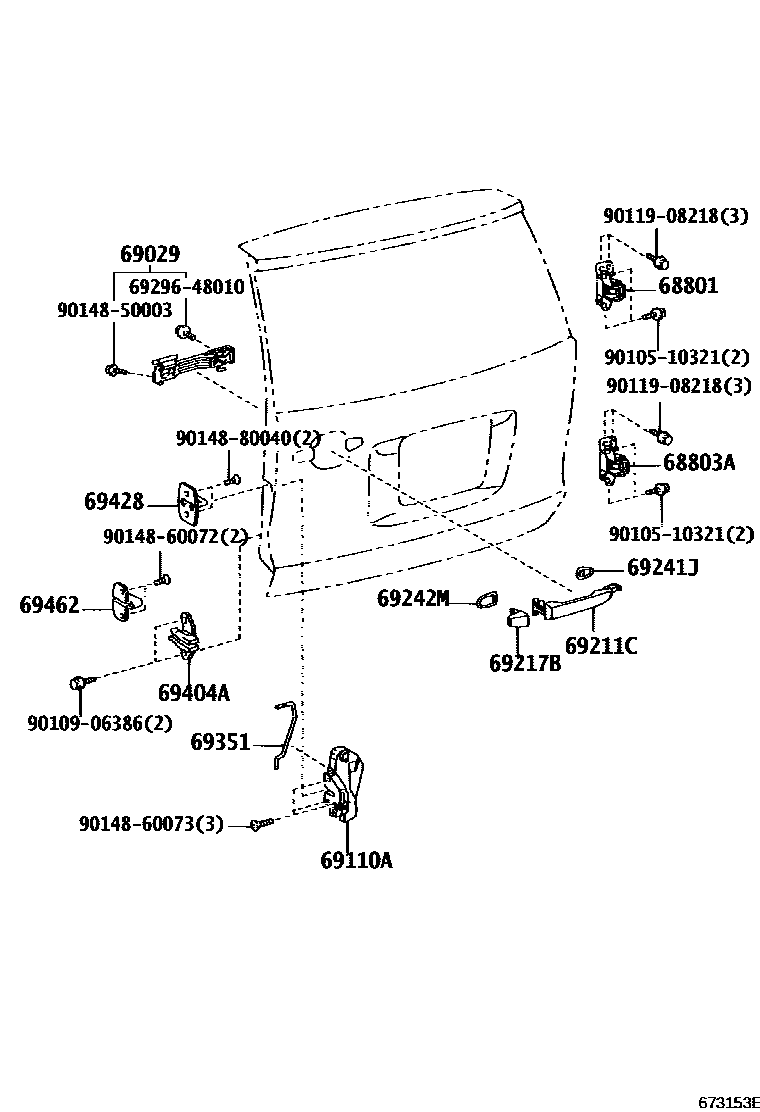

BACK DOOR LOCK & HANDLE

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-46040iNCZ2#200304-201104

68803AHINGE SUB-ASSY, BACK DOOR, LOWER RH

main68801-46040iNCZ2#200304-201104

69029FRAME SUB-ASSY, BACK DOOR OUTSIDE HANDLE

main69029-60010iNCZ2#200304

69110ALOCK ASSY, BACK DOOR W/MOTOR

main69110-46030iNCZ2#200304-200508

sub69110-46040

main69110-46040iNCZ2#200508

69211CHANDLE, BACK DOOR OUTSIDE

main69211-28070-A3iNCZ2#200612-201104

WHITE PEARL CS.,070

sub69211-28070

main69211-28070-B8iNCZ2#200304-200612

GRAY,040 ,1D9 ,3P0 ,3Q9 ,594 ,6T4 ,8N8 ,8R2

sub69211-28070

main69211-28070-C0iNCZ2#200812-201104

BLACK MC.,209

sub69211-28070

main69211-28070-L1iNCZ2#200612-201101

PALE ORANGE MICA METALLIC,4S3

sub69211-28070

main69211-28070-P2iNCZ2#200612-201104

SILVER ME.,1F7

sub69211-28070

main69211-28070-A0iNCZ2#200304-200612

sub69211-28070

main69211-28070-A7iNCZ2#200404-200508

sub69211-28070

main69211-28070-B9iNCZ2#200304-200612

sub69211-28070

main69211-28070-F4iNCZ2#200304-200612

sub69211-28070

69217BCOVER, BACK DOOR OUTSIDE HANDLE

main69217-60020-A1iNCZ2#200612-201104

WHITE PEARL CS.,070

sub69217-60020

main69217-60020-B7iNCZ2#200304-200612

GRAY,040 ,1D9 ,3P0 ,3Q9 ,594 ,6T4 ,8N8 ,8R2

sub69217-60020

main69217-60020-C1iNCZ2#200812-201104

BLACK MC.,209

sub69217-60020

main69217-60020-D2iNCZ2#200612-201104

SUPER RED 5,3P0

sub69217-60020

main69217-60020-G4iNCZ2#200612-201104

LT.GREEN M.M.,6T4

sub69217-60020

main69217-60020-J8iNCZ2#200612-201104

DK.BLUE MC.,8N8

sub69217-60020

main69217-60020-L2iNCZ2#200612-201101

PALE ORANGE MICA METALLIC,4S3

sub69217-60020

main69217-60020-P0iNCZ2#200612-201104

SILVER ME.,1F7

sub69217-60020

main69217-60020-R0iNCZ2#200612-201104

LT.BLUE M.M.,8R2

sub69217-60020

main69217-60020-A2iNCZ2#200304-200612

sub69217-60020

main69217-60020-A6iNCZ2#200404-200508

sub69217-60020

main69217-60020-B8iNCZ2#200304-200612

sub69217-60020

main69217-60020-F2iNCZ2#200304-200612

sub69217-60020

69241JPAD, BACK DOOR OUTSIDE HANDLE, FRONT

main69241-28060iNCZ2#200304

69242MPAD, BACK DOOR OUTSIDE HANDLE, REAR

main69242-28020iNCZ2#200304

69351ROD, BACK DOOR LOCK CONTROL, UPPER

main69378-46010iNCZ2#200304

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main69403-46010iNCZ2#200304-200908

sub69403-46011

main69403-46011iNCZ2#200909

69428PLATE, BACK DOOR LOCK BASE

main69410-60020iNCZ2#200304

69462STOPPER, BACK DOOR SIDE MALE, LH

main69461-60010iNCZ2#200304

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9010510321

main90105-10321

9010906386

main90109-06386

9011908218

main90119-08218

9014850003

main90148-50003

9014860072

main90148-60072

9014860073

main90148-60073

9014880040

main90148-80040

20 parts on this diagram · 1 diagram in section
