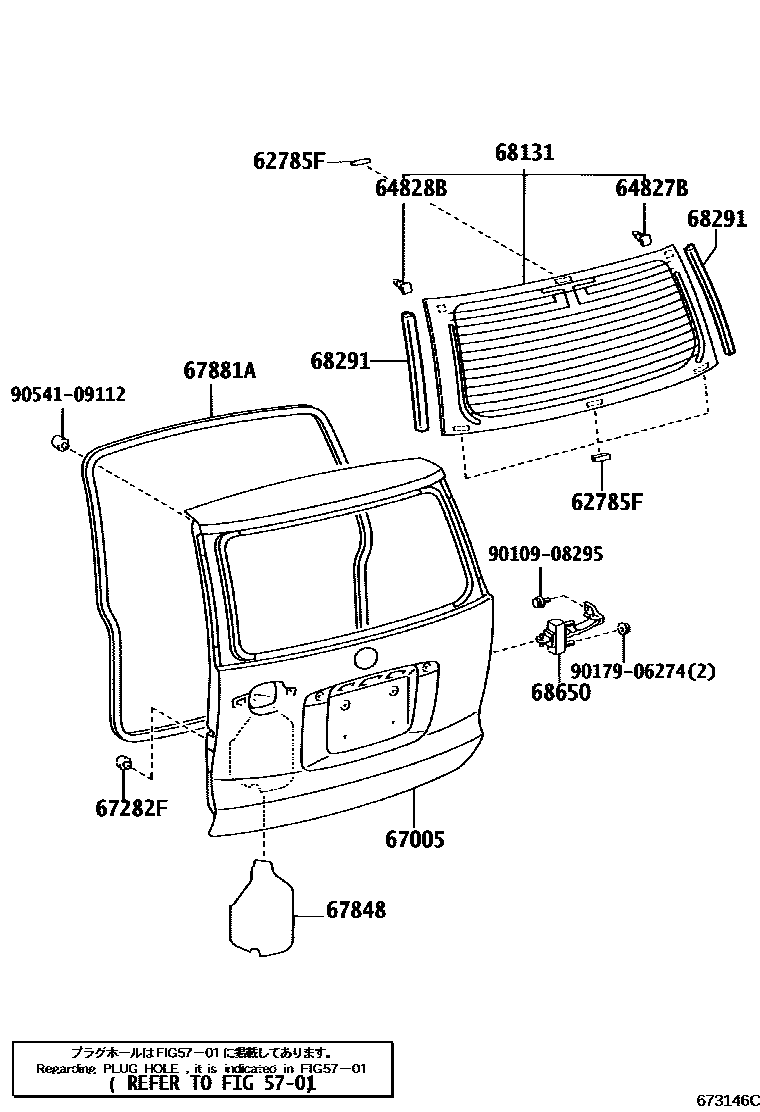

BACK DOOR PANEL & GLASS

0001 1������� 0002 1������

5701

62785FSPACER, BACK DOOR GLASS

main62785-60030×4iNCZ2#200304

64827BCLIP, BACK WINDOW GLASS, RH

main64827-46010iNCZ2#200304

64828BCLIP, BACK WINDOW GLASS, LH

main64828-46010iNCZ2#200304

67005PANEL SUB-ASSY, BACK DOOR

main67005-46060supersedes 67005-46050iNCZ2#200304-200508

main67005-46061iNCZ2#200612-201008

main67005-46070supersedes 67005-46050iNCZ2#200304-200508

main67005-46071supersedes 67005-46051iNCZ2#201101-201104

main67005-46080supersedes 67005-46050iNCZ2#200304-200508

main67005-46081iNCZ2#200508-200612

67282FSTOPPER, BACK DOOR, LWR LH

main67282-46010iNCZ2#200304

67848COVER, BACK DOOR SERVICE HOLE, LH

main67848-46010iNCZ2#200304

67881AWEATHERSTRIP, BACK DOOR

main67881-46020iNCZ2#200304

68131GLASS, BACK DOOR

main68105-46110iNCZ2#200304-200612

main68105-46130iNCZ2#200304-200612

main68105-46140supersedes 68105-46120iNCZ2#200304

68291WEATHERSTRIP, BACK DOOR GLASS

main75573-46030×2iNCZ2#200304-201104

68650CHECK ASSY, BACK DOOR

main68650-46020iNCZ2#200304-201001

main68650-46021iNCZ2#201001

9010908295

main90109-08295

9017906274

main90179-06274

9054109112

main90541-09112

14 parts on this diagram · 2 diagrams in section
