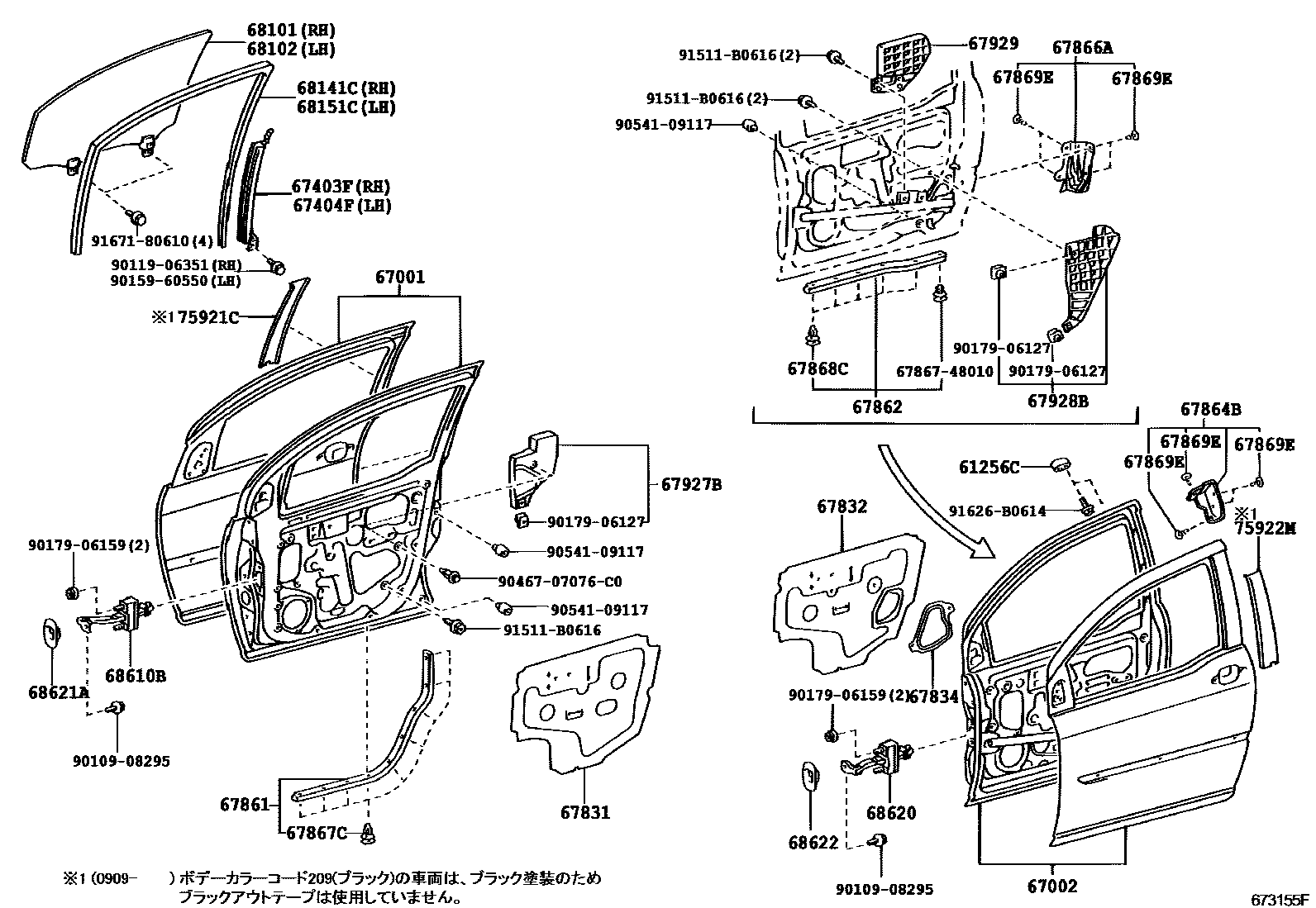

FRONT DOOR PANEL & GLASS
61256CPLATE, ROOF SIDE RAIL, OUTER LH
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67866AWEATHERSTRIP, FRONT DOOR, NO.3 LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869ECLIP, FRONT DOOR WEATHERSTRIP
67927BCUSHION, SEPARATION DOOR STIFFENER, NO.1
67928BCUSHION, SEPARATION DOOR STIFFENER, NO.2
67929CUSHION, SEPARATION DOOR STIFFENER, NO.3
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
6786748010CLIP, DOOR WEATHERSTRIP
main67867-48010
9010908295
main90109-08295
9011906351
main90119-06351
9015960550
main90159-60550
9017906127
main90179-06127
9017906159
main90179-06159
9046707076C0
main90467-07076C0
9054109117
main90541-09117
91511B0616
main91511-B0616
91626B0614
main91626-B0614
9167180610
main91671-80610
39 parts on this diagram · 3 diagrams in section
