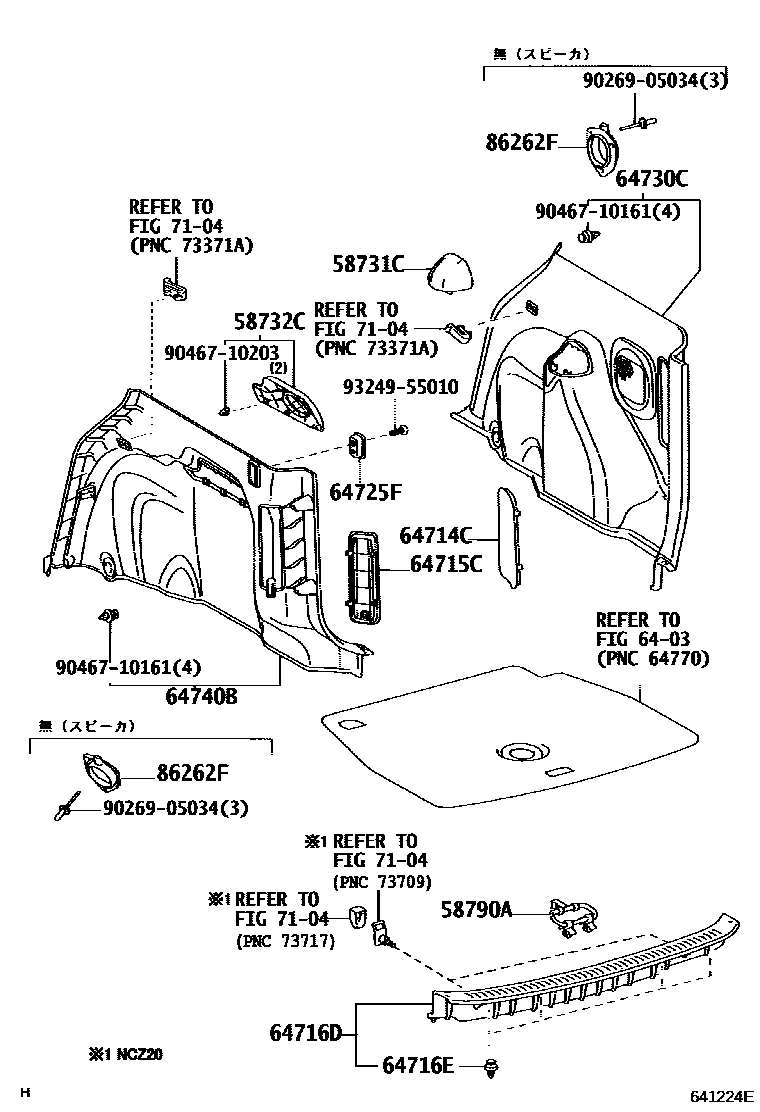

DECK BOARD & DECK TRIM COVER

58731CCAP, REAR ABSORBER

main58731-46030-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main58731-46030-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

main58731-46040-B0iNCZ25200304-201104

MD.GRAY,TRIM1#

main58731-46040-E0iNCZ25200304-201104

MD.NEUTRAL BONE,TRIM4#

58732CCAP, REAR ABSORBER

main58732-46030-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main58732-46030-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

main58732-46040-B0iNCZ25200304-201104

MD.GRAY,TRIM1#

main58732-46040-E0iNCZ25200304-201104

MD.NEUTRAL BONE,TRIM4#

58790ACARRIER ASSY, JACK

6403

64714CCOVER, DECK SIDE TRIM, RH

main64714-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main64714-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

64715CCOVER, DECK SIDE TRIM, LH

main64715-46020-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main64715-46020-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

64716DCOVER, DECK TRIM, REAR

main64716-46030-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main64716-46030-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

main64716-46040-B0iNCZ25200304-201104

MD.GRAY,TRIM1#

main64716-46040-E0iNCZ25200304-201104

MD.NEUTRAL BONE,TRIM4#

64716ECLIP(FOR DECK TRIM REAR COVER)

main90467-10161×4iNCZ2#200304

64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1

main63496-12010-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main63496-12010-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

64730CBOARD, DECK TRIM SIDE, RH

main64731-46040-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main64731-46040-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

main64731-46050-B0iNCZ25200304-201104

MD.GRAY,TRIM1#

main64731-46050-E0iNCZ25200304-201104

MD.NEUTRAL BONE,TRIM4#

64740BBOARD, DECK TRIM SIDE, LH

main64732-46040-B0iNCZ20200304-201104

MD.GRAY,TRIM1#

main64732-46040-E0iNCZ20200304-201104

MD.NEUTRAL BONE,TRIM4#

main64732-46050-B0iNCZ25200304-201104

MD.GRAY,TRIM1#

main64732-46050-E0iNCZ25200304-201104

MD.NEUTRAL BONE,TRIM4#

7104

86262FCOVER, DOOR SPEAKER

main86262-13010×2iNCZ2#200304

9026905034

main90269-05034

9046710161

main90467-10161

9046710203

main90467-10203

9324955010

main93249-55010

17 parts on this diagram · 1 diagram in section
