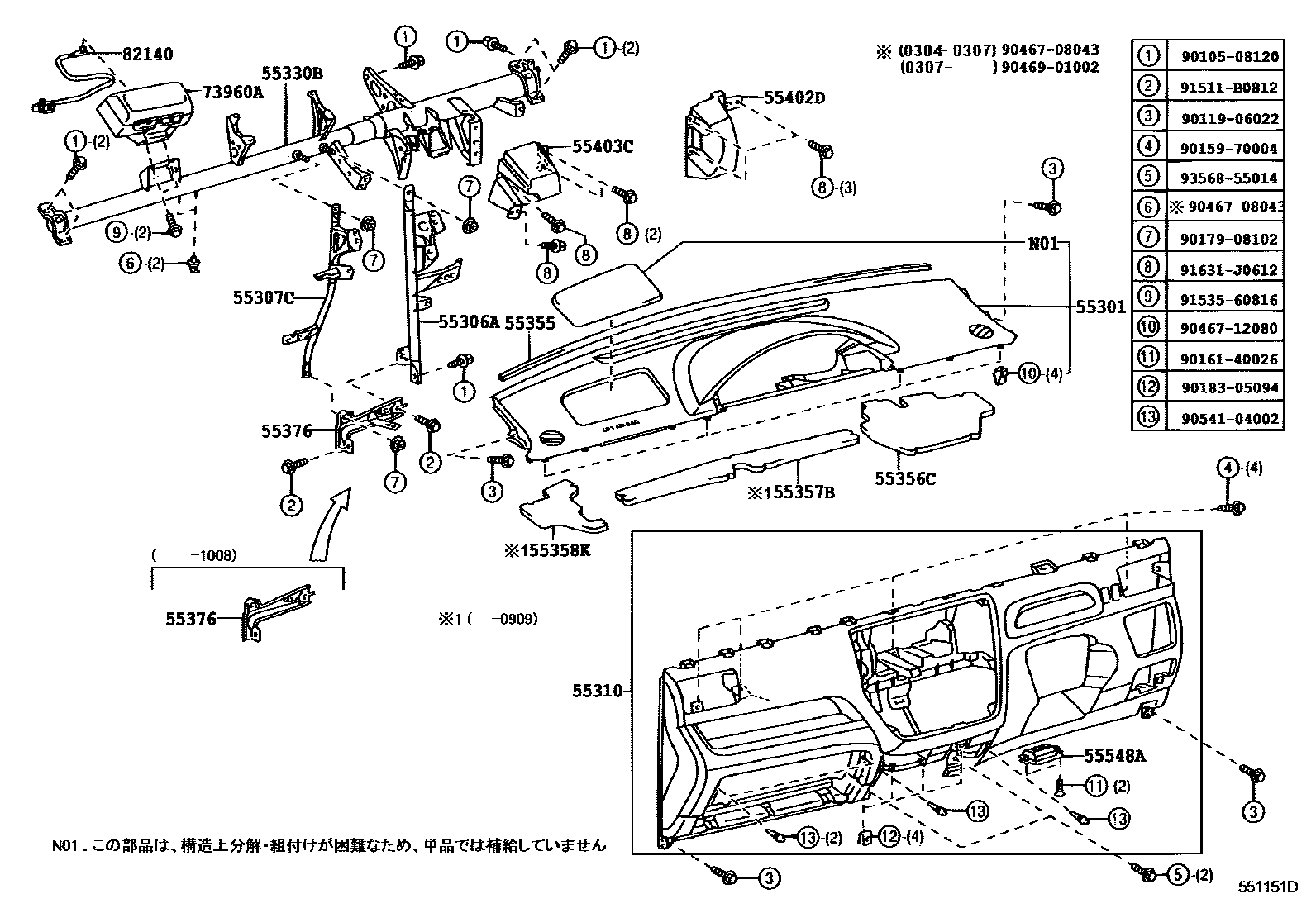

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55301PANEL SUB-ASSY, INSTRUMENT

main55300-46010-C0iNCZ2#200304-201104

BLACK,TRIM1#

main55300-46010-E0iNCZ2#200304-201104

ORCHID BROWN,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-46020iNCZ2#200304

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-46020iNCZ2#200304-200506

sub55307-46030

main55307-46030iNCZ2#200506

55310PANEL ASSY, INSTRUMENT, LOWER

main55310-46010-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main55310-46010-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-46020iNCZ2#200304-200801

sub55330-46021

main55330-46021iNCZ2#200802-201104

55355CUSHION, INSTRUMENT PANEL, NO.1

main55349-52060iNCZ2#200702

main55355-52012iNCZ2#200304-200701

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-46010iNCZ2#200304

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-46010iNCZ2#200304-200909

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-46010iNCZ2#200304-200909

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55309-46020iNCZ2#201008

main55376-46010iNCZ2#200304-201008

sub55309-46020

55402DPAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1

main55402-46010iNCZ2#200304

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-46010iNCZ2#200304

55548ACOVER, INSTRUMENT PANEL HOLE

main55548-46010-B0iNCZ2#200304-201104

MD.GRAY,TRIM1#

main55548-46010-E0iNCZ2#200304-201104

MD.NEUTRAL BONE,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-46010iNCZ2#200304

82140WIRE ASSY, INSTRUMENT PANEL

main82140-46010iNCZ2#200304

9010508120

main90105-08120

9011906022

main90119-06022

9015970004

main90159-70004

9016140026

main90161-40026

9017908102

main90179-08102

9018305094

main90183-05094

9046708043

main90467-08043

9046712080

main90467-12080

9046901002

main90469-01002

9054104002

main90541-04002

91511B0812

main91511-B0812

9153560816

main91535-60816

91631J0612

main91631-J0612

9356855014

main93568-55014

29 parts on this diagram · 4 diagrams in section
