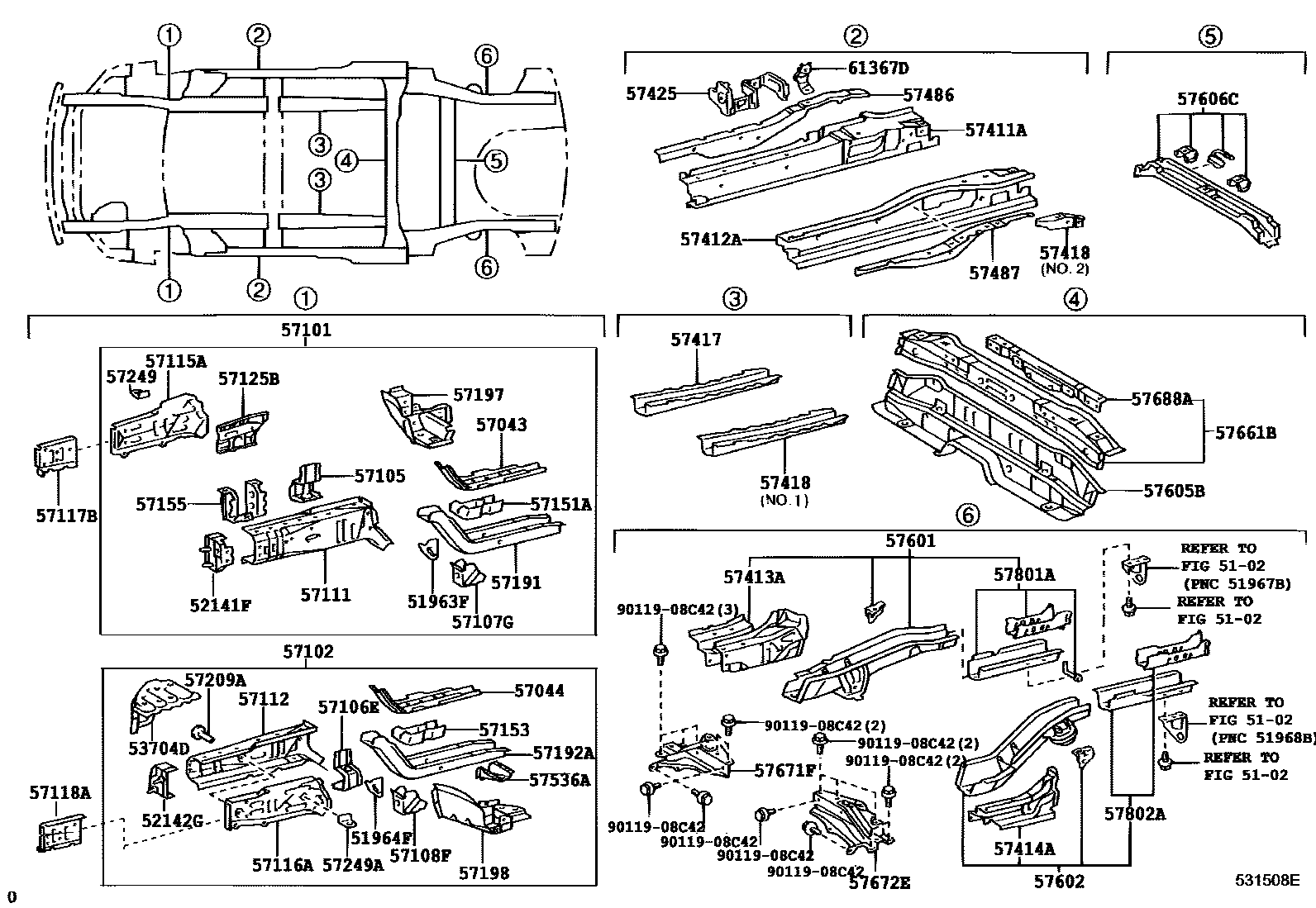

FLOOR SIDE MEMBER

5102

51963FHOOK, TRANSPORT

main51963-52030i200304

51964FHOOK, TRANSPORT, LH

main51963-52030i200304

52141FARM, FRONT BUMPER, RH

main52141-46020i200304

52142GARM, FRONT BUMPER, LH

main52142-52010i200304

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-52010i200304

57043REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-46010i200304

57044REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-46010i200304

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-46901i200304-201104

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-46901i200304-201104

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-52010i200304

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57105-52010i200304

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-52020i200304

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-52020i200304

57111MEMBER, FRONT SIDE, RH

main57111-52010i200304

57112MEMBER, FRONT SIDE, LH

main57112-52010i200304

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-52010i200304

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-52010i200304

57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH

main57117-52010i200304

sub57117-52020

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-52010i200304

57125BREINFORCEMENT, FRONT SIDE MEMBER, RH

main57127-46010i200304

57151AREINFORCEMENT, FRONT SIDE MEMBER, NO.1 RH

main57151-46010i200304

57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH

main57153-52010i200304

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-52011i200304-200412

main57155-52012i200412

57191PLATE, FRONT SIDE MEMBER, OUTER REAR RH

main57191-52900i200304

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52011i200304

57197BOX, TORQUE, FRONT RH

main57077-52030i200304

57198BOX, TORQUE, FRONT LH

main57078-52030i200304

57209AMEMBER SUB-ASSY, ENGINE REAR MOUNTING

main57209-16090i200304

57249BRACKET, FLEXIBLE HOSE, NO.1

main57249-10040i200304

57249ABRACKET, FREXIBLE HOUSE, NO.1, LH

main57249-10040i200304

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-46020i200304

sub57411-46901

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-46020i200304

sub57412-46901

57413AMEMBER, FLOOR SIDE, INNER REAR RH

57414AMEMBER, FLOOR SIDE, INNER REAR LH

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-52021

main57417-52031

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-46010

main57417-52021

main57417-52031

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-46010i200304

57486REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH

main57486-46020i200304

57487REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH

main57487-46010i200304

57536ABRACE, FRONT FLOOR, LH

main57536-46010i200304

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-46050i200304

main57601-46040supersedes 57601-46030i200304

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-46050i200304

main57602-46040supersedes 57602-46030i200304

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52010i200304

main57605-52040i200304

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52020i200304

main57606-52040supersedes 57606-52030i200304

57661BMEMBER, REAR FLOOR CROSS, FRONT

main58202-52020supersedes 58202-52030i200304

57671FBRACE, REAR FLOOR NO.1 CROSSMEMBER, RH

main57671-46020i200304

main57671-46030i200304

57672EBRACE, REAR FLOOR NO.1 CROSSMEMBER, LH

main57672-46020i200304

main57672-46030i200304

57688AREINFORCEMENT, REAR FLOOR CROSSMEMBER

main57688-52010i200304

main57688-52020i200304

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57801-46010i200304

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57802-46010i200304

61367DREINFORCE, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-46010i200304

9011908C42

main90119-08C42

53 parts on this diagram · 3 diagrams in section
