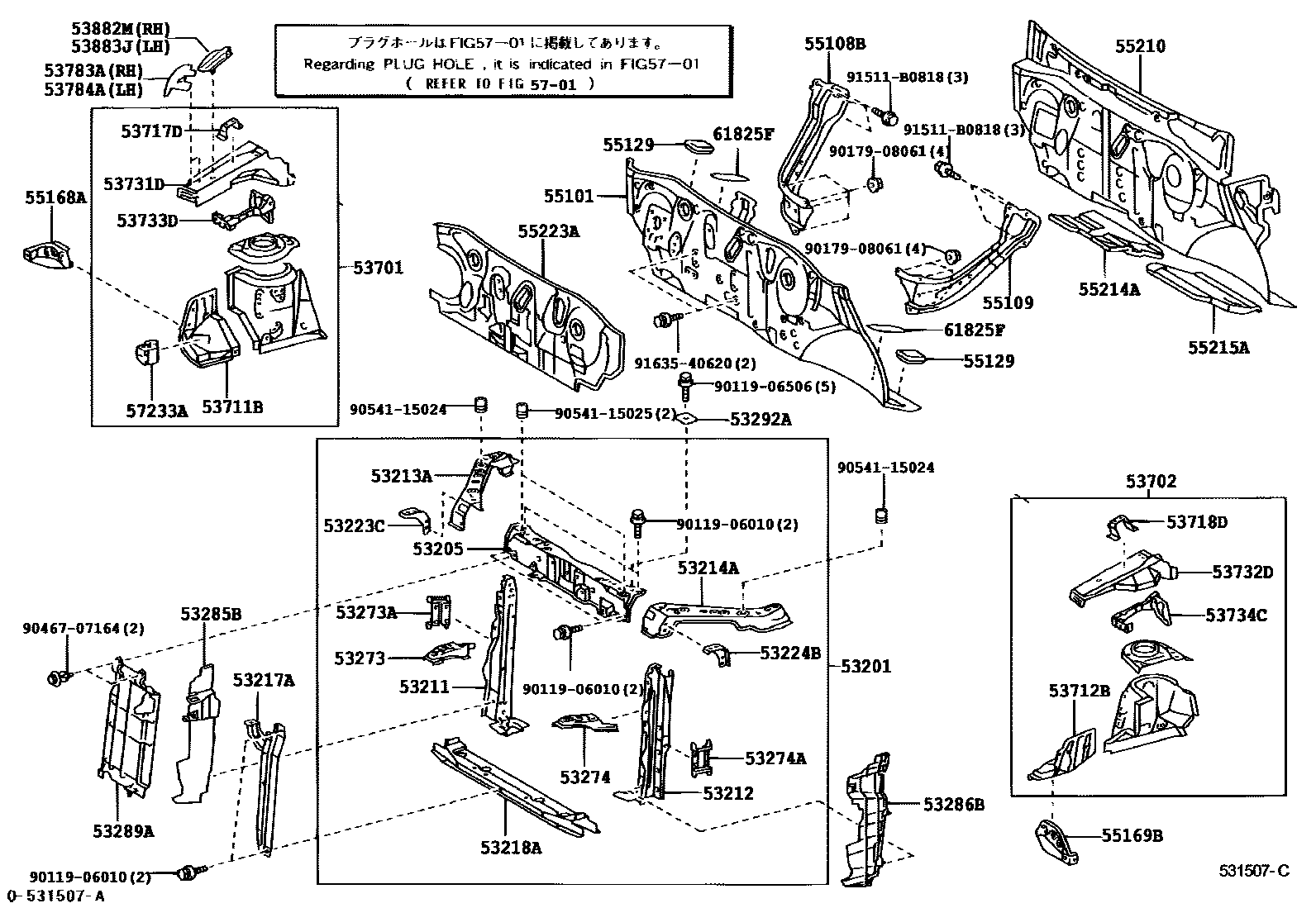

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53217ABRACE, HOOD LOCK SUPPORT
53218ASUPPORT, RADIATOR, LOWER
53223CBRACKET, RADIATOR GRILLE MOUNTING, RH
53224BBRACKET, RADIATOR GRILLE MOUNTING, LH
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53289ACOVER, RADIATOR SUPPORT OPENING
53292ASEAL, RADIATOR SUPPORT, UPPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53783AINSULATOR, APRON FRONT FENDER, RH
53784AINSULATOR, APRON FRONT FENDER, LH
53882MSEAL, FRONT FENDER
53883JSEAL, FRONT FENDER, LH
55108BBRACE SUB-ASSY, DASH TO FRAME, RH
55109BRACE SUB-ASSY, DASH TO FRAME, LH
55129COVER, DASH PANEL HOLE
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55214APAD, DASH PANEL INSULATOR, NO.2
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
5701
57233ARETAINER, ENGINE FRONT SUPPORT, RH
61825FPLATE, NOISE CONTROL
9011906010
main90119-06010
9011906506
main90119-06506
9017908061
main90179-08061
9046707164
main90467-07164
9054115024
main90541-15024
9054115025
main90541-15025
91511B0818
main91511-B0818
9163540620
main91635-40620
53 parts on this diagram · 1 diagram in section
