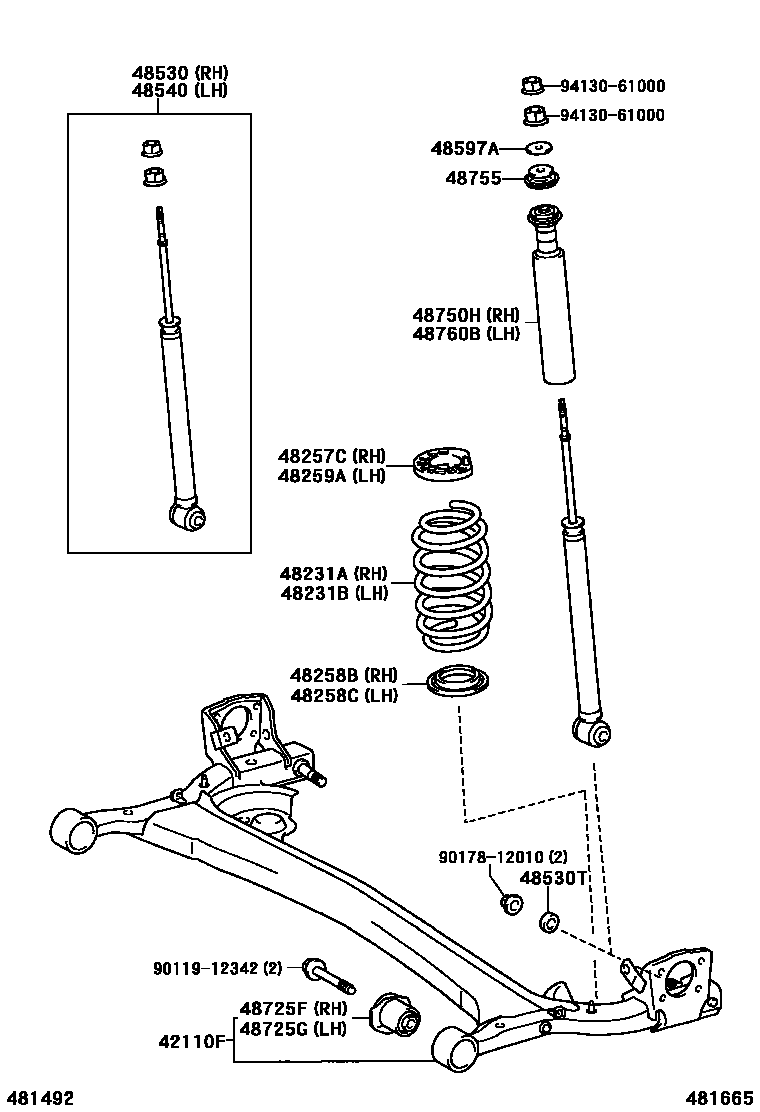

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42110-46020iNCZ20200304

48231ASPRING, COIL, REAR RH

main48231-46040iNCZ25200304

main48231-46050supersedes 48231-46030iNCZ20200304

48231BSPRING, COIL, REAR LH

main48231-46040iNCZ25200304

main48231-46050supersedes 48231-46030iNCZ20200304

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-52010iNCZ20200304

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-52010iNCZ20200304

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-52010iNCZ20200304

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-52010iNCZ20200304

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-49375iNCZ25200304

main48530-49365supersedes 48530-49355iNCZ20200304

48530TSPACER(FOR REAR SHOCK ABSORBER)

main90560-12065×2iNCZ20200304

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-49375iNCZ25200304

main48530-49365supersedes 48530-49355iNCZ20200304

48597ARETAINER, REAR SHOCK ABSORBER CUSHION

main90201-10320×2iNCZ20200304

48725FBUSH, REAR AXLE CARRIER, RH

main48725-46020iNCZ20200304

48725GBUSH, REAR AXLE CARRIER, LH

main48725-46020iNCZ20200304

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-46020iNCZ20200304

main48750-52050iNCZ25200304

48755SUPPORT, REAR SUSPENSION

main48755-46010×2iNCZ20200304

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-46020iNCZ20200304

main48750-52050iNCZ25200304

9011912342

main90119-12342

9017812010

main90178-12010

9413061000

main94130-61000

19 parts on this diagram · 2 diagrams in section
