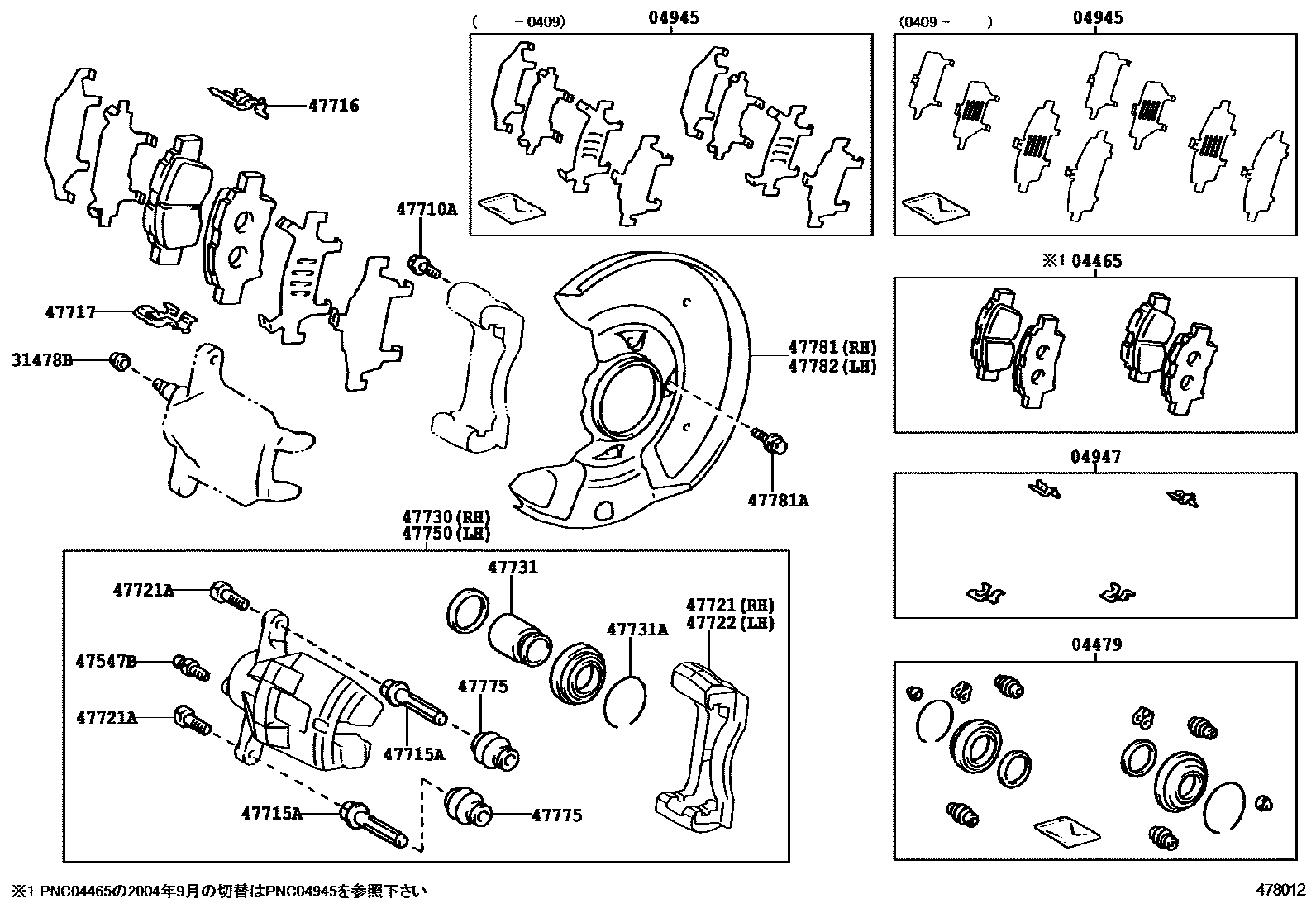

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52170iNCZ2#200304-200409

main04465-52210iNCZ2#200409

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-47020iNCZ2#200304

sub04478-47050

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNCZ2#200304-200409

main04945-52060iNCZ2#200409

04947FITTING KIT, DISC BRAKE, FRONT

main04947-47010iNCZ2#200304

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×4iNCZ2#200304

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNCZ2#200304

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314×4iNCZ2#200304-201104

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010×4iNCZ2#200304

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-12070×2iNCZ2#200304

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-12030×2iNCZ2#200304

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52170iNCZ2#200304

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNCZ2#200304

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52170iNCZ2#200304

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52170iNCZ2#200304

47731PISTON, FRONT DISC BRAKE

main47731-12170×2iNCZ2#200304

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-66001×2iNCZ2#200304

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52170iNCZ2#200304

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52010×4iNCZ2#200304

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52020iNCZ2#200304-201104

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNCZ2#200304-201104

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52020iNCZ2#200304-201104

21 parts on this diagram · 1 diagram in section
