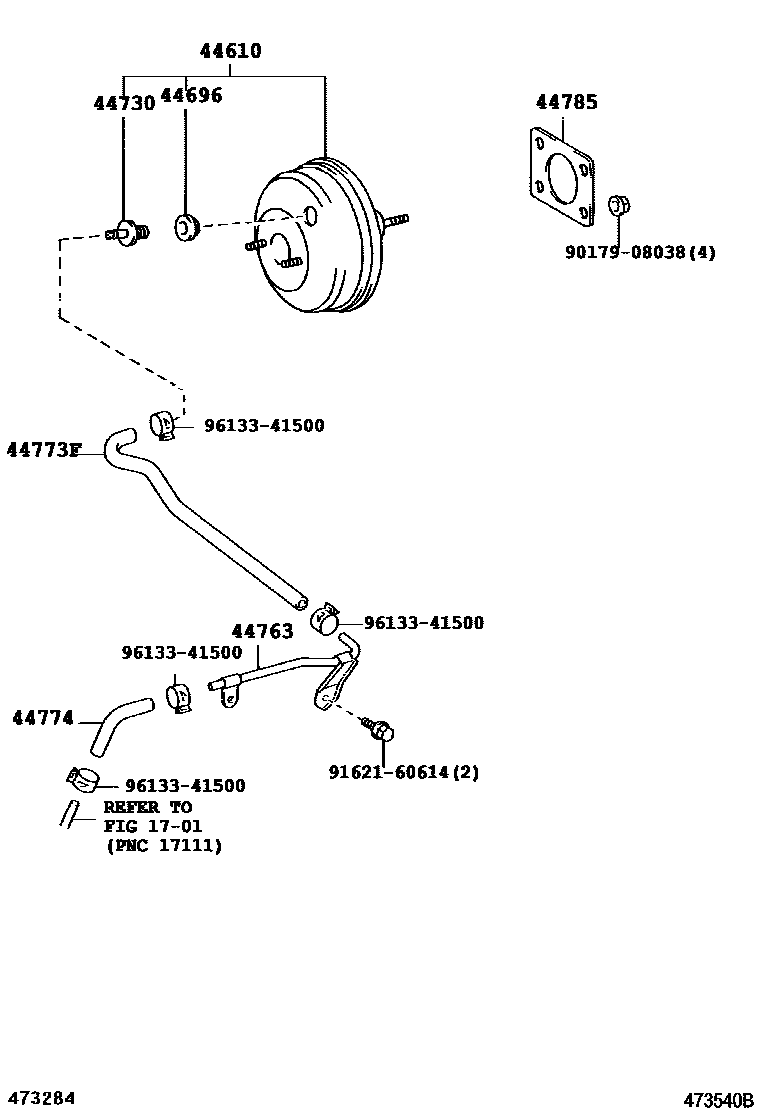

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-46030iNCZ25200304-200612

main44610-46052iNCZ25200612-201104

main44610-46040supersedes 44610-46052iNCZ20200304-201104

44696GROMMET, CHECK VALVE

main90480-24439supersedes 90480-24439iNCZ25200304

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iNCZ2#200304-201104

44763TUBE, BOOSTER VACUUM

main44763-52010iNCZ2#200304

44773FHOSE, UNION TO CHECK VALVE

main44773-52080iNCZ2#200304

44774HOSE, UNION TO CONNECTOR TUBE

main95446-09130iNCZ2#200304

44785GASKET, BRAKE BOOSTER

main44785-16020iNCZ2#200304

9017908038

main90179-08038

9162160614

main91621-60614

9613341500

main96133-41500

11 parts on this diagram · 1 diagram in section
