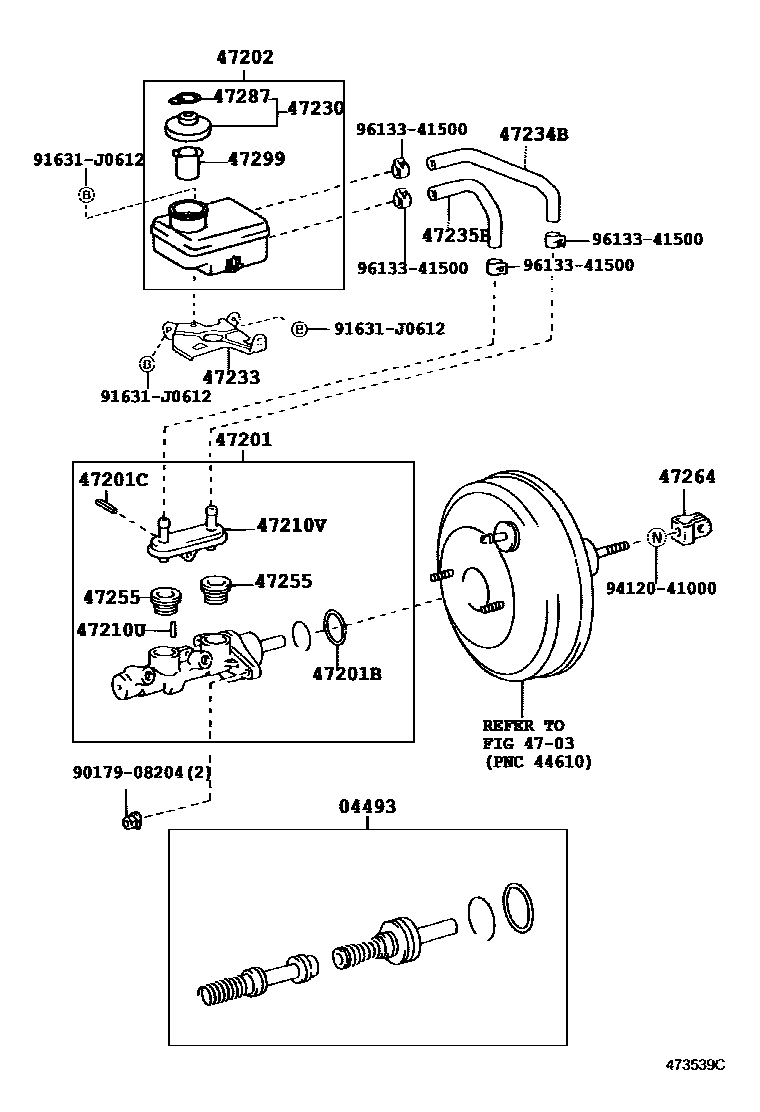

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-46010iNCZ20200304-201104

main04493-52020iNCZ25200304-200305

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-46040iNCZ20200304-200510

main47201-52180iNCZ25200304-200305

sub47201-46040

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iNCZ2#200304

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15804iNCZ2#200304

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-52090iNCZ20200304-200510

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iNCZ2#200304

47210VUNION(FOR BRAKE MASTER CYLINDER)

main90029-40407iNCZ2#200304

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-28240iNCZ2#200304

47233BRACKET, RESERVOIR

main47233-52010iNCZ2#200304

47234BTUBE, RESERVOIR, NO.1

main47234-46010iNCZ20200304-200510

main47234-52010iNCZ25200304-200612

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-46010iNCZ20200304-200510

main47235-52010iNCZ25200304-200612

47255GROMMET, MASTER CYLINDER RESERVOIR

main31417-35010iNCZ2#200304

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-63020iNCZ2#200304-201011

main47264-68010iNCZ2#201012

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iNCZ2#200304

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-24010iNCZ2#200304

9017908204

main90179-08204

91631J0612

main91631-J0612

9412041000

main94120-41000

9613341500

main96133-41500

20 parts on this diagram · 1 diagram in section
