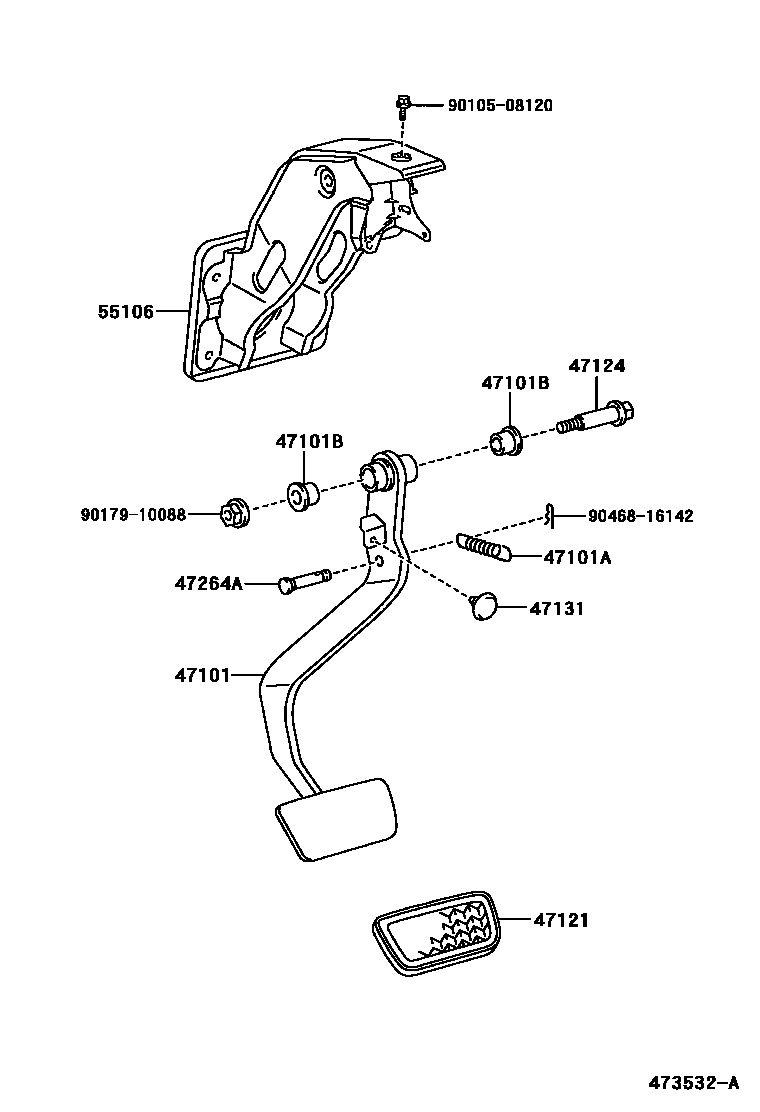

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-46040iNCZ2#¥2,560200304

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14077iNCZ2#¥180200304

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNCZ2#¥120200304

47121PAD, BRAKE PEDAL

main47121-52010iNCZ2#¥260200304

47124SHAFT, BRAKE PEDAL

main90109-10167iNCZ2#¥190200304

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iNCZ2#¥210200304

sub90541-06036¥110

47264APIN(FOR PUSH ROD)

main90249-08297iNCZ2#¥230200304

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-46050iNCZ2#¥3,370200304-201104

9010508120

main90105-08120¥90

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

11 parts on this diagram · 1 diagram in section
