TRANSFER ASSEMBLY & GASKET KIT

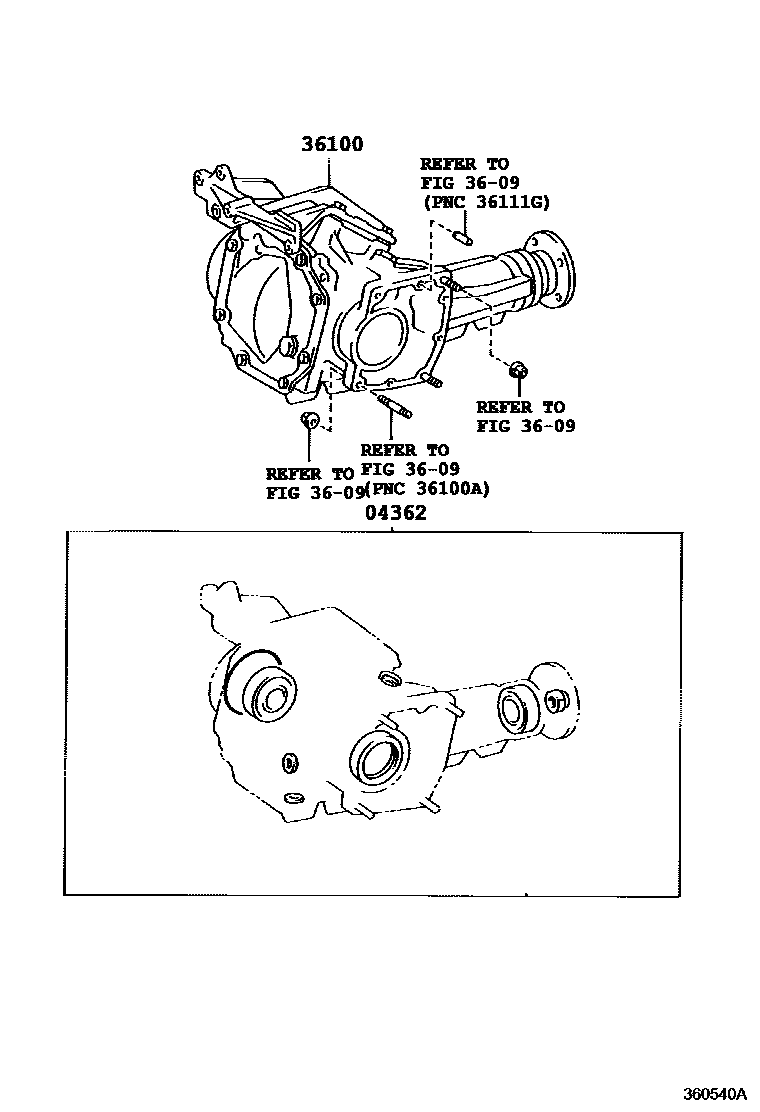

Parts diagram
04362GASKET KIT, TRANSFER OVERHAUL
main04362-52010i200304-200409
sub04362-52011
main04362-52011i200409-201104
main04362-52040i200508-200806
sub04362-52011
3609
36100TRANSFER ASSY
main36100-52010i200304-201104
sub36100-52012

3 parts on this diagram · 1 diagram in section
