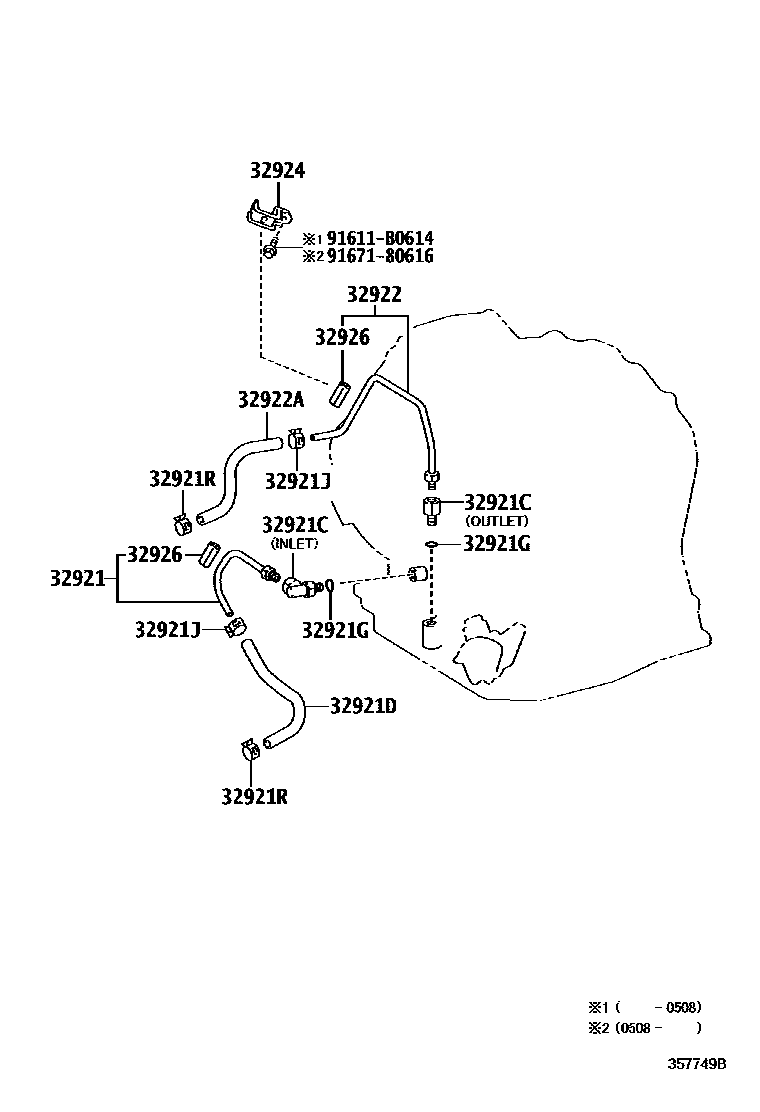

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-52040iNCZ2#200304-200508

main32921-52060iNCZ2#200508

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iNCZ2#200304

main90407-14003iNCZ2#200304

32921DHOSE(FOR OIL COOLER INLET)

main90445-15046iNCZ2#200304-201104

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iNCZ2#200304

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×2iNCZ2#200304-200403

32921RCLIP, NO.2(FOR OIL COOLER HOSE)

main96135-51300×2iNCZ2#200304-200403

main96137-41501×2iNCZ2#200611-201104

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52040iNCZ2#200304-200508

main32922-52060iNCZ2#200508

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15044iNCZ2#200304-201104

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-20100iNCZ2#200304-200508

main32924-52010iNCZ2#200508-200608

main32924-52030iNCZ2#200609

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iNCZ2#200304-200706

main32926-22010iNCZ2#200707

91611B0614

main91611-B0614

9167180616

main91671-80616

12 parts on this diagram · 1 diagram in section
