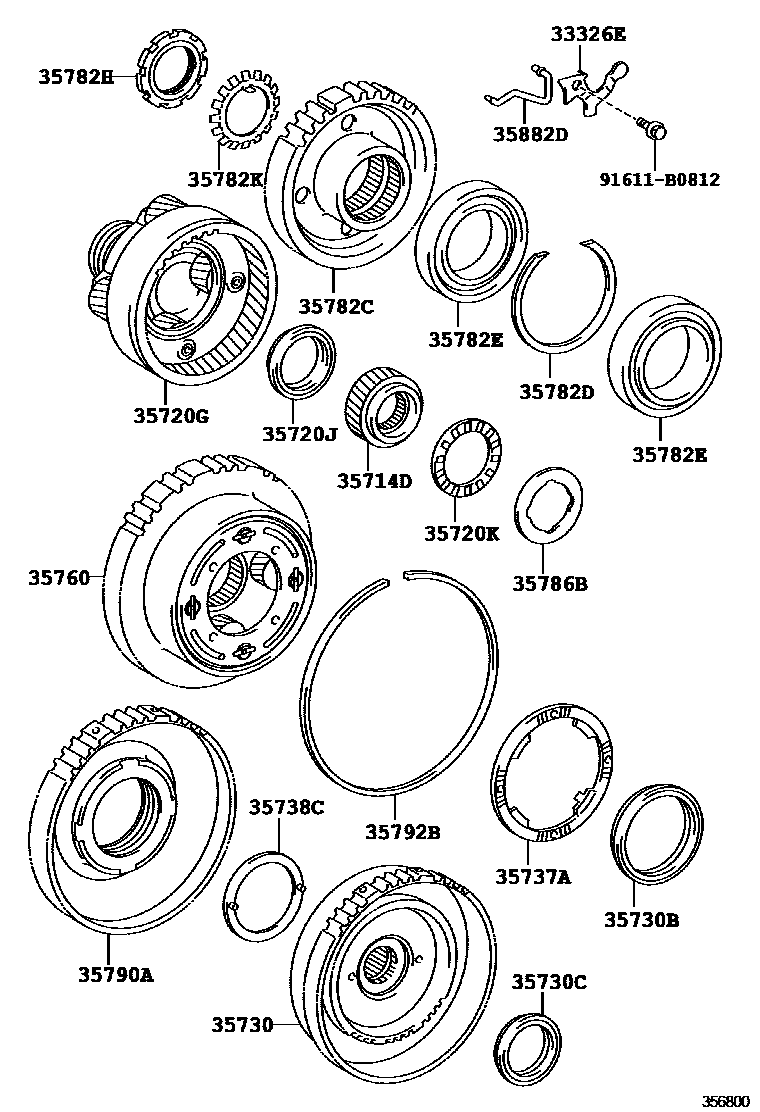

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

33326EPLATE, BEARING LOCK

main33326-52010iNCZ2#200304

35714DGEAR, FR PLANETARY SUN

main35714-52020iNCZ2#200304

35720GGEAR ASSY, PLANETARY

main35720-52020iNCZ2#200304-200508

sub35720-52021

main35720-52021iNCZ2#200508-201101

sub35720-52022

main35720-52022iNCZ2#201101-201103

35720JBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR FRONT)

main90374-33006iNCZ2#200304

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-33007iNCZ2#200304

35730GEAR ASSY, REAR PLANETARY SUN

main35730-52020iNCZ2#200304

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-43003iNCZ2#200304

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-29002iNCZ2#200304

35737AWASHER, PLANETARY CARRIER THRUST, NO.1

main35737-52020iNCZ2#200304

35738CWASHER, PLANETARY CARRIER THRUST, NO.2

main35738-52010iNCZ2#200304

35760GEAR ASSY, REAR PLANETARY

main35760-52010iNCZ2#200304-200508

sub35760-52011

main35760-52011iNCZ2#200508

35782CGEAR, COUNTER DRIVE

main35782-52020iNCZ2#200304

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-83001iNCZ2#200304

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90363-52002iNCZ2#200304-201104

sub90363-52005

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-40009iNCZ2#200304

35782KWASHER, LOCK(FOR COUNTER DRIVE GEAR LOCK NUT)

main90215-40002iNCZ2#200304

35786BRACE, THRUST BEARING, NO.2

main35787-52010iNCZ2#200304

35790ACLUTCH ASSY, 1 WAY

main35790-52020iNCZ2#200304

35792BRING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)

main90520-99053iNCZ2#200304

35882DTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-52020iNCZ2#200304

91611B0812

main91611-B0812

21 parts on this diagram · 1 diagram in section
