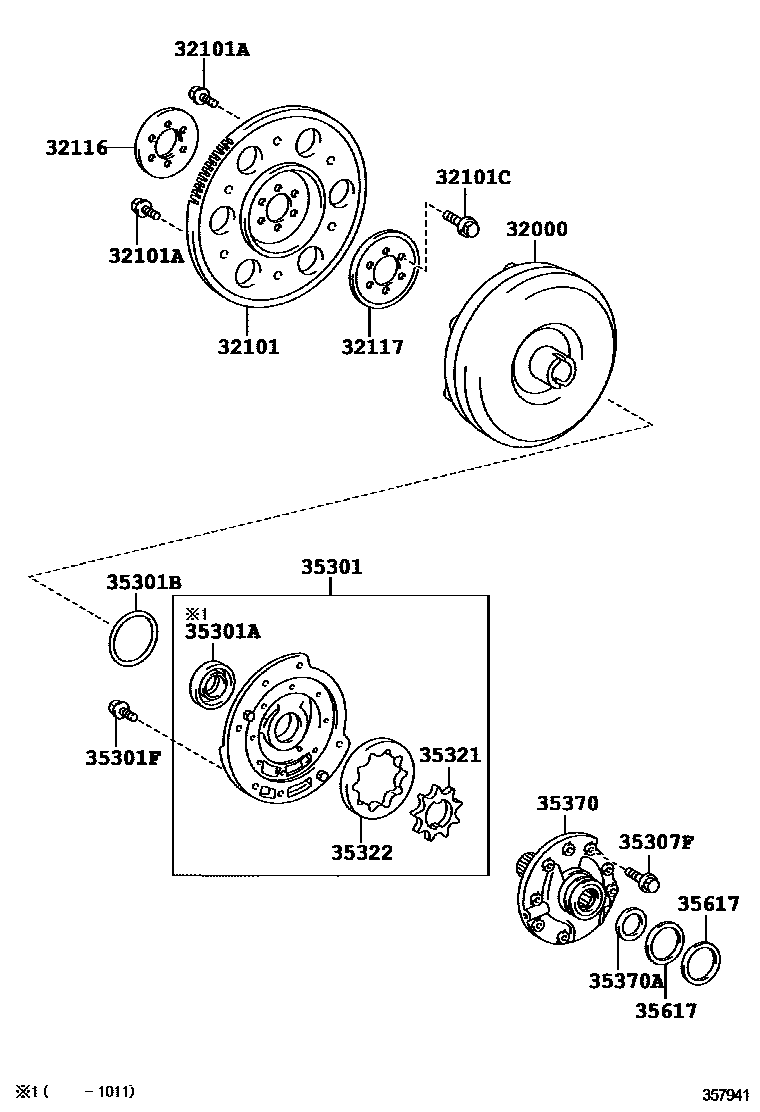

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-52040iNCZ2#200304-200612

sub32000-52041

main32000-52041iNCZ2#200612-201104

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-52021iNCZ2#200304

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iNCZ2#200304

main90119-08498iNCZ2#200304

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iNCZ2#200304

main90105-A0022iNCZ2#200304

32116SPACER, DRIVE PLATE, FRONT

main32116-52030iNCZ2#200304

32117SPACER, DRIVE PLATE, REAR

main32117-52030iNCZ2#200304

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-52040iNCZ2#200304

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iNCZ2#200304-201104

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99124iNCZ2#200304

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08301iNCZ2#200304

35307FBOLT (FOR STATOR SHAFT)

main90148-60027iNCZ2#200304

35321GEAR, FRONT OIL PUMP DRIVE

main35321-52060iNCZ2#200304

main35321-52070iNCZ2#200304

main35321-52080iNCZ2#200304

main35321-52090iNCZ2#200304

main35321-52100iNCZ2#200304

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-52060iNCZ2#200304

main35322-52070iNCZ2#200304

main35322-52080iNCZ2#200304

main35322-52090iNCZ2#200304

main35322-52100iNCZ2#200304

35370SHAFT ASSY, STATOR

main35370-52030iNCZ2#200304-200512

sub35370-52070

main35370-52070iNCZ2#200601

35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)

main90374-26003iNCZ2#200304

35617RING, CLUTCH DRUM OIL SEAL

main35613-52010iNCZ2#200304-200612

sub35613-52020

main35613-52020iNCZ2#200612

16 parts on this diagram · 1 diagram in section
