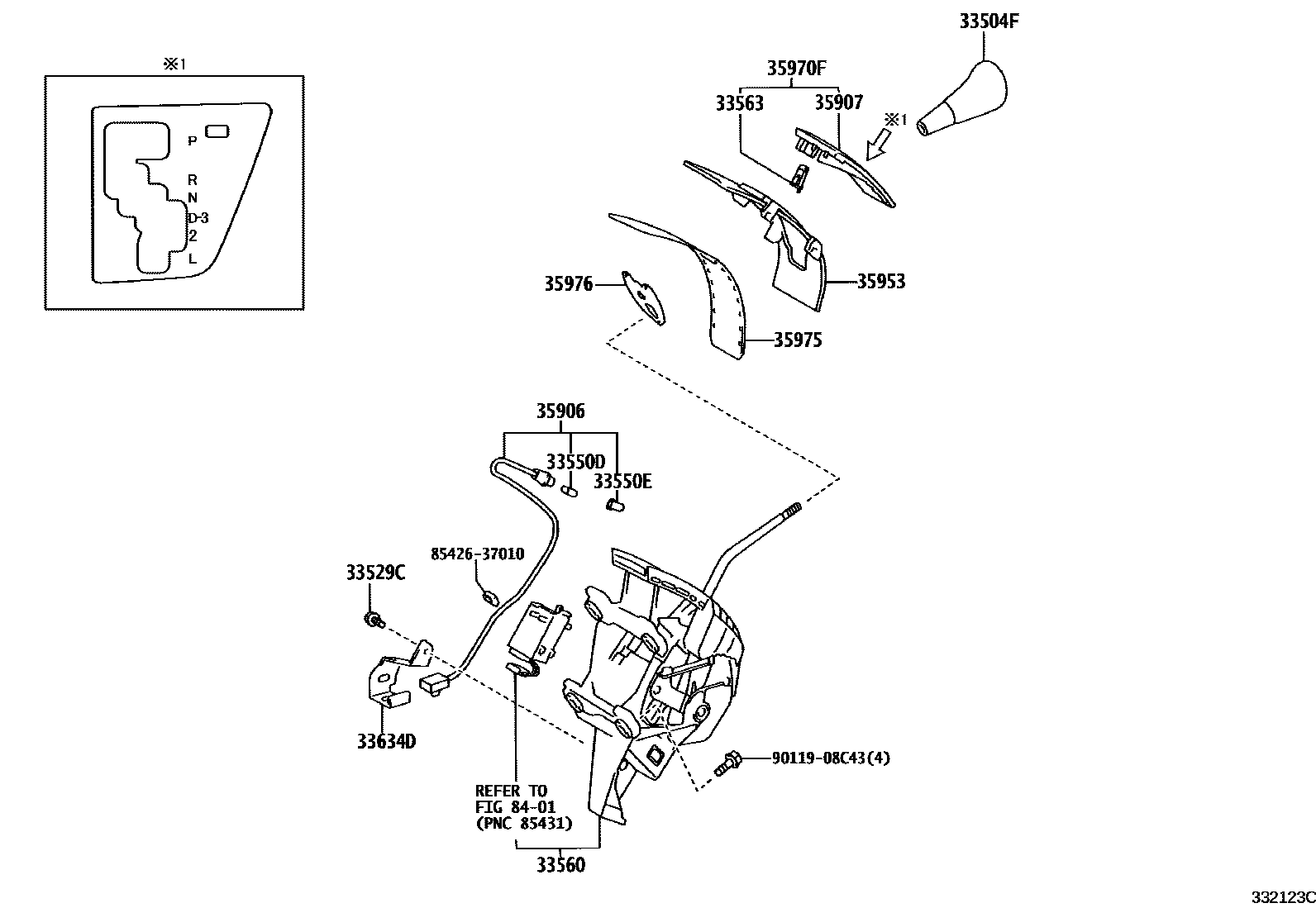

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-46010-C0iNCZ2#200304-201104

BLACK,TRIM1#

main33504-46010-E0iNCZ2#200304-201104

ORCHID BROWN,TRIM4#

33529CBOLT, SHIFT LEVER

main33529-52010iNCZ2#200304

33550DBULB, POSITION INDICATOR LAMP

main90981-11040iNCZ2#200304

33550ECAP, POSITION INDICATOR LAMP

main35956-58010iNCZ2#200304-201104

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-46010iNCZ2#200304-200309

sub33560-46011

sub35970-46011

main33560-46011iNCZ2#200309

33563BUTTON, SHIFT LOCK RELEASE

main33563-46010iNCZ2#200304-200611

33634DBRACKET, SHIFT LEVER HARNESS CONNECTOR

main33634-58010iNCZ2#200304

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-58010iNCZ2#200304

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-46010iNCZ2#200304-200309

sub35907-46011

main35907-46011iNCZ2#200309-200611

main35907-46020iNCZ2#200612

35953GUIDE, POSITION INDICATOR LIGHT

main35953-46010iNCZ2#200304

35970FHOUSING ASSY, POSITION INDICATOR

main35970-46010iNCZ2#200304-200309

sub35970-46011

main35970-46011iNCZ2#200309-200611

main35970-46020iNCZ2#200612-201104

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-58010iNCZ2#200304

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-58010iNCZ2#200304

8401

8542637010CLAMP, OVER DRIVE SOLENOID

main85426-37010

9011908C43

main90119-08C43

16 parts on this diagram · 2 diagrams in section
