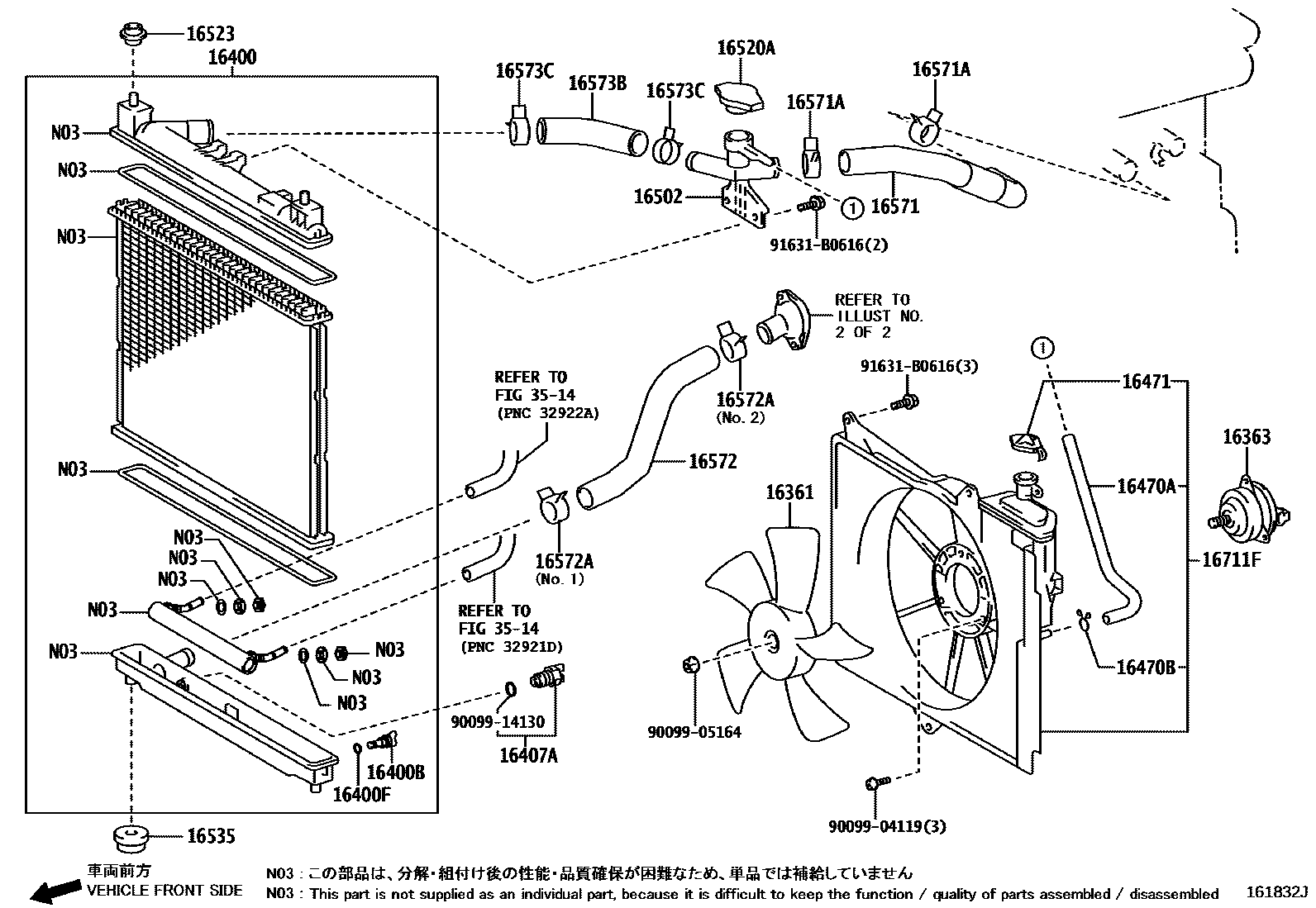

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16361FAN

main16361-21080i1NZFE..NCZ2#200304

16363MOTOR, COOLING FAN

main16363-23020i1NZFE..NCZ2#200304-200304

main16363-28150i1NZFE..NCZ2#200305

16400RADIATOR ASSY

main16400-21070i1NZFE..NCZ25200304-201104

sub16400-21071

main16400-21090i1NZFE..NCZ20200304-201104

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1NZFE..NCZ2#200304

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE..NCZ2#200304

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-7A130i1NZFE..NCZ2#200304

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21020i1NZFE..NCZ2#200512

main90445-12078i1NZFE..NCZ2#200304-200512

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZFE..NCZ2#200304

16471CAP SUB-ASSY, RESERVE TANK

main16471-23010i1NZFE..NCZ2#200304-200512

main16471-23030i1NZFE..NCZ2#200512

16502FILLER SUB-ASSY, WATER

main16502-21010i1NZFE..NCZ2#200304

16520ACAP SUB-ASSY, WATER FILLER

main16401-31480i1NZFE..NCZ2#200903

main16401-62100i1NZFE..NCZ2#200304-200902

sub16401-31520

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-23010×2i1NZFE..NCZ2#200304

16535SUPPORT, RADIATOR, LOWER

main90480-40016×2i1NZFE..NCZ2#200304

16571HOSE, RADIATOR, INLET

main16571-21020i1NZFE..NCZ2#200304

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33006×2i1NZFE..NCZ2#200304

16572HOSE, RADIATOR, OUTLET

main16572-21020i1NZFE..NCZ2#200304

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33006i1NZFE..NCZ2#200304

main90467-34004i1NZFE..NCZ2#200304

16573BHOSE, RADIATOR, NO.3

main16573-21010i1NZFE..NCZ2#200304

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006×2i1NZFE..NCZ2#200304

16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)

main16711-21030i1NZFE..NCZ2#200304-200512

main16711-21120i1NZFE..NCZ2#200512-200803

main16711-21121i1NZFE..NCZ2#200804-201104

3514

9009904119

main90099-04119

9009905164

main90099-05164

9009914130

main90099-14130

91631B0616

main91631-B0616

25 parts on this diagram · 3 diagrams in section
