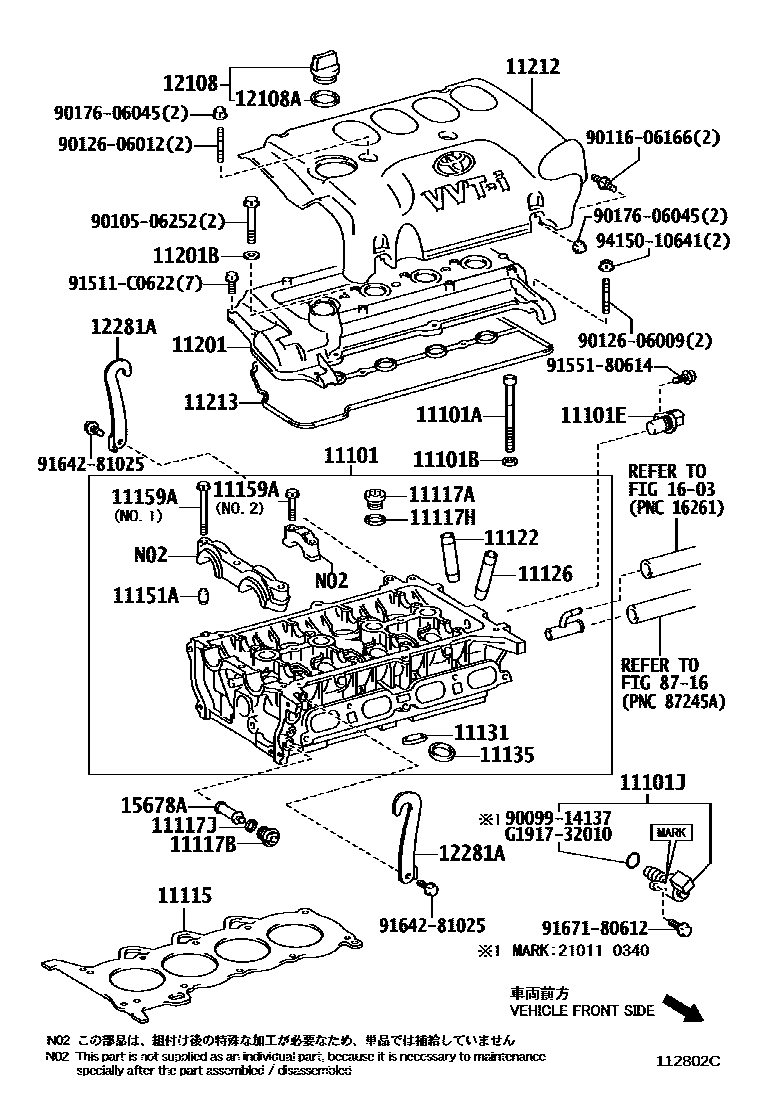

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-21034
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11117APLUG, W/HEAD TAPER SCREW, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
sub11201-21051
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
15678AFILTER, OIL CONTROL VALVE
1603
8716
9009914137
main90099-14137
9010506252
main90105-06252
9011606166
main90116-06166
9012606009
main90126-06009
9012606012
main90126-06012
9017606045
main90176-06045
91511C0622
main91511-C0622
9155180614
main91551-80614
9164281025
main91642-81025
9167180612
main91671-80612
9415010641
main94150-10641
G191732010
mainG1917-32010
38 parts on this diagram · 1 diagram in section
