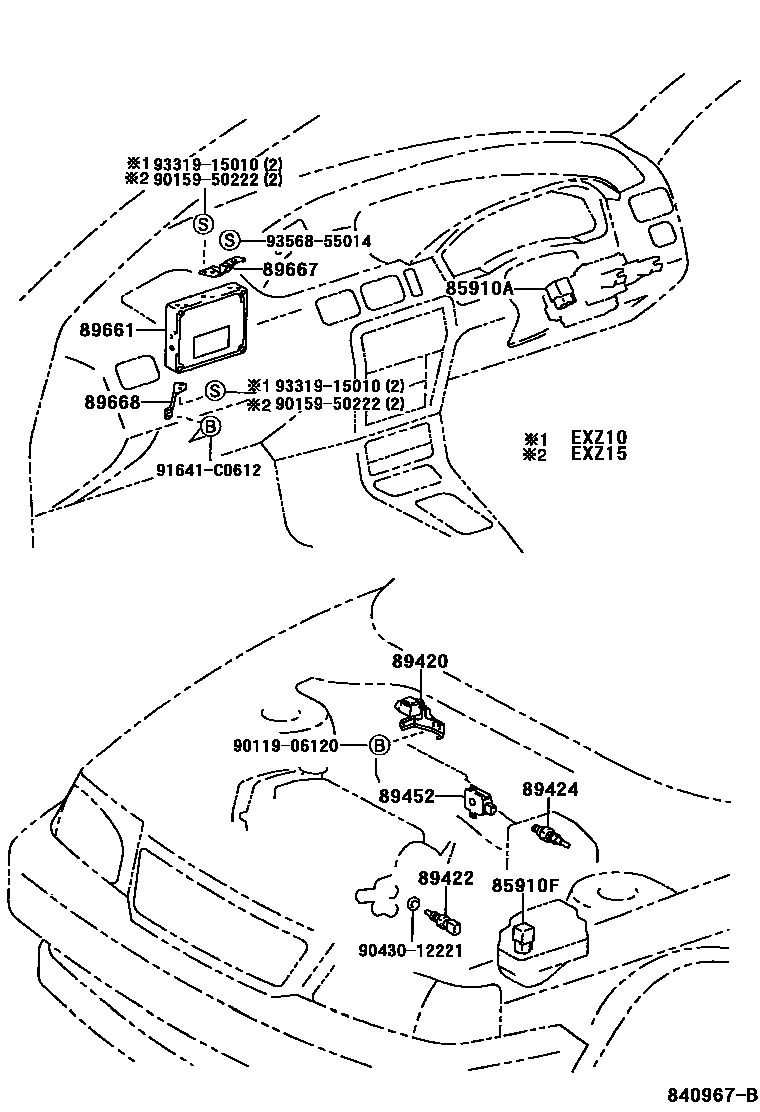

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iEXZ1#199705

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iEXZ1#199705

89420SENSOR ASSY, VACUUM

main89420-46010iEXZ1#199705

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iEXZ1#199705

main89422-22030iEXZ1#199705

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iEXZ1#199705

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-10040iEXZ1#199705-199807

main89452-20130iEXZ1#199807

89661COMPUTER, ENGINE CONTROL

main89661-46010iEXZ1#199705-200204

main89661-46020iEXZ10200204

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-16050iEXZ1#199705

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-46010iEXZ1#199705

9011906120

main90119-06120

9015950222

main90159-50222

9043012221

main90430-12221

91641C0612

main91641-C0612

9331915010

main93319-15010

9356855014

main93568-55014

15 parts on this diagram · 1 diagram in section
