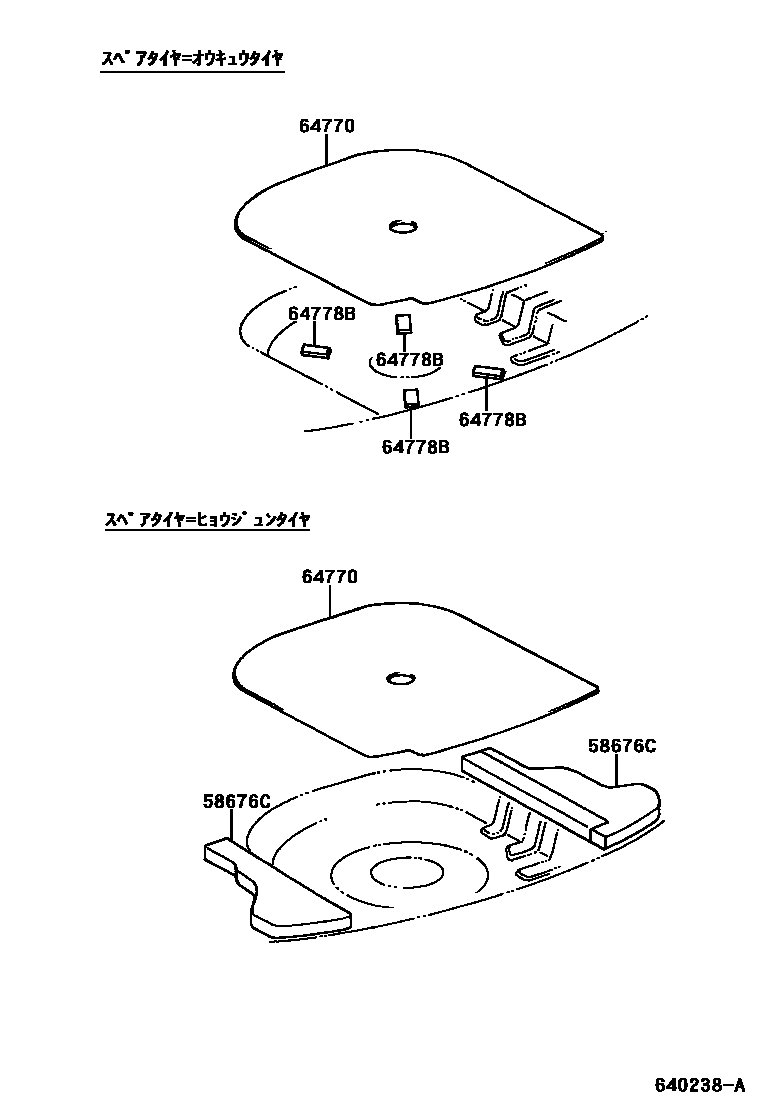

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58676CPAD, REAR FLOOR SILENCER

main58676-46010iEXZ1#..PB,SEPA199705

main58676-46020iEXZ1#..PB,SEPA199705

main58676-46030iEXZ15199708

main58676-46040iEXZ15199708

main58677-46010iEXZ15199708

64770COVER ASSY, SPARE WHEEL

main64770-46010iEXZ10199705-199808

main64770-46011iEXZ10..PB,SEPA199808

main64770-46020iEXZ10..PB,SEPA199705

main64770-46030iEXZ15199708

main64770-46040iEXZ15199708

64778BPROTECTOR, SPARE WHEEL

main64778-16030×4iEXZ10199705

3 parts on this diagram · 2 diagrams in section
