MAT & CARPET

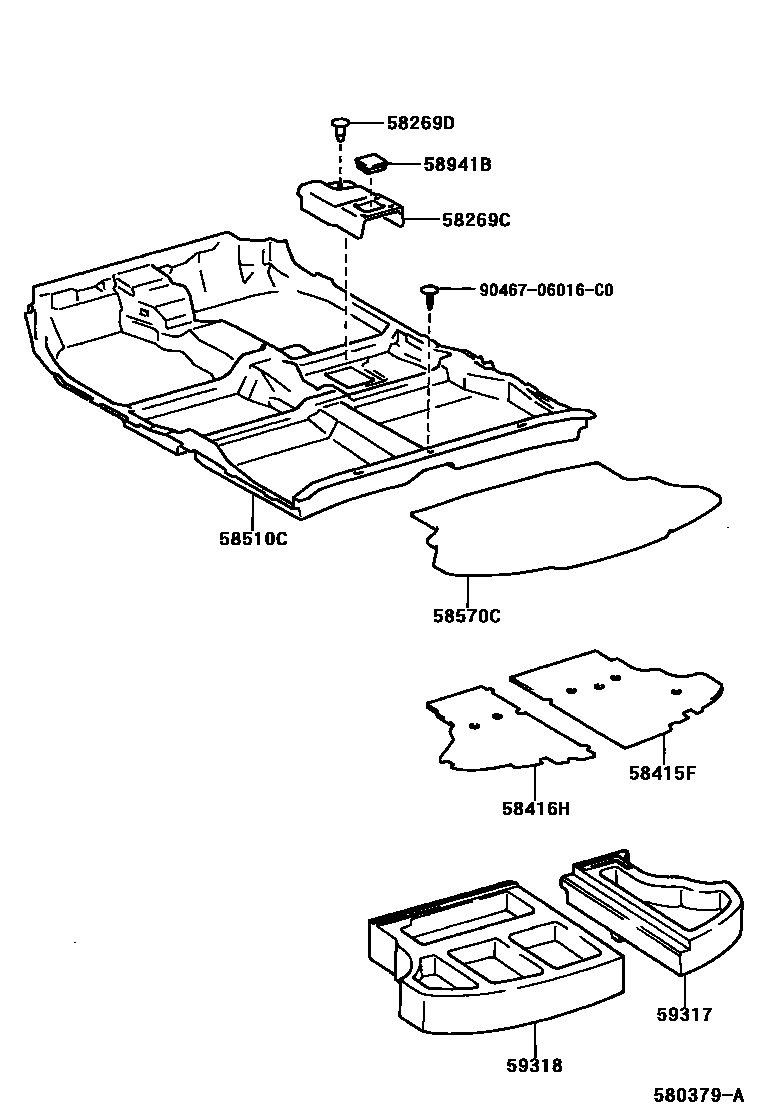

Parts diagram
58269CCOVER, PARKING BRAKE CABLE
main58269-46010-A0i199907
main58269-46010-B1i199705-199907
BLUE GRAY,TRIM1#
main58269-46010-B2i199907
main58269-46020-A0i199907
main58269-46020-B1i199708-199907
BLUE GRAY,TRIM1#
main58269-46020-B2i199907
58269DCLIP, PARKING BRAKE CABLE COVER
main90467-08144-A0×3i199907
main90467-08144-B2×3i199705-199907
BLUE GRAY,TRIM1#
main90467-08144-B3×3i199907
58415FBOARD, REAR FLOOR, NO.1
main58415-46010i199808
58416HBOARD, REAR FLOOR, NO.2
main58416-46010i199808
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-46010-B0i199705-199802
MEDIUM GRAY,TRIM1#
main58510-46011-B0i199803-199907
MEDIUM GRAY,TRIM1#
main58510-46011-B1i199907
main58510-46020-B0i199705-199802
main58510-46021-B0i199803-199907
main58510-46021-B1i199907
main58510-46030-B0i199708-199803
MEDIUM GRAY,TRIM1#
main58510-46031-B0i199803-199907
MEDIUM GRAY,TRIM1#
main58510-46031-B1i199907
main58510-46040-B0i199708-199803
main58510-46041-B0i199803-199907
main58510-46041-B1i199907
main58510-46050-B0i199907-200204
main58510-46060-B0i199907-200204
main58510-46070-A1i199907
main58510-46080-A1i199907
main58510-46090-A1i199907
main58510-46100-A1i199907
58570CCARPET ASSY, REAR FLOOR
main58570-46010-B1i199907-200204
DARK GRAY,TRIM1#
main58571-46010-B0i199705-199907
MEDIUM MOON MIST,TRIM1#
main58571-46010-B2i199907
DARK GRAY,TRIM1#
main58571-46040-B0i199708-199907
main58571-46040-B2i199907
main58571-46050-B0i199708-199907
MEDIUM MOON MIST,TRIM1#
main58571-46050-B2i199907
DARK GRAY,TRIM1#
main58571-46060-B0i199808-199907
main58571-46060-B2i199907
58941BCOVER, PARKING BRAKE HOLE
main58941-46010-A0i199907
main58941-46010-B1i199705-199907
BLUE GRAY,TRIM1#
main58941-46010-B2i199907
59317PANEL, REAR FLOOR BOX SIDE, RH
main59317-46010i199808
59318PANEL, REAR FLOOR BOX SIDE, LH
main59318-46010i199808
main59318-46020i199808
9046706016C0
main90467-06016C0

10 parts on this diagram · 2 diagrams in section
